Appendix F PTP Probe Option
Provisioning the Probe
Use the following CLI procedure in Table F-6 to configure the TimeProvider 5000
MGMT port IP parameters (Host Address, Subnet Mask, and Gateway Address).
Use the dot-decimal notation format xxx.xxx.xxx.xxx to enter the address
parameter. Use the TimeMonitor PDV procedure in Table F-6 to enter the IP
address that TimeMonitor PDV will use to connect to the MGMT port..
Table F-6. Set MGMT Port IP Address Procedures
TimeMonitor PDV CLI Command
This procedure describes how to enter the IP
address that TimeMonitor PDV will use to
connect to the MGMT port.

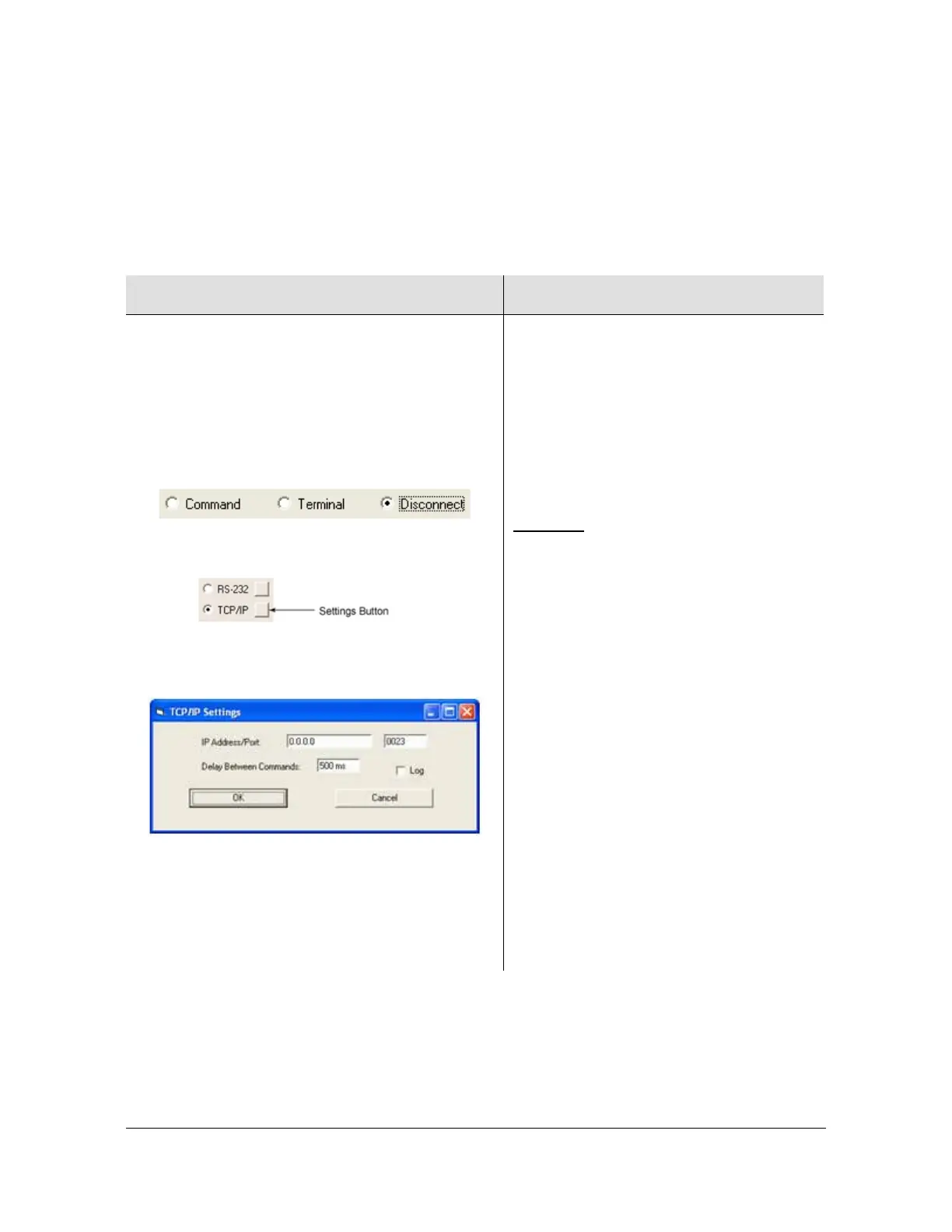

1. Click on the Disconnect radio button to put
TimeMonitor PDV into the proper mode for
making MGMT port changes.
2. Click on the TCP/IP radio button.
3. Click on the button on the right side of “TCP/IP”
to bring up the TCP/IP Settings dialog box.
4. Enter the IP Address that was set with CLI
commands and the Port number.
5. Click the OK button to return to the main
screen.
This procedure describes how to set the
IP address for the MGMT port on the
Probe.
Use the command:
set ip IMC address <addr_value>
netmask <mask_value> gateway
<gateway value>
Example:
For following settings on IMC:
Address = 192.168.2.10
Netmask = 255.255.255.0
Gateway = 192.168.2.1
1. Login at the Admin or Config-user
level.
2. Type set ip-mode imc static
and press Enter.
3. Type set ip imc
address 192.168.0.10
netmask 255.255.255.0
gateway 192.168.0.1
and press Enter.
4. Type set ip imc restart.
NOTE: The IMC card must be
restarted to implement the IP
address change
