Chapter 1 Overview
TimeProvider 5000 Connections
Power and Ground Connections
The TimeProvider 5000 uses –48 VDC power and is not equipped with a Power
switch; DC power is controlled by a power distribution panel connected to the power
connectors. Frame ground connections on the TP 5000 are made on the grounding
stud located on the left side of the front panel, as identified with the international
Ground marking, as shown in Figure 1-8. Frame ground connections on the TP E10
and TP E30 expansion shelves are made on the grounding stud located on the right
side of the front panel (see Figure 1-9 and Figure 1-10).

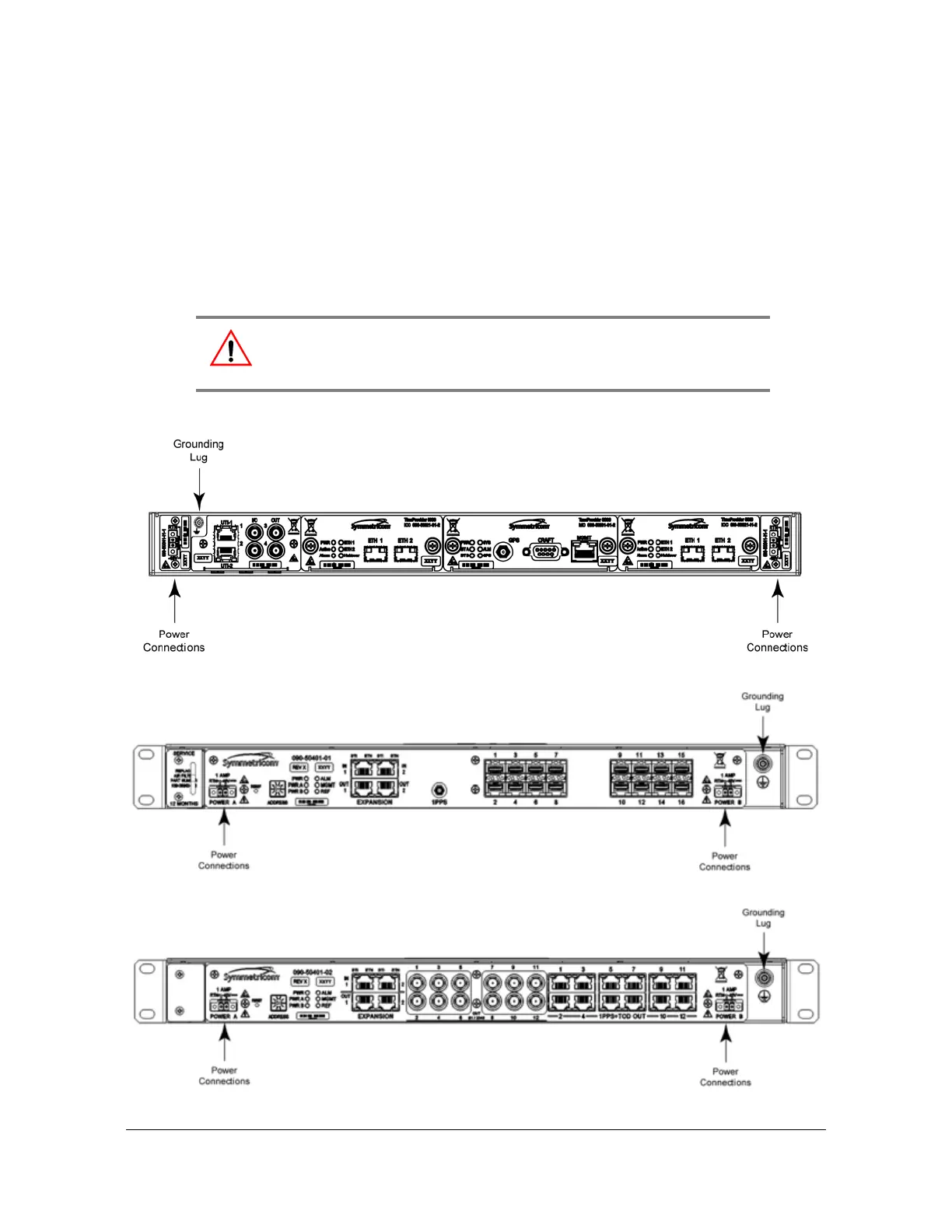

Figure 1-8. TimeProvider 5000 Power and Ground
Figure 1-9. TimeProvider E10 Power amd Ground
Figure 1-10. TimeProvider E30 Power and Ground
Warning: To avoid serious personal injury or death, exercise caution
when working near high voltage lines and follow local building
electrical codes for grounding the chassis.
