Symmetricom TimeProvider 5000 User Manual

36 TimeProvider 5000 User’s Guide 098-00028-000 Revision F – May, 2012
Chapter 1 Overview
TimeProvider 5000 Connections

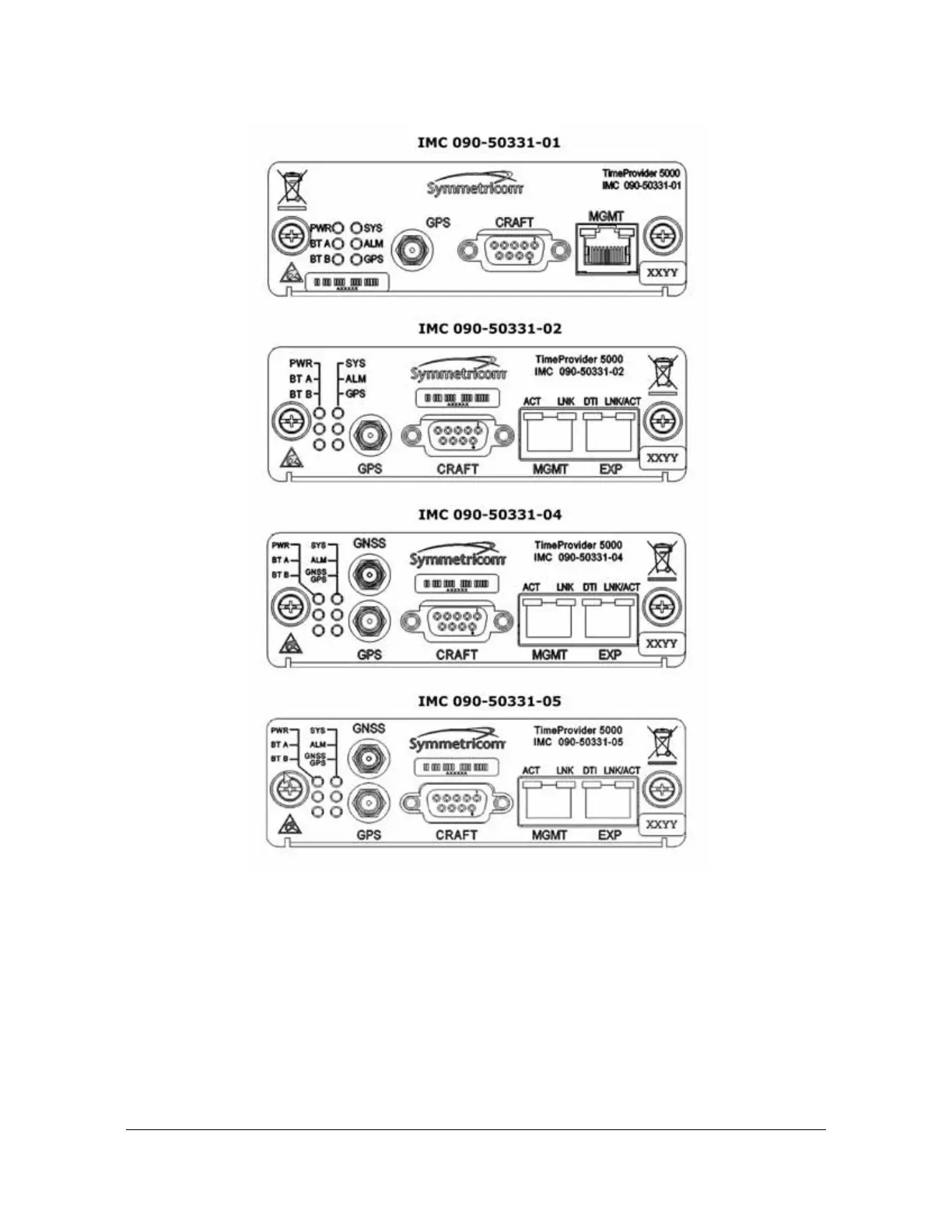

Figure 1-3. IMC Module: Versions -01 through -05
EIA-232 Serial (Craft) Port
The EIA-232 serial port connection is made through a EIA-23 female connector on
the IMC. This port allow you to connect to a terminal or computer using a terminal
emulation software package. When connecting to this port, use a shielded EIA-232
direct connect cable.

Symmetricom TimeProvider 5000 Specifications

General

Brand	Symmetricom
Model	TimeProvider 5000
Category	Server
Language	English
