Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 499
Appendix F PTP Probe Option
Installing the Probe

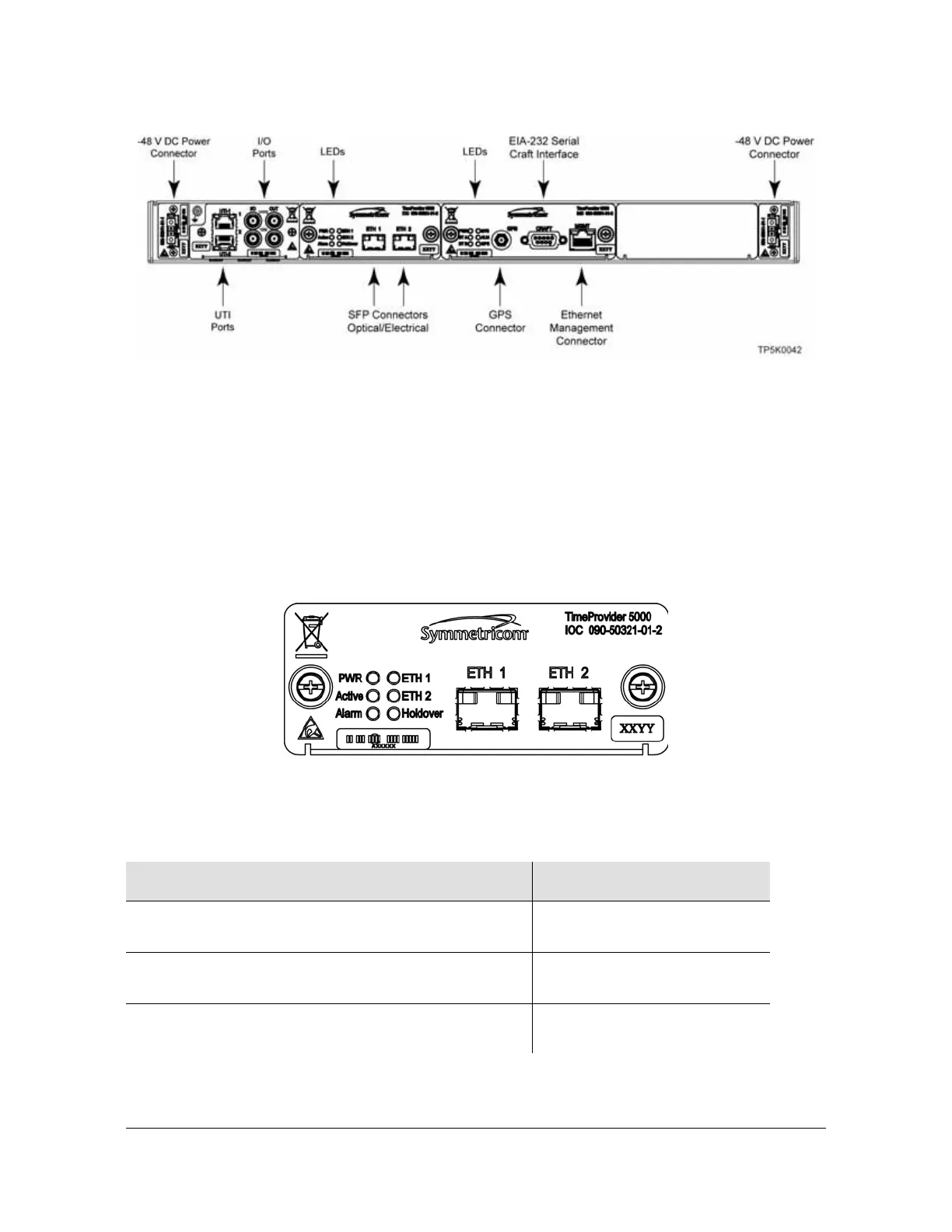

Figure F-3. TP 5000 PTP Probe Connectors and LEDs
Connecting PTP Signals to Measure
The two Ethernet 100/1000 Small-form Factor Pluggable (SFP) connections on the
IOC module provide PTP inputs to the TP 5000 Probe. See Figure F-4. It is possible
to monitor two different subnets, one on each port. Only the SFP transceivers in
Table F-1 are recommended and supported. Other SFP transceivers are not
supported and may cause the TimeProvider 5000 to not comply with regulatory
requirements.
Figure F-4. Probe Input Connections - IOC Module
.
Use the following procedure to make the connections for PTP measurements:
Table F-1. Recommended and Supported SFP Transceivers
Type Transceiver
Optical 1000 Base-LX Single-Mode Ethernet 1310nm
(Symmetricom 121-20621-10-2)
Avago AFCT-5701PZ
Finisar FTLF1319P1BTL
Optical 1000 Base-SX Multi-Mode Ethernet 850nm
(Symmetricom 121-20621-11-2)
Avago AFBR-5710PZ
Finisar FTLF8519P2BNL
RJ45 100/1000 Base-T Full-Duplex
(Symmetricom 121-20621-12-2)
Avago ABCU-5710RZ
