434 TimeProvider 5000 Users Guide 098-00028-000 Revision F – May, 2012
Appendix B Specifications and Factory Defaults
Specifications

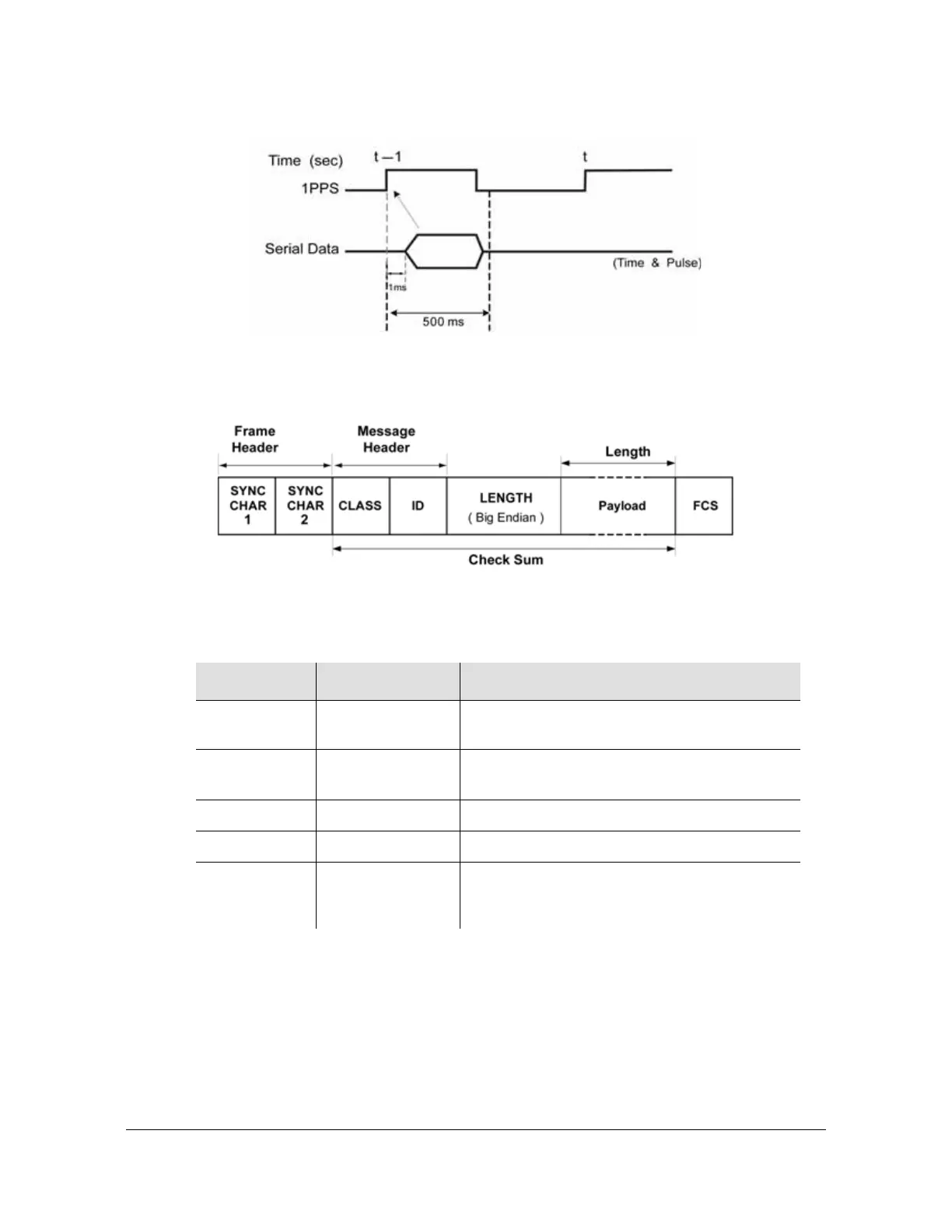

Figure B-1. TP 5000 - Timing Relationship Between 1PPS and TOD for 1 PPS+ TOD Input
Figure B-2. TP 5000 - TOD Frame Structure for 1 PPS+ TOD Input
Table B-8. TP 5000 - TOD Frame Field Descriptions for 1PPS +TOD Input
Field Name Field Length Description
Sync Char 1 1 byte Part of Frame Header
0x43 = ASCII character “C”
Sync Char 2 1 byte Part of Frame Header
0x4D = ASCII character “M”
Class 1 byte Basic classification of TOD message
ID 1 byte Serial number of of TOD message
Length 2 bytes Length of payload only
(Does not include Frame Header, Message Header,
Length Field itself, or FCS)
