72 TimeProvider 5000 User’s Guide 098-00028-000 Revision F – May, 2012
Chapter 2 Installing
Signal Connections
 The 090-50311-01, 090-50312-01, and 090-50315-01 (see Figure 2-18) versions
of the I/O module have two programmable E1 input/output connections, while the
090-50314-01 (see Figure 2-19) version of the I/O module has two
programmable T1 input/output connections.
 The 090-50311-01 version of the I/O module has two dedicated E1 output
connections, while the 090-50312-01 (see Figure 2-18) and 090-50314-01 (see
Figure 2-19) versions of the I/O module have two dedicated output connections,
10MHz and 1PPS.
GPS Connections
To connect a GPS signal, you must install a GPS antenna. See Connecting the
GPS/GNSS Antenna, on page 83. Also see Working With Modules, on page 67 for
module installation instructions.
GNSS Connections
To connect a GNSS signal, you must install a Beidou or GPS antenna. See
Connecting the GPS/GNSS Antenna, on page 83. Also see Working With Modules,
on page 67 for module installation instructions.
PTP / NTP Connections
The two Ethernet 100/1000 Small-form Factor Pluggable (SFP) connections on
each IOC provide redundant PTP outputs. See Figure 2-16.

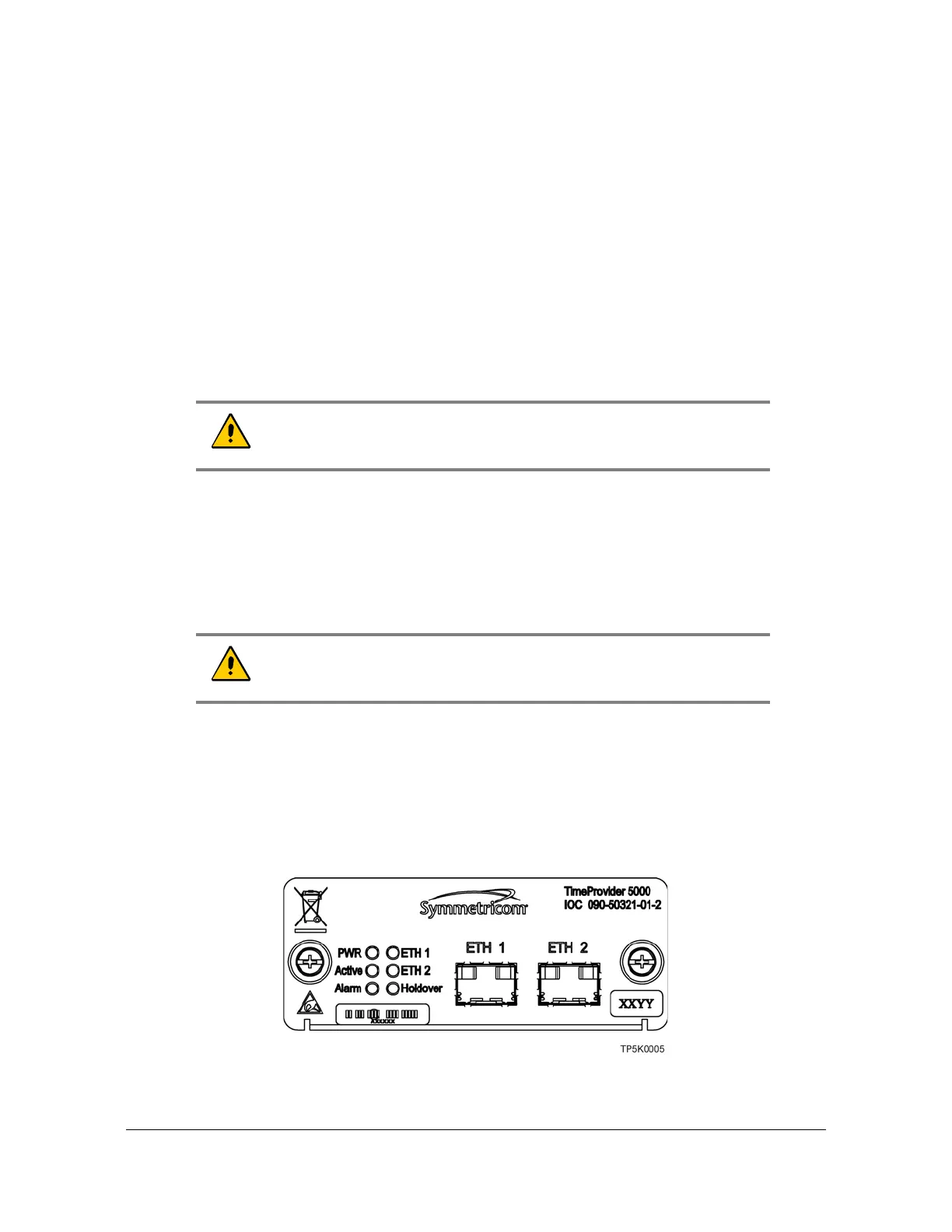

Figure 2-16. PTP Output Connections
Caution: The GPS cable should only be connected while the unit is
properly Earth grounded.
Caution: The GNSS cable should only be connected while the unit is
properly Earth grounded.
