Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 521
Appendix F PTP Probe Option
Probe Data

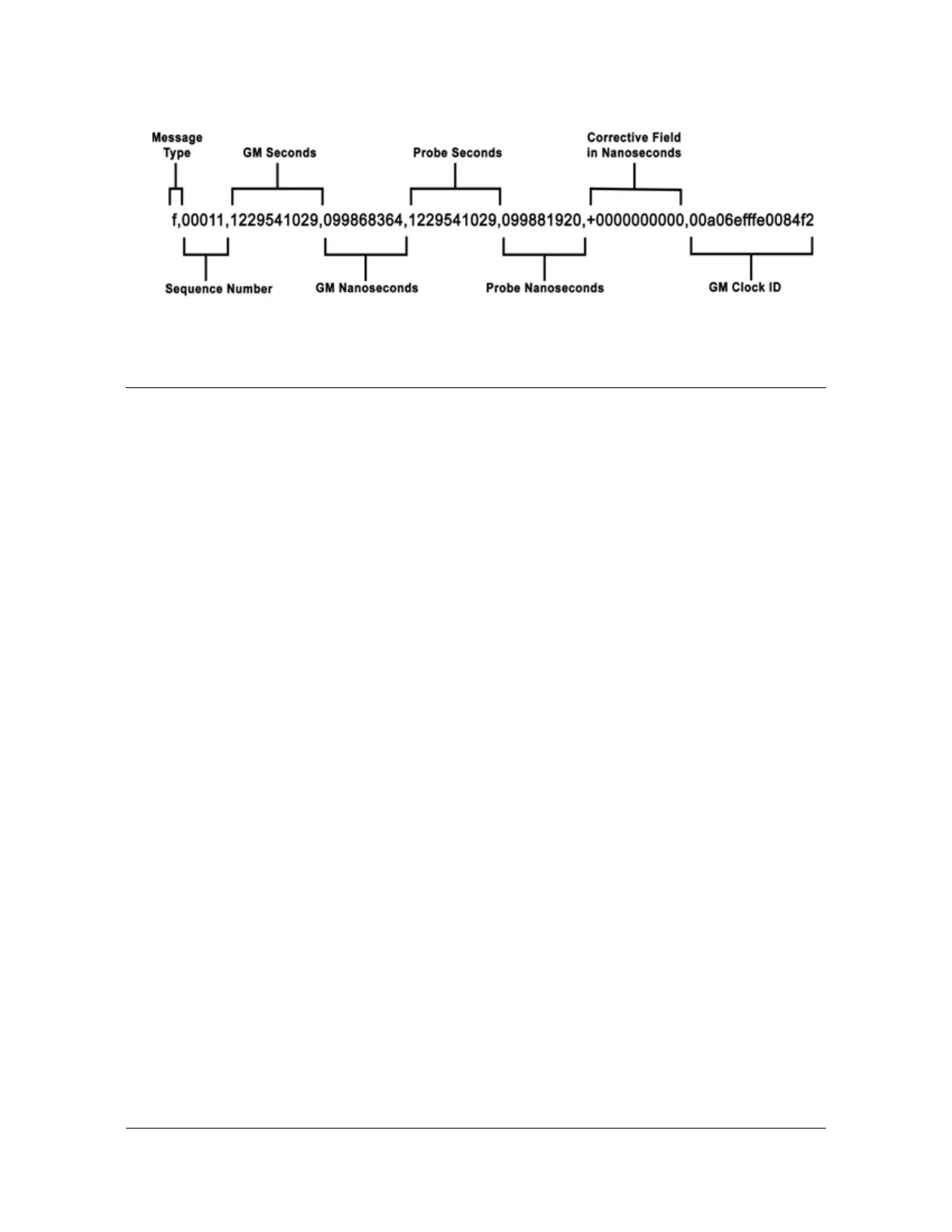

Figure F-10. Anatomy of a Probe Message
Probe Data
Probe data includes the following information:
 Message Type
 Sequence Number
 GM seconds
 GM nanoseconds
 Probe seconds
 Probe nanoseconds
 Correction field in nanoseconds
 GM Clock ID
See Figure F-10 for a description of the anatomy of a probe message. See Table
F-12 and Table F-13 for descriptions of message types and message parameters.
See below for a typical stream of Probe data.
