098-00028-000 Revision F – May, 2012 TimeProvider 5000 Users Guide 85
Chapter 2 Installing
Making Ground and Power Connections
Ground Connections
Frame ground connections are made using the M4 Grounding Terminal Stud, which
is marked with the universal ground symbol, as shown in Figure 2-30. This stud is
located on the left side of the front panel for the TP 5000, and on the right side of the
front panel for the TP E10 and TP E30.

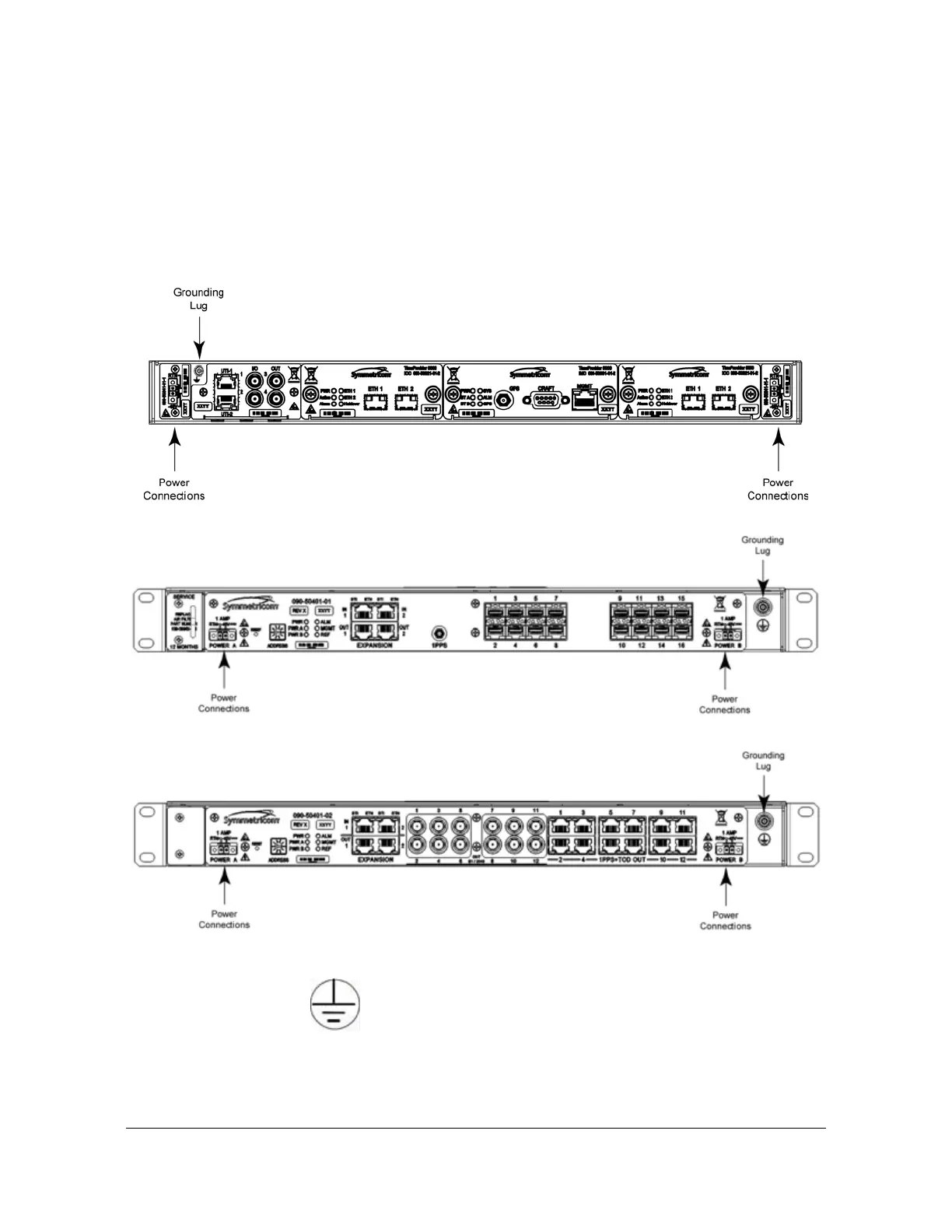

Figure 2-27. TimeProvider 5000 Power Connections
Figure 2-28. TimeProvider E10 Power Connections
Figure 2-29. TimeProvider E30 Power Connections
Figure 2-30. Universal Ground Symbol
