Appendix F PTP Probe Option
Controlling the Probe With TimeMonitor PDV
 Analyze a probe data file using packetTDEV and packetZTIE, and give a pass/fail
indication using built-in masks.
When TimeMonitor PDV is launched, the main screen will appear.
Anatomy of the GUI Main Screen
The GUI main screen for TimeMonitor PDV is shown in Figure F-6, with numeric
markers at the various buttons, fields and boxes. Descriptions for these buttons fields
and boxes, corresponding to the numerical markers, are presented in Table F-2.
All examples for provisioning and operating the Probe will include instructions for both
TimeMonitor PDV and CLI.

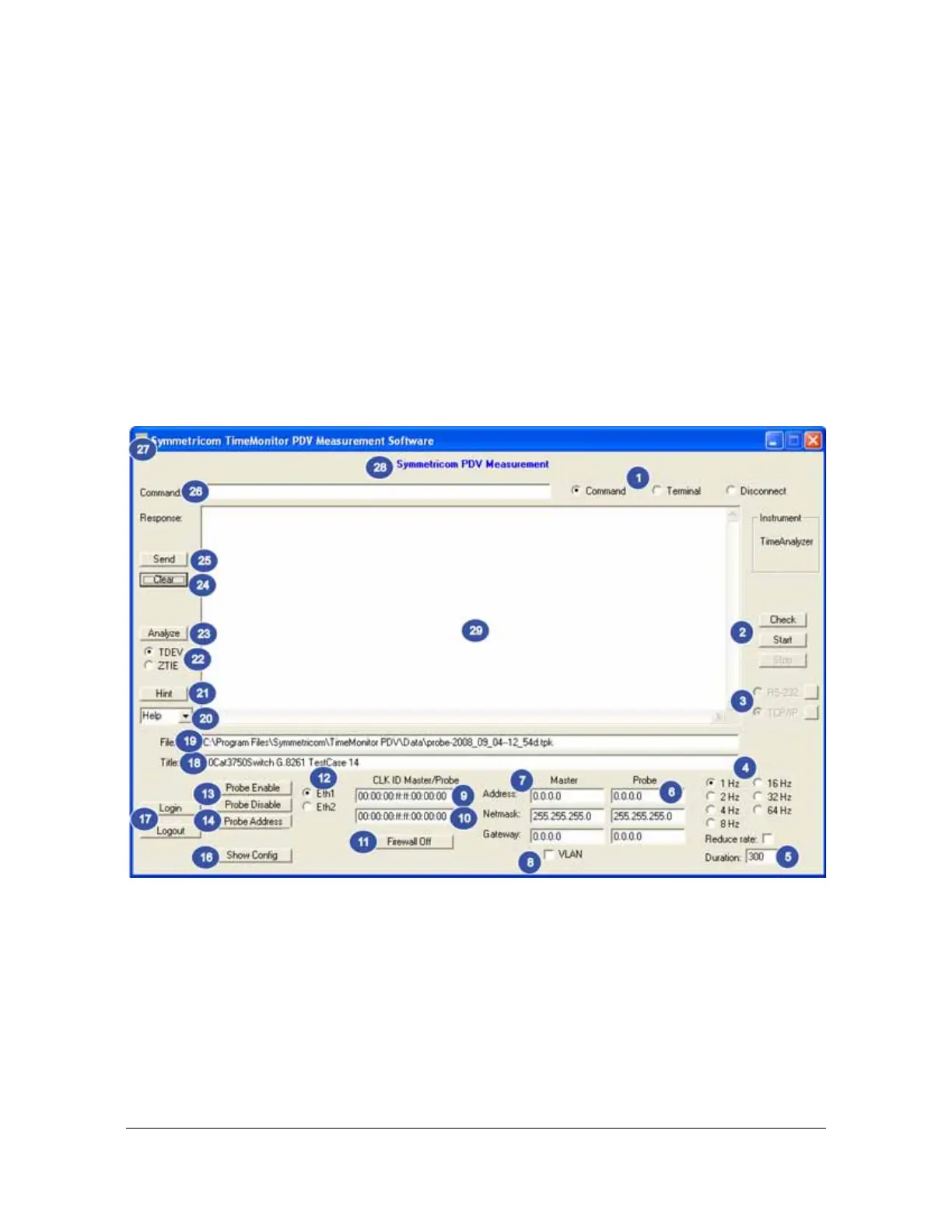

Figure F-6. TimeMonitor PDV GUI  Main Screen
