Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 69
Chapter 2 Installing
Signal Connections
Communications Connections
The IMC allows user control of the TimeProvider 5000. The EIA-232 serial port and
Ethernet Management port are located on the IMC as shown in Figure 2-14. See
Working With Modules, on page 67 for module installation instructions.

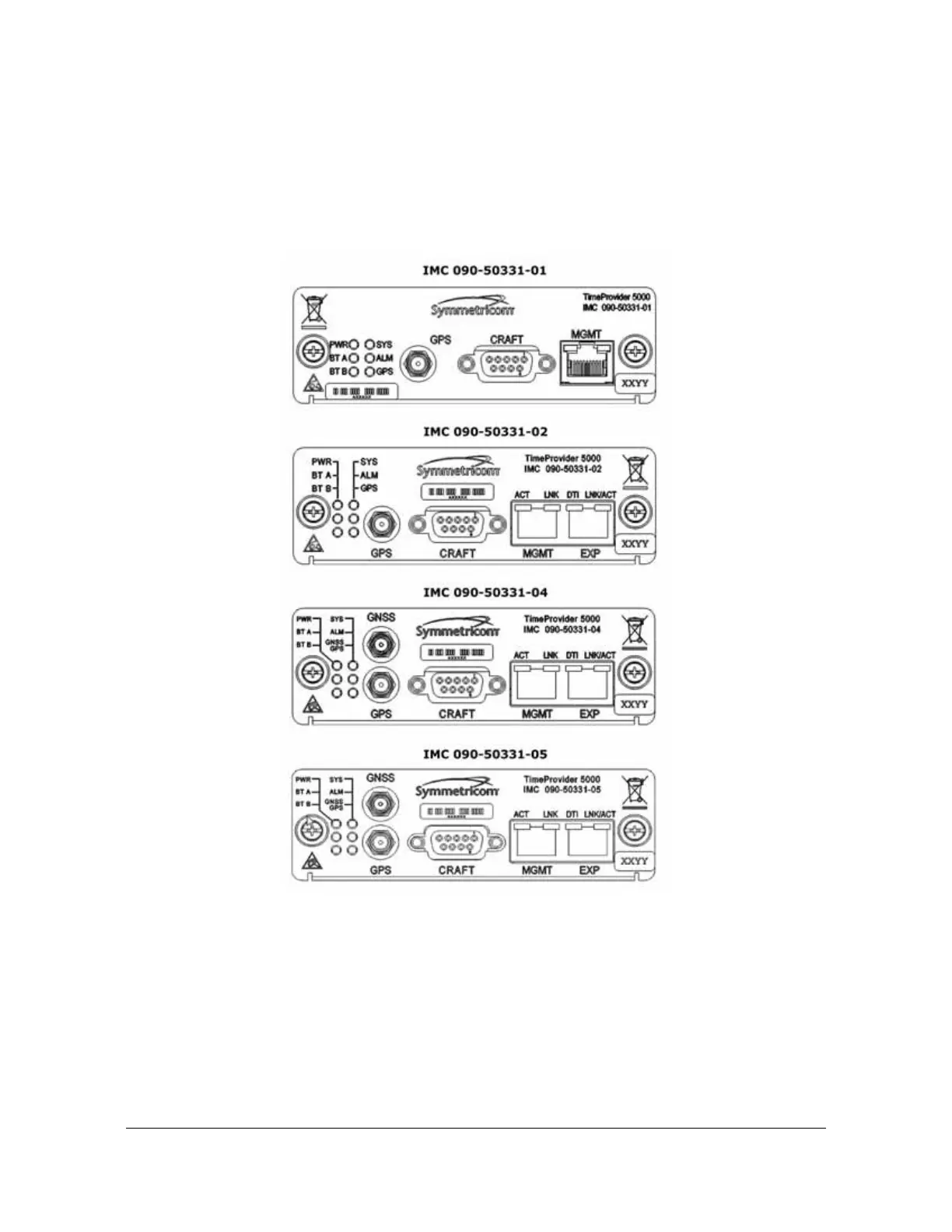

Figure 2-14. IMC Module Versions -01 through -05
System Management (MGMT) Port
The System Management port is standard 10/100Base-T shielded RJ-45
receptacle. To connect the TimeProvider 5000 to an Ethernet network, use an
Ethernet RJ-45 cable. See Table 2-1 for connector pinouts.
