82 TimeProvider 5000 Users Guide 098-00028-000 Revision F – May, 2012
Chapter 2 Installing
Signal Connections
TimeProvider E30 Synchronization and Timing Connections
TP E30 - E1 Connections
The TP E30 expansion shelf features 12 SMB output ports (see Figure 2-18). These
ports can provide the following signal types:
2.048 Mb/s (G.703/9, G.704)
2.048 MHz (G.703/13, G.704)

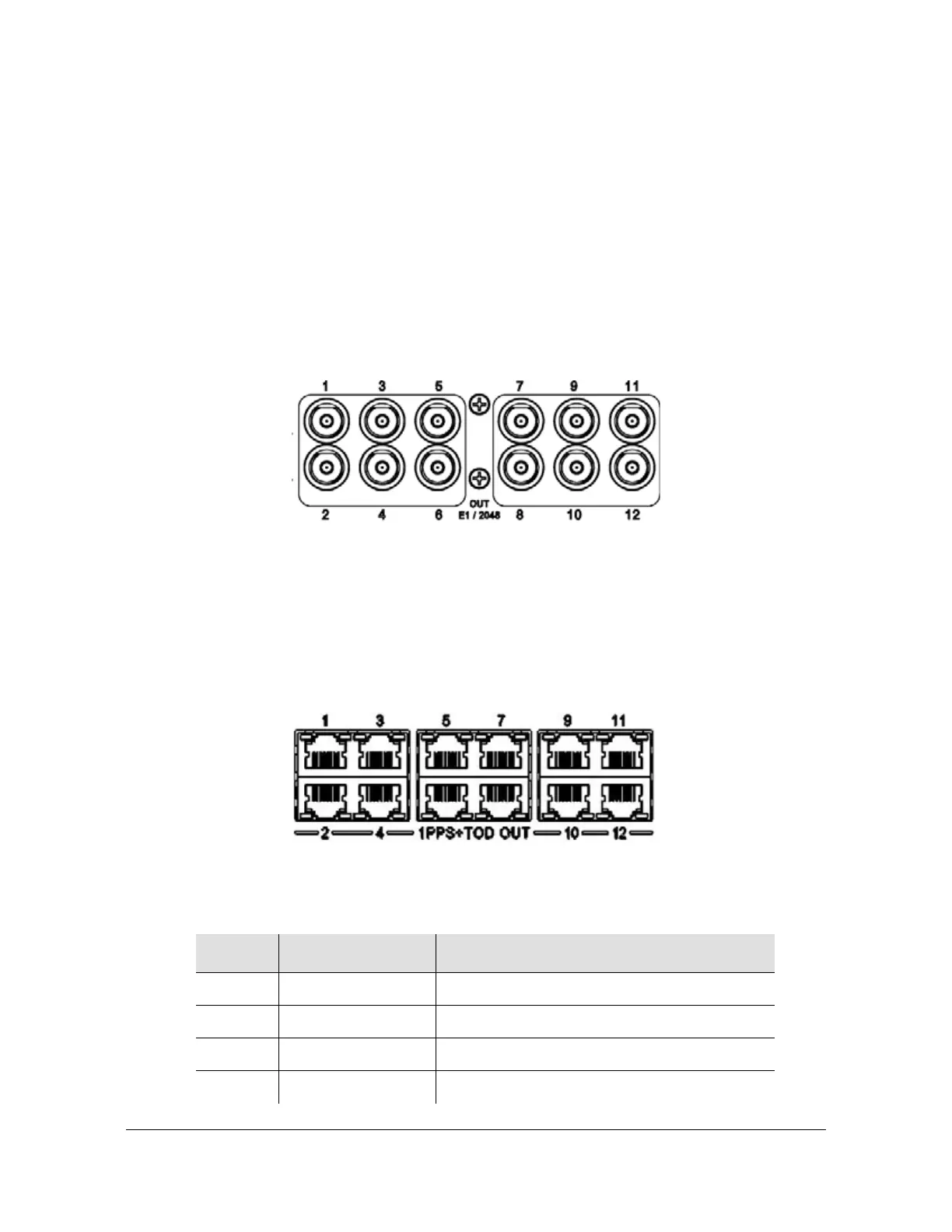

Figure 2-24. TP E30 - Output Connections for E1 Signals
TP E30 - 1PPS +TOD Connections
The TP E30 expansion shelf features 12 RJ-45 connectors, as shown in
Figure 2-18. See Table 2-5 for pin-outs for these RJ-45 connectors. See Table 2-11
for TOD default parameters.
Figure 2-25. TP E30 - Output Connections for 1PPS+TOD
Table 2-12. TP E30 - 1PPS+TOD Port Pin-Outs - RJ45 Connector
Pin Signal Comment
1 No Connection Default state is open (high impedence)
2 No Connection Default state is open (high impedence)
3 422_1_N 1PPS
4 GND RS422 GND
