332 TimeProvider 5000 User’s Guide 098-00028-000 Revision F – May, 2012
Chapter 4 Provisioning
Provisioning the Dedicated Outputs
Provisioning the 10MHz & 1PPS Outputs
The I/O module is also available with 1PPS and 10MHz dedicated output ports (p/n
090-50312-01 and 090-50314-01) rather than the dedicated E1 output ports (p/n
090-50311-01). The
set output-pps command is used to provision the 1 PPS
output. See Figure 4-26. The
set output-10m command is used to provision the
10MHz output. See Figure 4-27. These commands can also be used to provision
the behavior of the 10 MHz and 1PPS output ports during warm-up, free-run, and
holdover states,

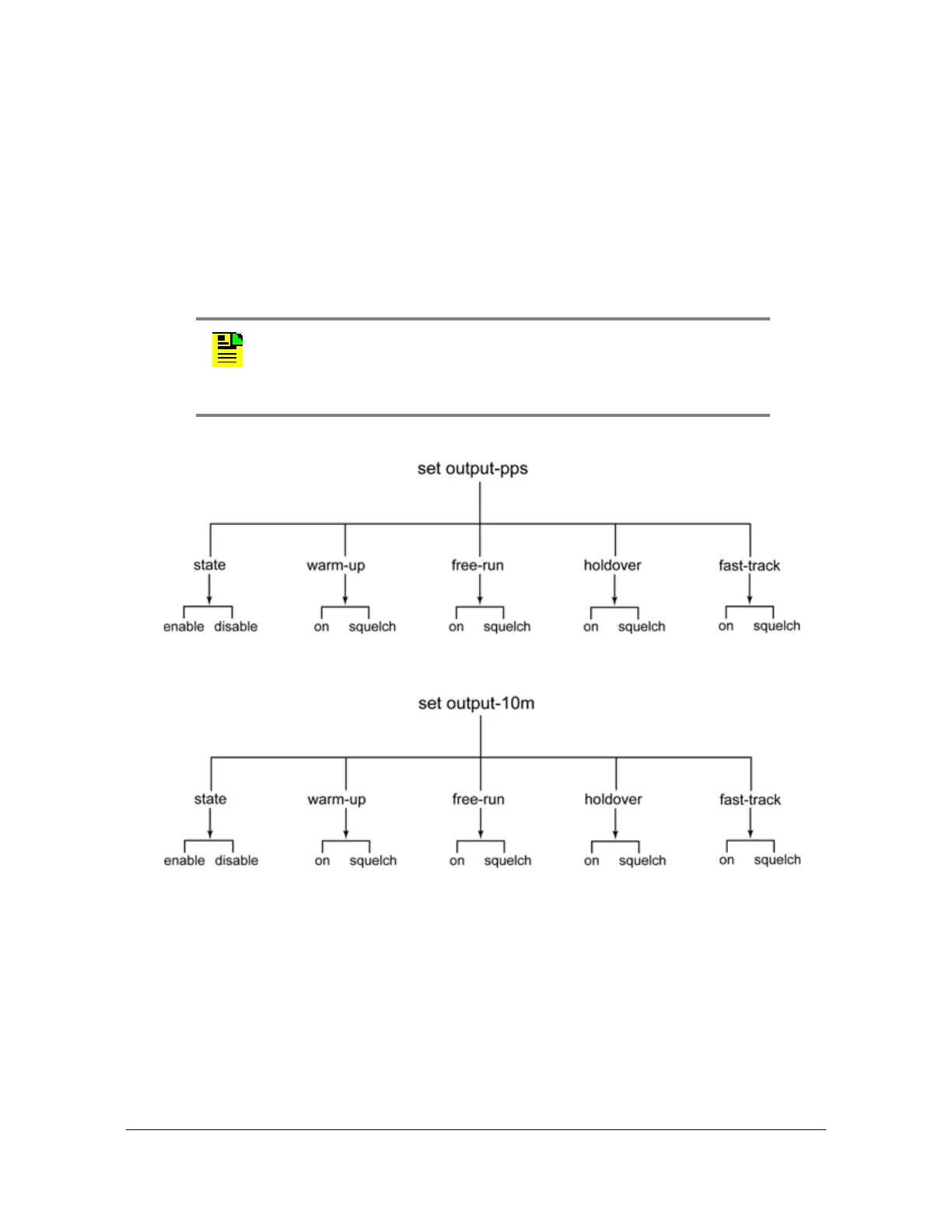

Figure 4-26. Set Output-PPS Commands
Figure 4-27. Set Output-10M Commands
Provisioning 1PPS Port
To enable the 1PPS output port and provision its output behavior as Squelch for the
warm-up state, On for the free-run state, and On for the holdover state, use the
following procedure:
1. Login at the Admin or Config-user level.
2. Type
set output-pps warm-up squelch and press Enter.
3. Type
set output-pps free-run on and press Enter.
Note: Units that provide 1PPS and 10MHz outputs must be
ordered from the factory; they cannot be reconfigured in the
field. Port 3 provides 1PPS output and Port 4 provides 10 MHz
output.
