Chapter 4 Provisioning
Provisioning Expansion Shelf E1 / 1PPS+TOD Outputs
.

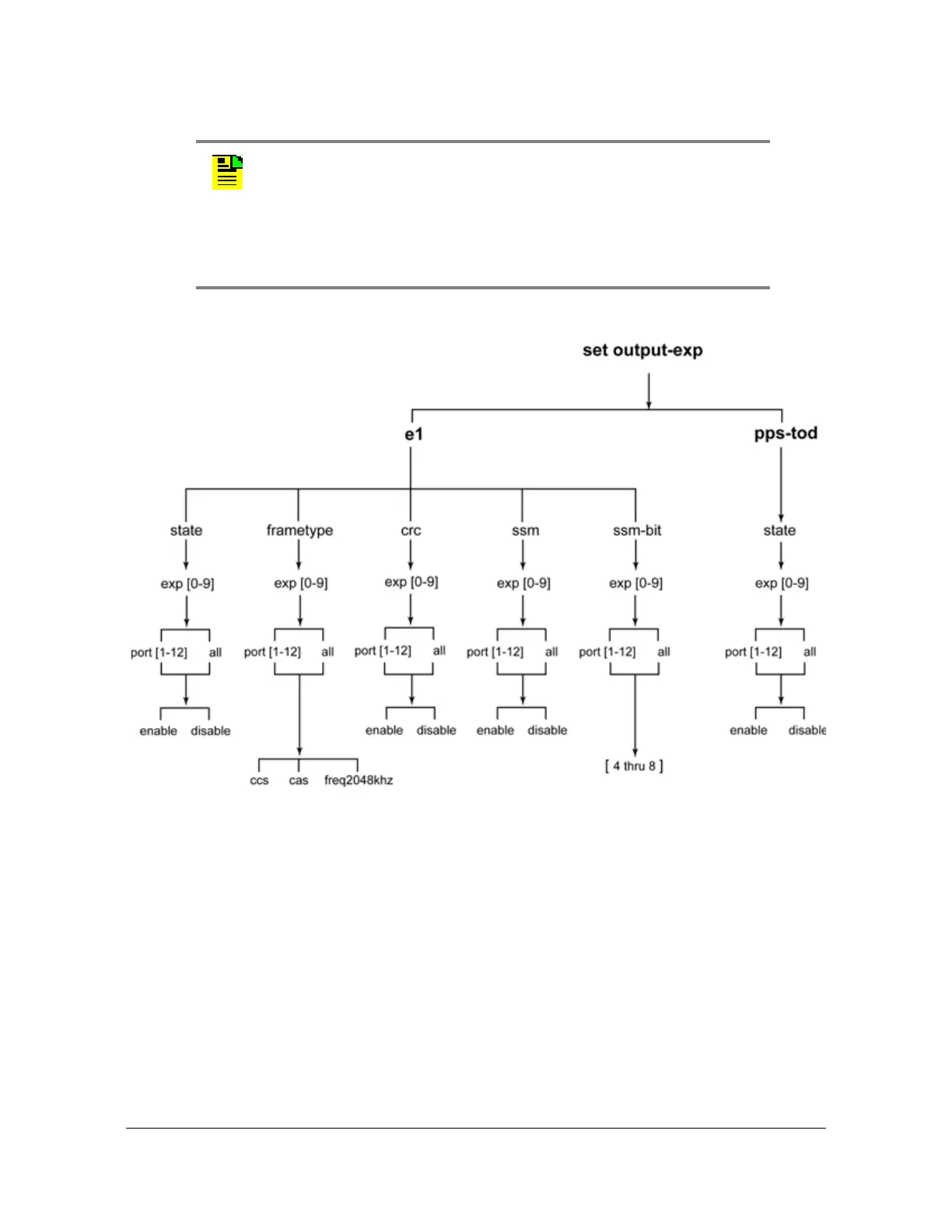

Figure 4-29. Expansion Shelf - Set Output-Exp Command Hierarchy
2048kHz Frame Type
To provision the E1 output Port 3 on expansion shelf 1 (ID=exp0) for a frametype of
2048kHz, CRC disabled, SSM disabled, and to enable the port:
1. Login at the Admin or Config-user level.
2. Type
set output-exp e1 frametype exp0 port3 frqe2048khz and press
Enter.
3. Type
set output-exp e1 crc exp0 port 3 disable and press Enter.
4. Type
set output-exp e1 ssm exp0 port 3 disable and press Enter.
5. Type
set output-exp e1 state exp0 port 3 enable and press Enter.
Note: SSM is only supported for the frametypes CAS with CRC4 and
CCS with CRC4. SSM should not be enabled for other output frame
types
If the outputs are enabled and the telecom outputs are provisioned to
generate SSMs, the output SSM should be set to the LO's SSM
value, e.g. TYPE I (TNC) or TYPE III (ST3E).
