098-00028-000 Revision F – May
, 2012
TimeProvider 5000 User
’
s Guide
307
Chapter 4 Provisioning
Provisioning PTP

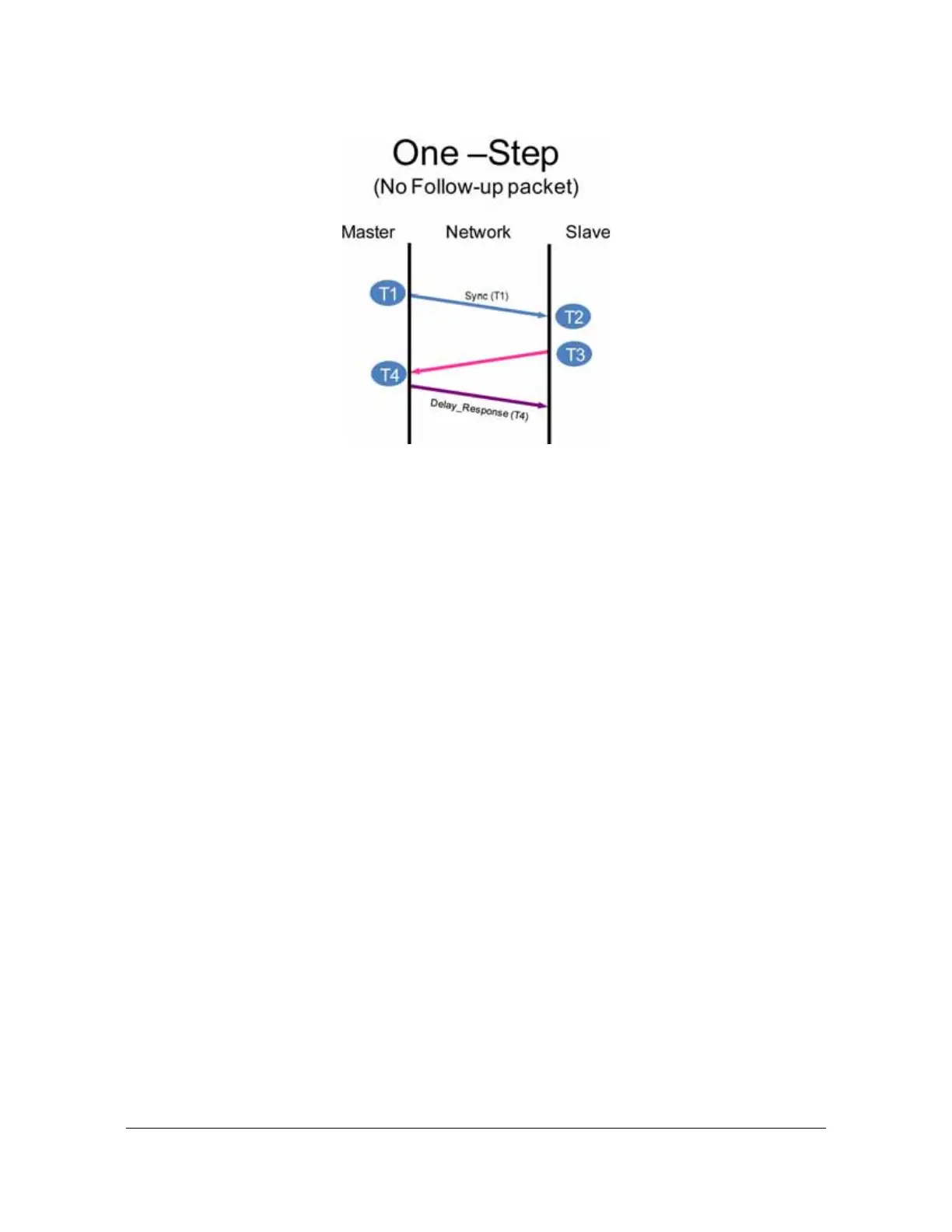

Figure 4-17.
One
-S
tep Clock
306
308
Table of Contents
Table of Contents
3
Figures
13
Default Chapter
21
How to Use this Guide
21
Purpose of this Guide
22
Who Should Read this Guide
22
Structure of this Guide
23
Conventions Used in this Guide
24
Warnings, Cautions, Recommendations, and Notes
25
Related Documents and Information
26
Chapter 1 Overview
29
Overview
30
TP 5000 Software Options
31
Security Features
32
Timeprovider 5000 - Expansion Version Connectors and Leds
33
Timeprovider 5000 Connections
33
UTI Connector Pin Assignments
34
UTI Input and Output Connections
34
Communications Connections
35
Expansion RJ-45 Connector Pin Assignments
35
Timeprovider 5000 Connectors and Leds
33
IMC Module: Versions -01 through -05
36
Output Connections
37
Serial Port Connector Pin Assignments
37
Serial Port Male Connector Pins
37
T1 Input/Output Port Pin-Outs - RJ48C Connector
38
E1 Versions of I/O Module
39
T1 and Expansion Versions of I/O Module
39
Input Connections
40
PTP Output Connections
40
1PPS+TOD Port Pin-Outs - RJ45 Connector
41
Timeprovider 5000 Power and Ground
42
Timeprovider E10 Power Amd Ground
42
Timeprovider E30 Power and Ground
42
Physical Description
43
Timeprovider 5000 Modules and Power Connections
44
Timeprovider E10 Expansion Shelf Connections
44
Timeprovider E30 Expansion Shelf Connections
44
Timeprovider 5000 Block Diagram
45
Functional Description
45
Expansion Connector on Expansion Shelf
46
Physical Interfaces of TP 5000 with Two Expansion Shelves
47
Timeprovider E10 Synce/Ptp Expansion Shelf Block Diagram
47
Timeprovider E30 E1/1PPS+TOD Expansion Shelf Block Diagram
48
Expansion Connections for TP 5000 with a Single Expansion Shelf
49
Expansion Connections for TP 5000 with 5 Expansion Shelves
50
IMC Module Leds
51
Communication Ports
52
System Inputs and Outputs
53
Shelf ID Selector
54
TP E10 Expansion Shelf System Outputs
54
Configuration Management
55
Chapter 2 Installing
57
Getting Started
58
Site Survey
58
Installation Tools and Equipment
59
Unpacking the Unit
60
TP 5000 - Location of Product Label
61
TP E10 - Location of Product Label
61
TP E30 - Location of Product Label
61
Rack Mounting the Timeprovider 5000
62
TP 5000 Mounting Hole Placements
63
Rack Mounting the TP E10 & TP E30 Expansion Shelves
64
TP E10 and TP E30 Mounting Hole Placements - Side View
65
TP E10 Chassis Dimensions - Front View
65
TP E30 Chassis Dimensions - Front View
65
Rack Mounting the TP E10 Expansion Shelf
66
Rack Mounting the TP E30 Expansion Shelf
67
TP E10 and TP E30 Chassis Dimensions - Top View
66
Working with Modules
67
Inserting Modules
68
Communications Connections
69
IMC Module Versions -01 through -05
69
Dti/Ethernet RJ-45 Connector Pin Assignments
70
System Management Ethernet Connector Pin Assignments
70
Serial Port Connector Pin Assignments
71
Serial Port Male Connector Pins
71
TP 5000 Synchronization and Timing Connections
71
PTP Output Connections
72
Optical SFP Transceiver
73
Output Connections for E1 Versions of I/O Module
73
Recommended and Supported SFP Transceivers
73
Output Connections for T1 and Expansion Versions of I/O Module
74
T1 Input/Output Port Pin-Outs - RJ48C Connector
75
Expansion Port (EXP) RJ-45 Connector Pin Assignments - I/O Card
76
EXP Port RJ-45 Connector Pin Assignments - TP E10 & TP E30
77
UTI Port RJ-45 Connector Pin Assignments - I/O Card
77
DTI and DTI/ETH Connection for TP 5000 and One Expansion Shelf
78
DTI and DTI/ETH Connection for TP 5000 and Five Expansion Shelves
79
1PPS+TOD Port Pin-Outs - RJ45 Connector
80
Default Parameters for TOD Information Transmission
80
Timeprovider E10 Synchronization and Timing Connections
81
TP E10 - Output Connection for 1PPS Signal
81
TP E10 - Output Connections for Ptp/Synce
81
Timeprovider E30 Synchronization and Timing Connections
82
TP E30 - 1PPS+TOD Port Pin-Outs - RJ45 Connector
82
TP E30 - Output Connections for 1PPS+TOD
82
TP E30 - Output Connections for E1 Signals
82
TP E30 - Default Parameters for TOD Information Transmission
83
Connecting the GPS/GNSS Antenna
83
Shelf ID Selector
84
Setting Shelf ID on Expansion Shelves
84
Ground Connections
85
Timeprovider 5000 Power Connections
85
Timeprovider E10 Power Connections
85
Timeprovider E30 Power Connections
85
Universal Ground Symbol
85
Power Connections
86
Timeprovider 5000 Power Connector
87
TP E10 and TP E30 - Power Connector a
87
TP E10 and TP E30 - Power Connector B
87
Power and Ground Connections on the Timeprovider 5000
88
Testing Power Connections
88
Installation Completeness Checklist
89
Installation Check List
89
Module LED Descriptions
90
Expansion Shelf LED Descriptions
91
Chapter 3 CLI Commands and SNMP
93
Cli Overview
94
Timeprovider 5000 CLI Command Conventions
95
Command Line Format
96
Command User Levels
97
Show Authentication
106
Show Clock
110
Set Configuration
112
Expansion Port Status
126
Set Hostname
144
Show Hostname
144
Timeprovider 5000 CLI Command Set
94
Checking HW / SW and Card-To-Card Compatibility
152
Show Inventory
152
LED Descriptions for Main Shelf
166
LED Descriptions for Expansion Shelves
167
Show Log
171
Show Ntp
177
Command Syntax
226
Command Syntax
227
Show Redundancy
233
Show Snmp
239
Set Snmp
241
Show Status
245
IOC Clock Status
247
Set User
258
Show User
258
Management Information Base
266
Hierarchy of Public Mibs for Used with Timeprovider 5000
267
Hierarchy of Symmetricom Private Mibs for Timeprovider 5000
268
Top Level Hierarchy of Tp5000E Private MIB
269
Chapter 4 Provisioning
271
Establishing a Connection to the Timeprovider 5000
272
Communicating through the Ethernet Port
273
User Level and Access
274
Managing the User Access List
274
Adding a User
275
Deleting a User
276
Changing a User's Password
277
Changing a User's Access Level
278
Configuring the Radius Server
279
Security Levels Vs. RADIUS Server User-Name Attribute Settings
279
Provisioning the Ethernet Ports
280
Set IP-Mode Command
281
Provisioning IOC Ethernet Ports
282
Set IP Command Hierarchy
282
IOC Ethernet Ports Configured as Redundant Pair
283
Redundant IOC Cards with Redundant Ethernet Ports
284
Redundant IOC Cards with Independent Ethernet Ports
285
Set Vlan-Mode Command Hierarchy
287
Provisioning VLAN
287
Fixed VLAN - Set Vlan-Config Commands
288
Non-Fixed VLAN - Set Vlan Commands
289
Provisioning PTP
291
Set Packet-Service Command Hierarchy
291
PTP Profiles
292
Default Profile (Multicast) Compliance - IEEE1588-2008 Annex J
293
ITU-T G.8265-1 Profile Compliance
293
Telecom-2008 (Unicast) Proprietary Profile
293
Hybrid (Multicast-Hybrid) Proprietary Profile
294
PTP Parameters
295
Management Addressing Mode
299
Two-Step Clock Mode
300
Set PTP Multicast Hierarchy
301
Two-Step Clock
306
One-Step Clock
307
Set NTP Command Hierarchy
308
Provisioning NTP
308
Provisioning an IOC Port as NTP Server
309
Configurable Parameters for Reference Selection
310
Provisioning the Input Reference
310
Set Ref Command Hierarchy
311
Setting Reference Criteria
311
Setting Input Priority Values
312
Reference Modes and Priorities
313
Setting GPS Port as Reference
313
Set GPS Command Hierarchy
314
Set GNSS Command Hierarchy
315
Setting GNSS Port as Reference
315
Setting a 1PPS+TOD Input as Reference
316
Setting an E1/T1 Input as Reference
317
Set Input Command Hierarchy
318
Set IO Command Hierarchy
318
Provisioning the Programmable E1/T1 Inputs
318
Input Frametypes: SSM-States and SSM-Values
319
CRC State
320
Priority Quality Levels
320
Provisioning E1 Inputs
321
Provisioning T1 Inputs
322
Provisioning the 1PPS+TOD Inputs
324
Set Output Command Hierarchy
325
Provisioning the Programmable E1/T1 Outputs
325
Output SSM-Value Vs. Clock State
326
Provisioning T1 Outputs
327
Provisioning Output Generation Behavior
328
Output Generation Behavior Commands
329
Provisioning the Dedicated Outputs
330
Provisioning Output Generation Behavior
331
Set Output-10M Commands
332
Provisioning the 10Mhz & 1PPS Outputs
332
Set Output-PPS Commands
332
Provisioning TP 5000 for Expansion Shelf
333
Verify Expansion Configuration
334
DTI / Ethernet Port Command Hierarchy
335
Provisioning Expansion Shelf E1 / 1PPS+TOD Outputs
336
Expansion Shelf - Set Output-Exp Command Hierarchy
337
Expansion Shelf - Set Output-Exp Generation Command Hierarchy
339
Provisioning 1PPS +TOD Outputs for Expansion Shelf
339
Provisioning Expansion Shelf Ptp/Synce Outputs
341
Set PTP Command Hierarchy for PTP Expansion Shelf
343
Set PTP Command Hierarchy for PTP Expansion Shelf (Cont'D)
343
Provisioning Synce Outputs for the Expansion Shelf
344
Set Synce Command Hierarchy
345
Setting the System Date and Time
345
Provisioning Alarms
346
Disabling Specific Alarms
347
Set Alarm-Config Commands
347
Showing Current Alarms
348
Set Configuration Command Hierarchy
349
Saving and Restoring Provisioning Data
349
Backing up Provisioning Data
350
Restoring Provisioning Data
352
Provisioning for SNMP
354
Enabling the SNMP Option
355
Set SNMP Commands
355
Selecting MIB Versions
356
Adding and Removing V2 Communities
357
Adding and Removing SNMP V3 Trap Users
358
Chapter 5 Operating
359
Adding and Deleting Users
360
Logging in and out
360
Restoring Default Configuration
360
Force Unit to Send New Time Vs. Auto Sync
361
Determining Status
361
IOC1 and IOC2 Modules
362
Switching Active and Standby IOC Cards
362
Displaying Logs
363
Restarting the Timeprovider 5000
364
PTP Management Commands
365
Managing PTP Clients
365
Configuring PTP Clients
366
Client Status Information
367
Monitoring PTP Client Performance
367
Monitoring PTP Client Alarm / Event Information
368
Upgrading PTP Client Firmware
369
Chapter 6 Maintenance and Troubleshooting
371
Preventive Maintenance
372
Safety Considerations
372
Troubleshooting Symptoms
373
Diagnosing the IOC - Reading LED Conditions
376
LED Conditions for the IOC
376
Diagnosing the IMC - Reading LED Conditions
380
LED Conditions for the IMC
380
LED Conditions for the Expansion Shelf
382
Repairing the Timeprovider 5000
384
Removing the IOC
385
Replacing the IMC
388
Upgrading the Firmware
389
TP5000 Upgrade - Loss of Outputs
391
TP5000 with Redundant IOC Modules V1.2.3 - no Loss of Outputs
392
TP5000 with Redundant IOC Modules V1.1.8 - no Loss of Outputs
394
Upgrading an Expansion Shelf
396
Timeprovider 5000 Part Numbers
398
Compatibility Matrix
399
Connection Accessories
402
GPS Antenna
402
GPS Roof Mount Cables (Spares and Replacements Only)
403
Repacking the Unit
404
Contacting Technical Support
405
Appendix A System Messages
407
Message Provisioning
407
Facility Codes
408
System Notification Messages
409
Appendix B Specifications and Factory Defaults
431
Mechanical
431
Timeprovider 5000, TP E10, and TP E30 Environmental Specifications
432
Timeprovider 5000, TP E10, and TP E30 Mechanical Specifications
432
Power
433
Timeprovider E10 Expansion Shelf Power Specifications
433
Timeprovider E30 Expansion Shelf Power Specifications
433
Timeprovider 5000 Main Shelf - Serial Port Specifications
434
Timeprovider 5000 Main Shelf Input Signal Specifications
434
Timeprovider 5000 Main Shelf LAN Port Specifications
434
TP 5000 - TOD Frame Structure for 1 PPS+ TOD Input
436
TP 5000 - TOD Frame Field Descriptions for 1PPS +TOD Input
436
TP 5000 - TOD Message Data Type Definitions for 1PPS+TOD Input
440
Output Signals
441
TP E10 Expansion Shelf Output Signal Specifications
443
TP E30 Expansion Shelf Output Signal Specifications
444
TP E30 - TOD Frame Structure for 1 PPS+ TOD Outputs
445
TP E30 - TOD Frame Field Descriptions for 1PPS +TOD Output
445
Clocks
448
Timeprovider 5000 IOC Clock Specifications
449
TP E30 - TOD Message Data Type Definitions for 1PPS+TOD Outputs
449
Factory Defaults
449
Factory Defaults
450
GPS, GNSS, and Input Port Parameters
452
Telecom Input / Output Parameters
454
I/O Card Expansion Port Output Parameters
455
Output Port Parameters
455
Telecom Output Port Parameters
455
PTP Grand Master Port IP Parameters
456
Ethernet Link Auto-Negotiation Parameters
457
VLAN Parameters - Non-Fixed
457
Packet Service Parameters
458
PTP Grand Master Common Parameters
458
PTP Grand Master Multicast Parameters
459
PTP Grand Master Unicast Parameters
459
PTP Grand Master Multicast Parameters
460
SSM Settings
461
TP E10 - Expansion Port Parameters
461
TP E10 - PTP Output Port IP Parameters
462
TP E10 - Ethernet Auto Negotiation Parameters
463
TP E10 - VLAN Parameters
463
TP E10 - Expansion Shelf PTP Parameters
464
TP E10 - Output Port Parameters
464
TP E30 - 1PPS+TOD Output Port Parameters
465
TP E30 - E1 Output Port Parameters
465
TP E30 Expansion Shelf Defaults
465
Alarm Default Values
466
GPS Port Alarm Parameters
466
Appendix C Installing the GPS Antenna
467
Antenna Kits and Accessories
468
GPS Antennas with Internal LNA
469
Specifications for GPS Antennas with Internal LNA
469
FCC-250B-90-1.5NFNF Specifications
470
Transient Eliminators
470
GPS L1 Inline Amplifier Specifications
471
Antenna Cable Specifications
472
Antenna Coaxial Cables
472
Locating the GPS Antenna
473
Planning the Installation
473
Antenna Installation Tools and Materials
476
GPS Antenna Installation
477
Installing the Antenna
477
Installing the Transient Eliminator
478
Installing the Antenna Cable
479
Antenna Installation Completeness Checklist
480
Appendix D Redundant IOC Cards
481
GPS Antenna Kits
468
IOC Card Placements in TP5000 Chassis
482
Overview
482
Parameters with IOC Card Redundancy
483
Redundant IOC Cards with Independent Ethernet Ports
484
Possible Conflicts with Clock Ids and IP Addresses
485
Redundant IOC Cards with Redundant (Bonded) Ethernet Ports
485
Emergency Switchovers
486
Setting the Active IOC Card at Power up
487
IOC Condition at Power up
488
IOC States and Related Conditions
488
Output Performance During Switchover
490
IOC Card Redundancy-Related CLI Commands
491
Appendix E Software Licenses
493
Third-Party Software
494
Appendix F PTP Probe Option
495
Overview
495
IEEE-1588 Grandmaster Server and Client
497
IEEE-1588 Grandmaster Server and Probe
497
Optional Equipment
498
Probe Input Connections - IOC Module
499
Recommended and Supported SFP Transceivers
499
TP 5000 PTP Probe Connectors and Leds
499
Installing the Probe
499
Test Setup for TP 5000 Probe (Power Connections Not Shown)
500
Controlling the Probe with Timemonitor PDV
501
Functions of Timemonitor PDV
505
Timemonitor PDV Functionality Groupings
506
Descriptions of Timemonitor PDV Functionality
507
Entering CLI Commands Manually with Timemonitor PDV
507
Installing Timemonitor
509
Provisioning the Probe
510
Enable Port as PTP Probe Procedure
511
Return to Grandmaster Mode Procedure
512
Set MGMT Port IP Address Procedures
513
Set Probe IP Address Procedures
515
Set Grandmaster PTP IP Address Procedures
516
Set Synchronization Interval Procedures
517
Set Lease Duration Procedures
518
Measurement Procedures
519
Typical Probe Response if Setup Is Correctly Configured
520
Typical Probe Stats at End of Measurement
520
Operating the Probe
520
Anatomy of a Probe Message
521
Message Types from the Probe
522
Probe Data
522
Sync and Delay Message Parameters
522
Saving Probe Data
523
Timeprovider 5000 User's Guide 098-00028-000 Revision F – May
524
Index
525
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Symmetricom TimeProvider 5000 and is the answer not in the manual?
Ask a question
Symmetricom TimeProvider 5000 Specifications
General
Brand
Symmetricom
Model
TimeProvider 5000
Category
Server
Language
English
Related product manuals
Symmetricom TimeCreator 1000
298 pages
Symmetricom SyncServer S100
166 pages
Need help?
General
To Next Page
