Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 329
Chapter 4 Provisioning
Provisioning the Programmable E1/T1 Outputs

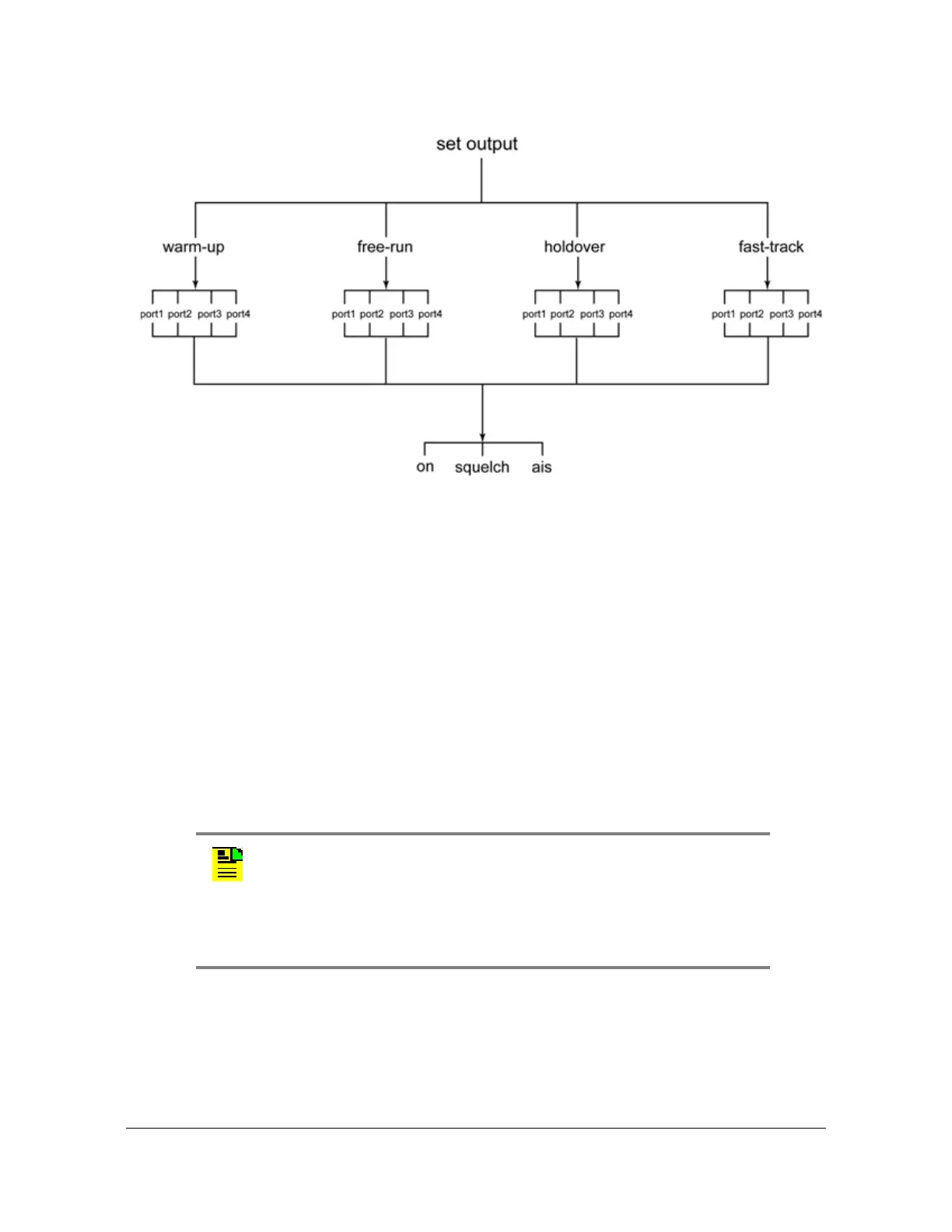

Figure 4-25. Output Generation Behavior Commands
Example:
To provision the port 1 output behavior as squelch for the warm-up state, AIS for the
free-run state, and AIS for the holdover state:
1. Login at the Admin or Config-user level.
2. Type
set output warm-up port1 squelch and press Enter.
3. Type
set output free-run port1 ais and press Enter.
4. Type
set output holdover port1 ais and press Enter.
5. Type
set output fast-track port1 ais and press Enter.
Note: For the 090-50312-01 and 090-50314-01 versions of the
IOC card,
Port 3 and Port 4 are configured as dedicated 1PPS and
10 MHz output ports, respectively. Use the “set output-10m” (
Figure
4-24)
and “set output-pps”(Figure 4-24) commands to provision the
output generation behavior for Port 3 and Port 4 for these versions of
the IOC card.
