098-00028-000 Revision F – May, 2012 TimeProvider 5000 Users Guide 49
Chapter 1 Overview
Functional Description
TP 5000 - IMC
TP 5000 - I/O
Expansion shelf
Provision output signals for each expansion shelf
Enable state(s) of output(s)
Figure 1-19 is a diagram of the expansion connections for a TP 5000 with one
expansion shelf. Figure 1-20 is a diagram of the expansion connections for a TP
5000 with 5 expansion shelves.

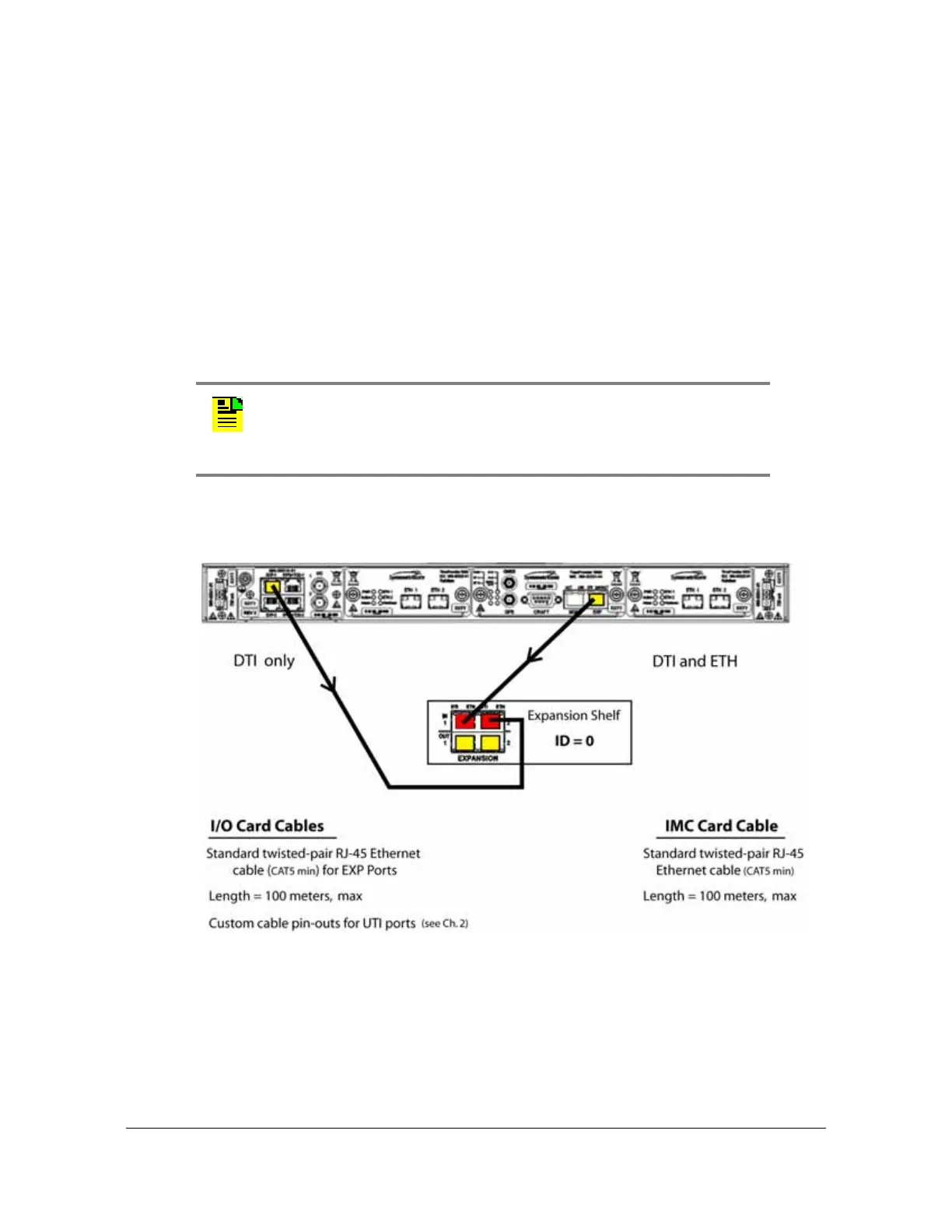

Figure 1-19. Expansion Connections for TP 5000 with a Single Expansion Shelf
Note: If using UTI ports from I/O modue 090-50311-01,
090-50312-01, or 090-50314-01, a custom cable must be used
between the I/O module and the expansion shelf. See
Table 2-9 for
details.
