098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 325
Chapter 4 Provisioning
Provisioning the Programmable E1/T1 Outputs
Provisioning the Programmable E1/T1 Outputs
Two I/O ports on versions 090-50311-01, 090-50312-01, and 090-50315-01 of the
I/O module, Port1 and Port 2, are software configurable as E1 outputs. Two I/O
ports on version 090-50314-01 of the I/O module, Port1 (I/O-1) and Port 2 (I/O-2),
are software configurable as T1 outputs. The “set io” command is used to set Ports
1 and 2 as outputs. See Figure 4-22. The “set output” command is used to provision
the E1 output characteristics. See Figure 4-24.

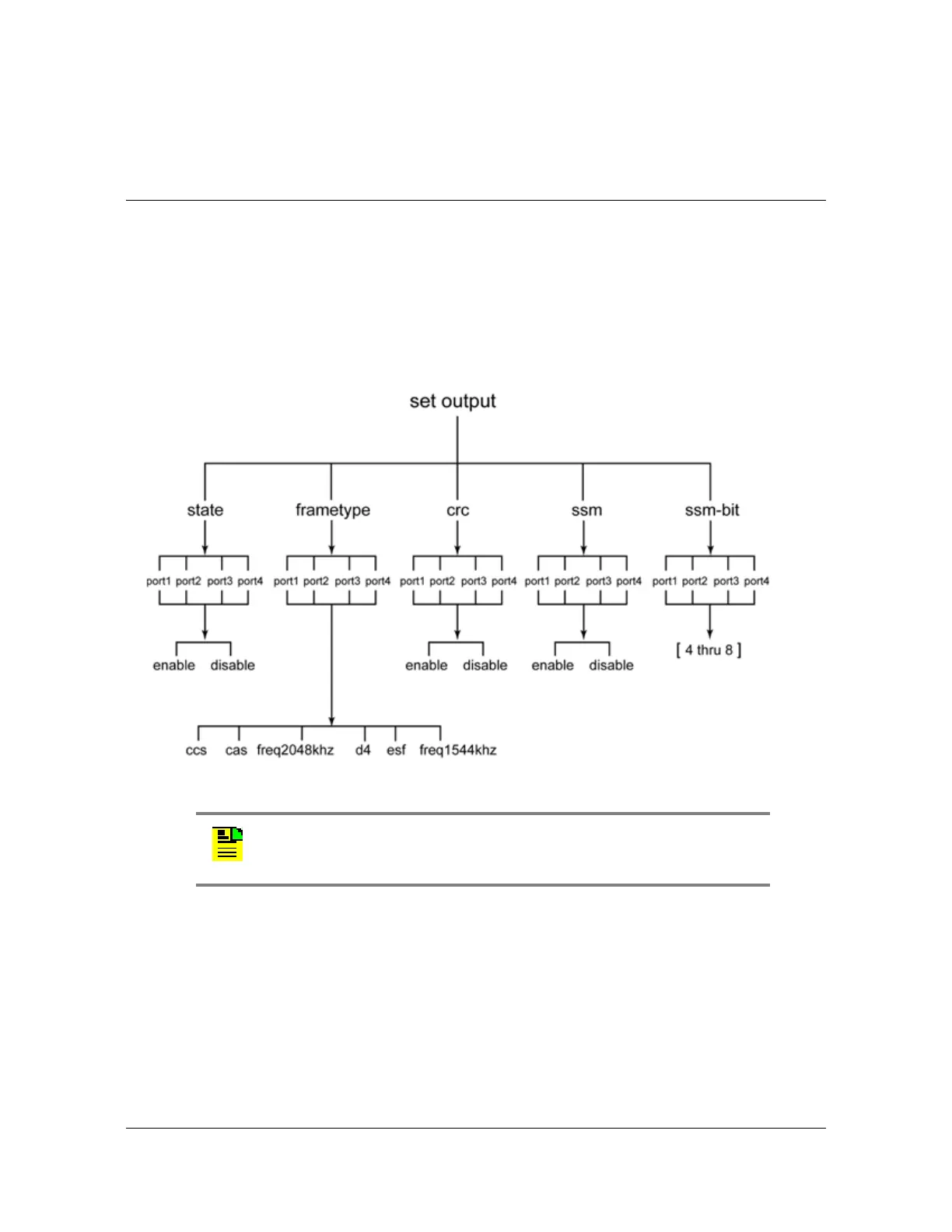

Figure 4-24. Set Output Command Hierarchy
Note: SSM is only supported for the frametypes ESF, CAS with
CRC4 and CCS with CRC4. SSM should not be enabled for other
output frame types
