Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 33
Chapter 1 Overview
TimeProvider 5000 Connections
TimeProvider 5000 Connections

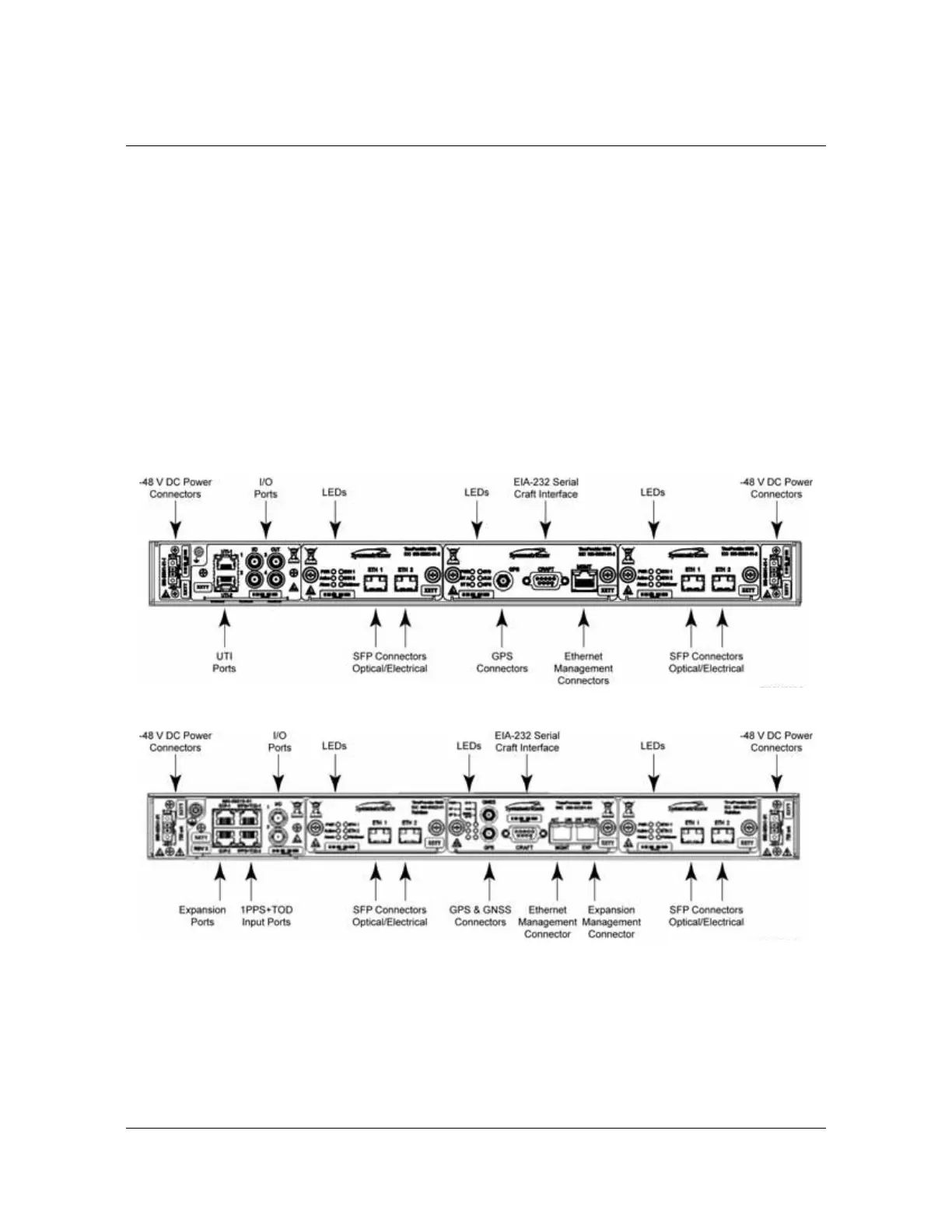

Figure 1-1 is a front view of the TimeProvider 5000 showing connectors and LEDs.
Connections for the GPS/GNSS input signal, Ethernet Management, and EIA-232
serial connection are located on the IMC module. Small Form-factor Pluggable
(SFP) connectors are located on the IOC modules. UTI, E1, T1, 1PPS+TOD, or 10
MHz/1pps, and I/O ports are located on the I/O module. The 1PPS/10MHz ports are
optional. Customers can order units with either
 two E1 I/O ports and two E1 Outputs
 two E1 I/O ports and 10MHz and 1PPS ports.
 two T1 I/O ports and 10MHz and 1PPS ports
 two E1 I/O ports and two 1PPS+TOD input ports
Figure 1-1. TimeProvider 5000 Connectors and LEDs
Figure 1-2. TimeProvider 5000 - Expansion Version Connectors and LEDs
