Chapter 4 Provisioning
Provisioning the Ethernet Ports

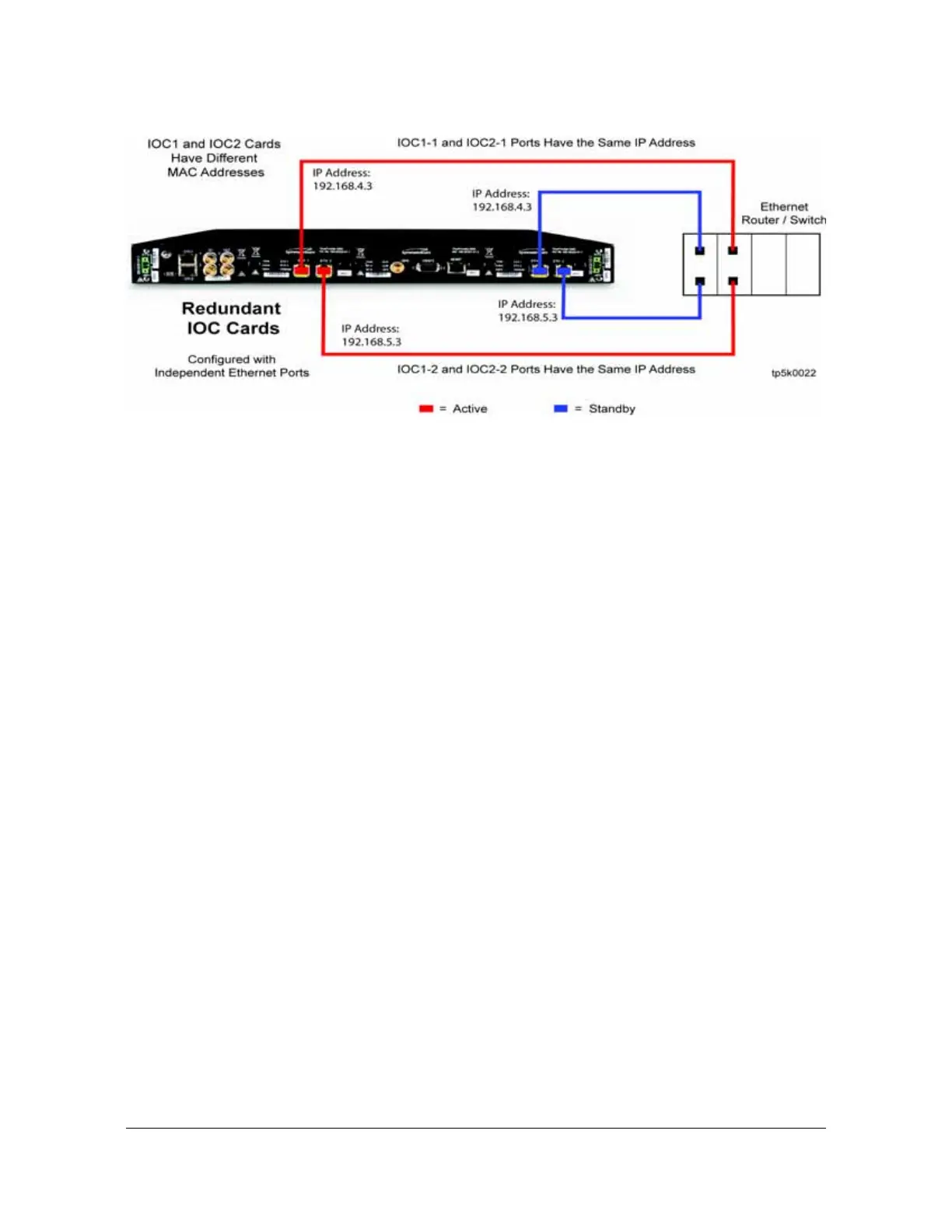

Figure 4-5. Redundant IOC Cards with Independent Ethernet Ports
Independent Ethernet Ports
Disabling port redundancy returns the IOC Ethernet ports to independent status.
Independent ports must be in different subnets.
Use the following procedure to configure the ports on IOC 1 as independent ports.
1. Login at the admin or Config-user level.
2. Type
set redundancy port ioc1 disable and press Enter.
3. Type
set ip ioc1-1 address 192.168.1.10 netmask 255.255.255.0
gateway 192.168.1.1 and p
ress Enter.
4. Type
set ip ioc1-1 restart and press Enter.
5. Type
set ip ioc1-2 address 192.168.2.12 netmask 255.255.255.0
gateway 192.168.2.1 and p
ress Enter.
6. Type
set ip ioc1-2 restart and press Enter.
Ethernet Auto-Negotiation
The Ethernet ports on IOC modules can be configured to allow automatic
negotiation of their connection speeds. When Ethernet auto-negotiation is enabled,
the TP5000 will advertise connection speeds of 100/1000M for electrical SFP and
1000M for optical SFP. The user can also specify a connection speed for a port,
100M, 1000M, or All, to configure the speed used by auto-negotiation. The default
for auto-negotiation state is “enable”. The default value for auto-negotiation speed is
“All”.
If auto negotiation is disabled, the Ethernet connection speed will be forced to 100M
for Electrical SFPs and to 1000M for Optical SFPs.
