098-00028-000 Revision F – May, 2012 TimeProvider 5000 Users Guide 39
Chapter 1 Overview
TimeProvider 5000 Connections
Expansion Output Connections
The expansion output ports (EXP-1 and EXP-2) on the expansion version of the I/O
module (Figure 1-6) are standard 10/100Base-T shielded RJ-45 receptacles. To
connect the EXP ports of the I/O module to an expansion shelf (TP E10 or TP E30),
use a standard twisted-pair RJ-45 cable (CAT5 minimum). To connect the UTI ports
(UTI-1 and UTI-2) of the I/O module to an expansion shelf, use a custom
twisted-pair RJ-45 cable (CAT5 minimum) with the pinouts shown in Table 1-3.
The RJ-45 pin assignments for the UTI/EXP ports are shown in Table 2-6 and Table
2-7.

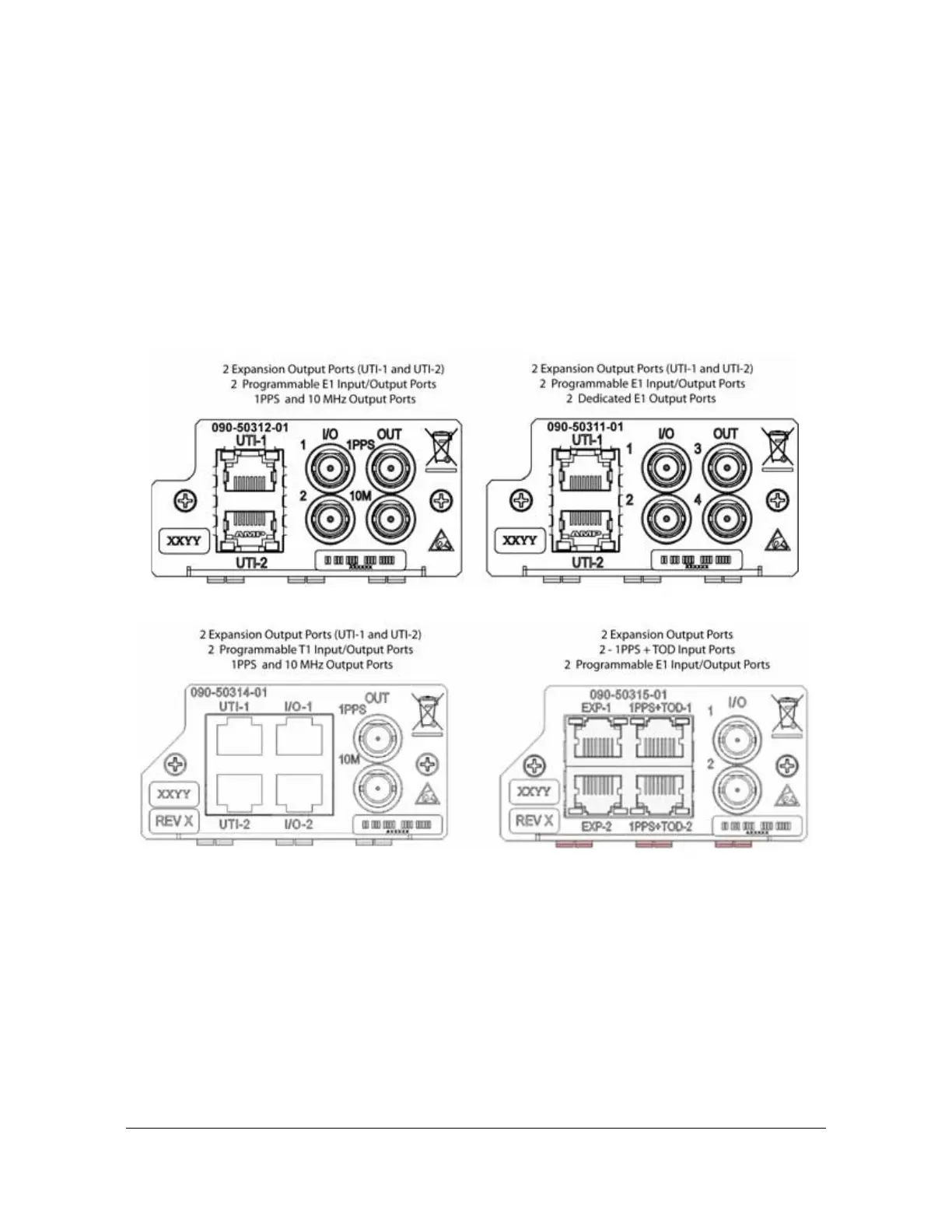

Figure 1-5. E1 Versions of I/O Module
Figure 1-6. T1 and Expansion Versions of I/O Module
