11 Safety Function
11.3 Safety Logic Circuit
11-44
HW1485509
HW1485509

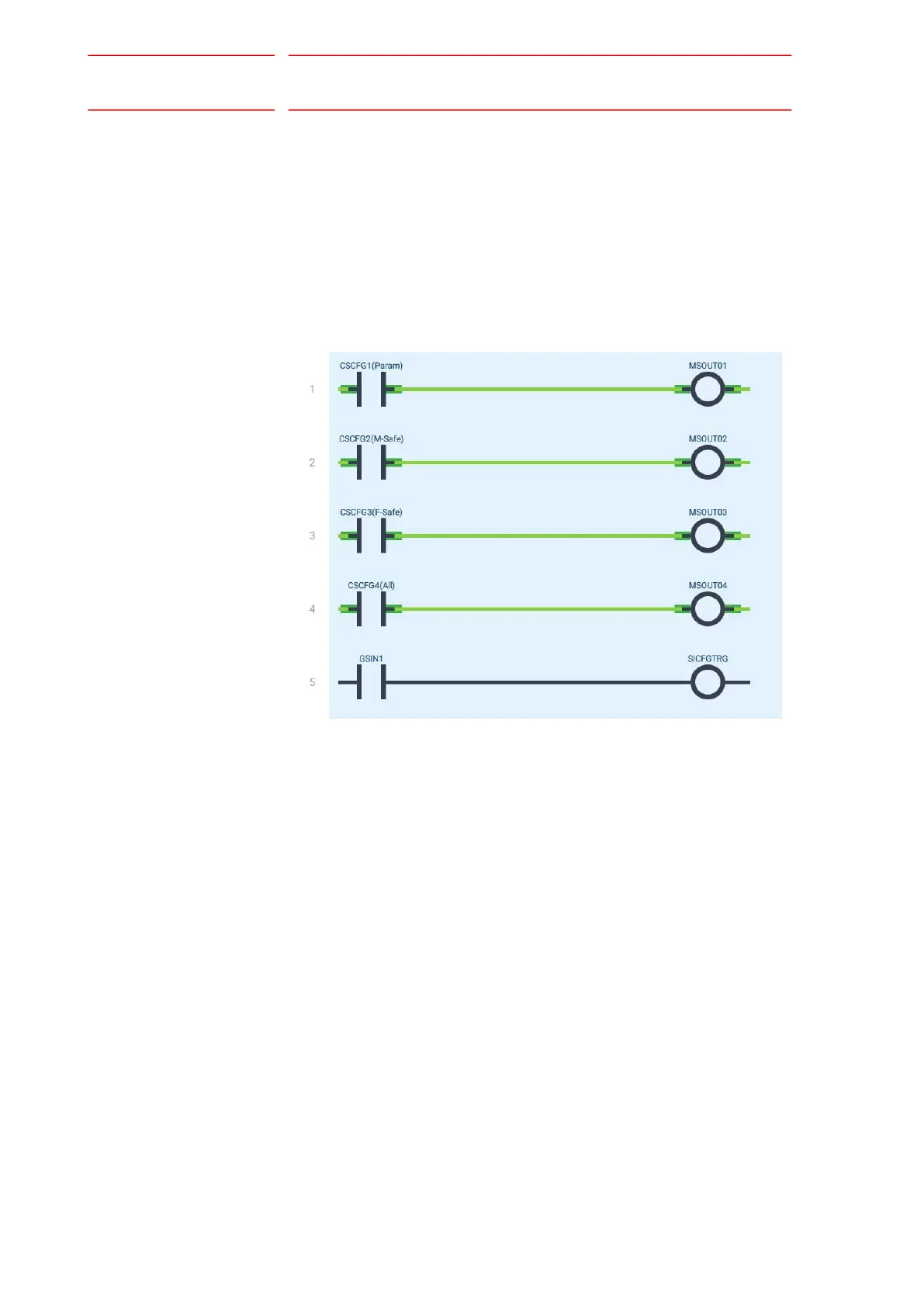

3. Input of the stored CRC updating trigger
– When the stored CRC updating trigger (signal name: SICFGTRG
GSIN01 is set this time) is turned ON (
●) to OFF(〇), the stored
CRC is updated.
– When the stored CRC is updated, the monitoring result is turned ON
(
●: normal monitoring) until the safety data is changed.
– The monitoring result (signal name: CSCFG01 - 04) can be output to
any signal by using the safety logic circuit.
The monitoring result can be output to the external device by using the
safety output.
