R3765/67G Series Network Analyzer Operation Manual
5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-20
Select S22 for channel 3.
[MEAS] {SUB MEAS ON/OFF} {S22 REFL REV}
The active channel is switched to 3 and the format is set with Smith chart.
[FORMAT] {SMITH (R+jX)}
Each time [CH 1] is pressed, the active channel is switched between channel 1 and
channel 3.
The display on the screen is as follows.

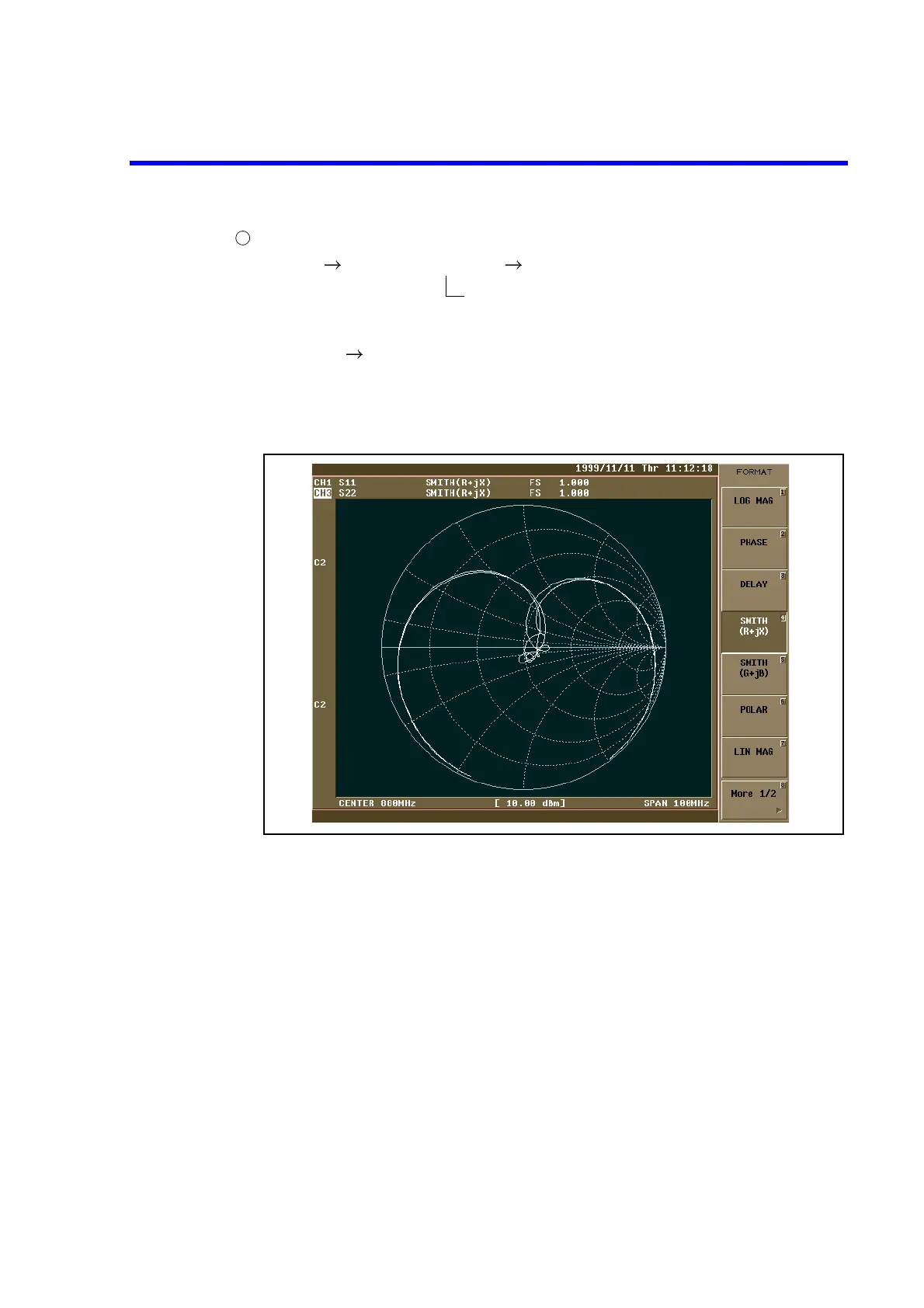

Figure 5-18 4 Screen Display (Overlap Display of Channel 1 and 3)
Note: OPT11 or OPT14 uses a different [MEAS] menu.
For more information, refer to the description on page 7-10.
2
Switch ON.
To Next Page
