R3765/67G Series Network Analyzer Operation Manual
10.9 Dynamic Level Accuracy
10-48
10.9.1.3 Procedure
10.9.1.3.1 A PORT Measurement for Dynamic Level Accuracy
(1) Connect two 3-dB attenuators, step attenuator using two RF cables between SOURCE and
A PORT shown in Figure 10-29.

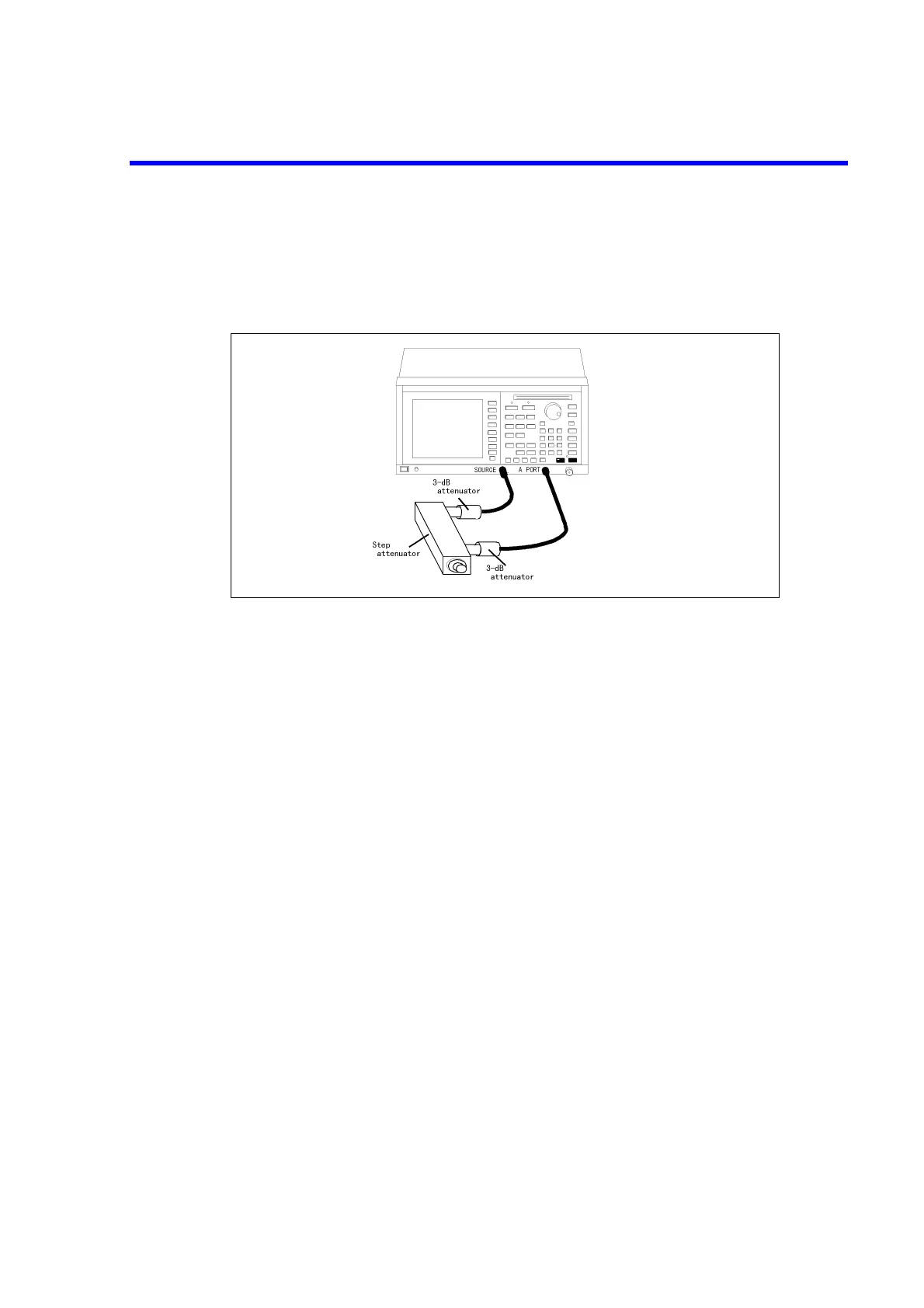

Figure 10-29 Connections for A PORT Measurement for Dynamic Level Accuracy
(2) Press [MEAS] and {A/R} to set the A PORT measurement mode.
• Dynamic level accuracy at 50 MHz
(3) Press [CENTER], [5], [0] and [MHz] to set the center frequency to 50 MHz.
(4) Press [SPAN], [0], [x1] to set the span to 0 MHz.
(5) Press [AVG], {IF RBW}, [1], [0], [0] and [x1] to set the RBW to 100 Hz.
(6) Press [MKR] to set the marker on.
(7) Press [MENU], {POWER}, [6] and [x1] to set the output level to 6 dBm.
(8) Set the step attenuator to 20 dB.
(9) Press [CAL] and {NORMALIZE (THRU)} to do normalization.
(10) Set the step attenuator to 10 dB.
(11) Read out the marker level.
(12) Repeat steps (10) and (11) on each set level listed on Table 10-2.
