R3765/67G Series Network Analyzer Operation Manual
5.5 Ripple Measurement in the Bandwidth
5-35
Search ripple in the delta section.
{RIPPLE} {∆MAX -MIN }
The reference marker moves to the most minimum point of the minimum points and
the active marker moves to the most maximum point of the maximum points.
The display on the screen is as follows.
The difference of the both marker values is displayed in the active marker area.

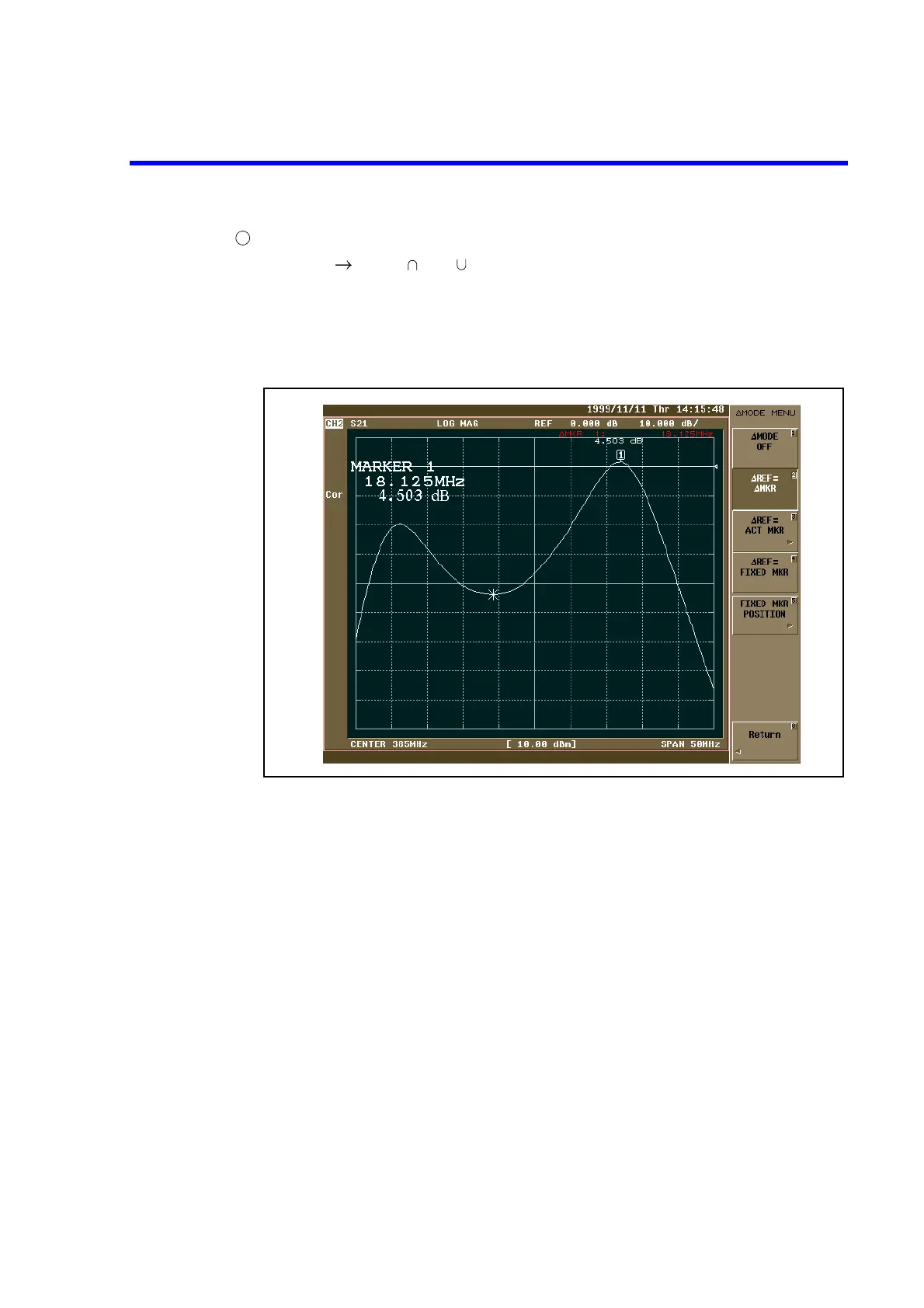

Figure 5-30 Measurement of Ripple in the Delta Section
