5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-15
Connect the through-standard between test port 1 and test port 2.
{FWD.TRANS THRU}
The display on the screen is as follows.

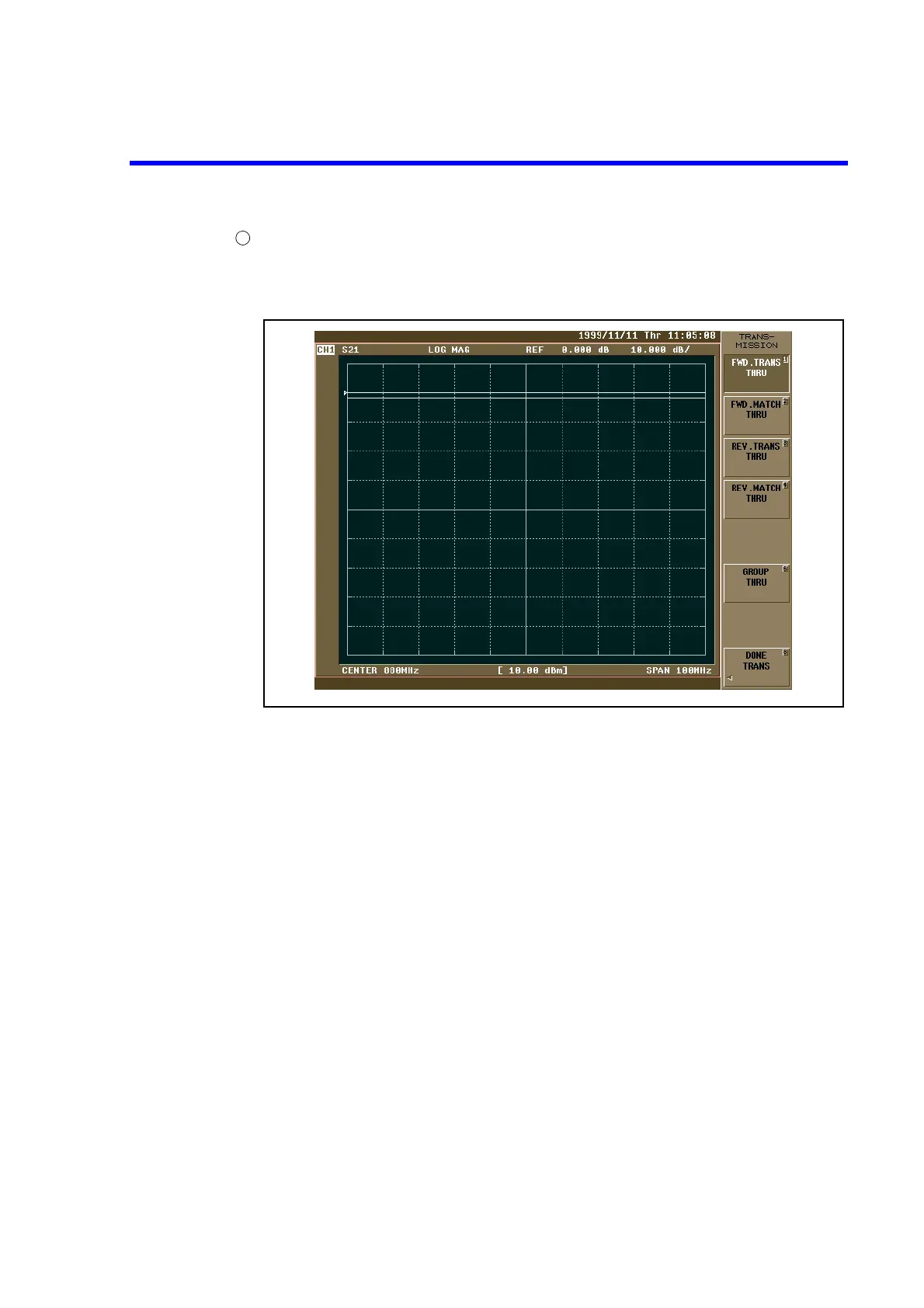

Figure 5-13 Calibration of 2-Port Transmission Characteristic
(Forward Direction)
