3.5 Measurement Samples of Simple Transmission Characteristics
3-16
Adjust the scale to see the display trace easily.
Pressing [SCALE] {AUTO SCALE} shows the following display on the screen.

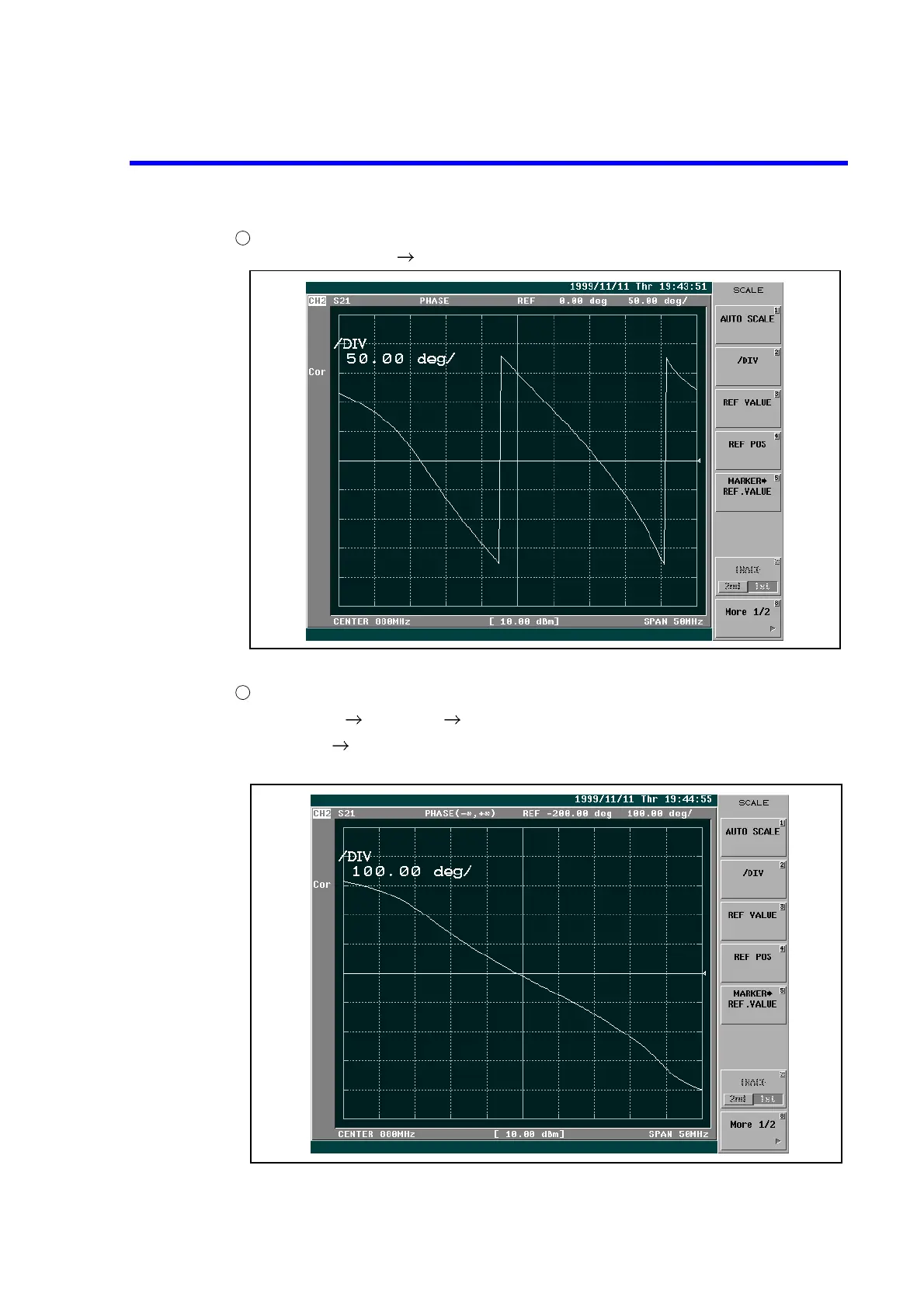

Figure 3-13 Auto-scale of Phase Measurement
Set the phase extension display.
[FORMAT] {More 1/2} {PHASE -∞, +∞}
[SCALE] {AUTO SCALE}
The display on the screen is as follows.
Figure 3-14 Phase Extension Display
