R3765/67G Series Network Analyzer Operation Manual
3.5 Measurement Samples of Simple Transmission Characteristics
3-14
A measurement sample of 6dB bandwidth
Change WIDTH VALUE (bandwidth to search) from 3dB (initial value) to 6dB.
Press {WIDTH VALUE} [6] [X1]
The display on the screen is as follows.

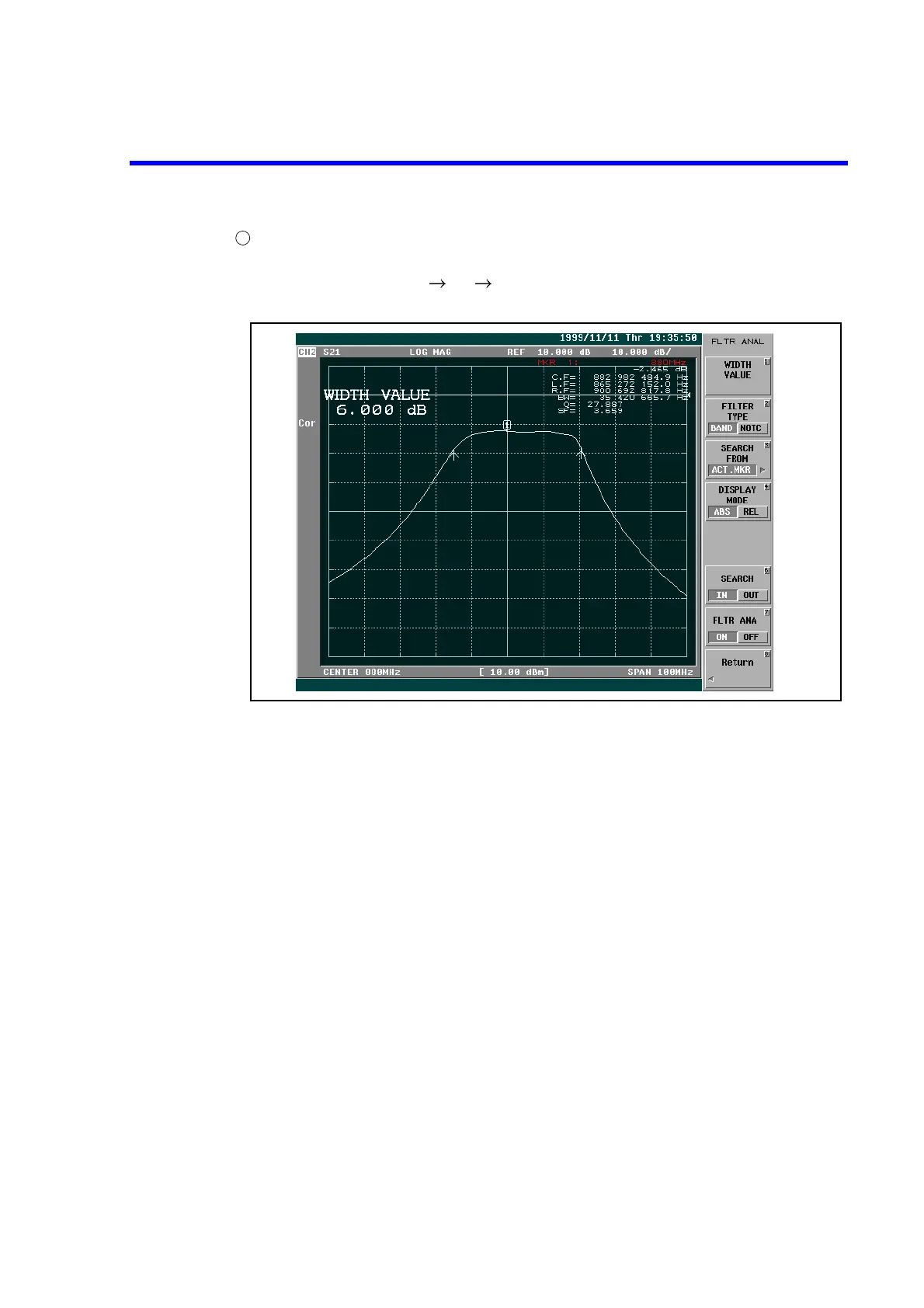

Figure 3-12 Filter Analyzing Function (6dB Bandwidth and Q Measurement)
