R3765/67G Series Network Analyzer Operation Manual
5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-21
Split-displays channel 1 and 3.
[DISPLAY] {SPLIT CH ON/OFF}
Each time [CH 1] is pressed, the active channel is switched between channel 1 and 3.
The display on the screen is as follows.

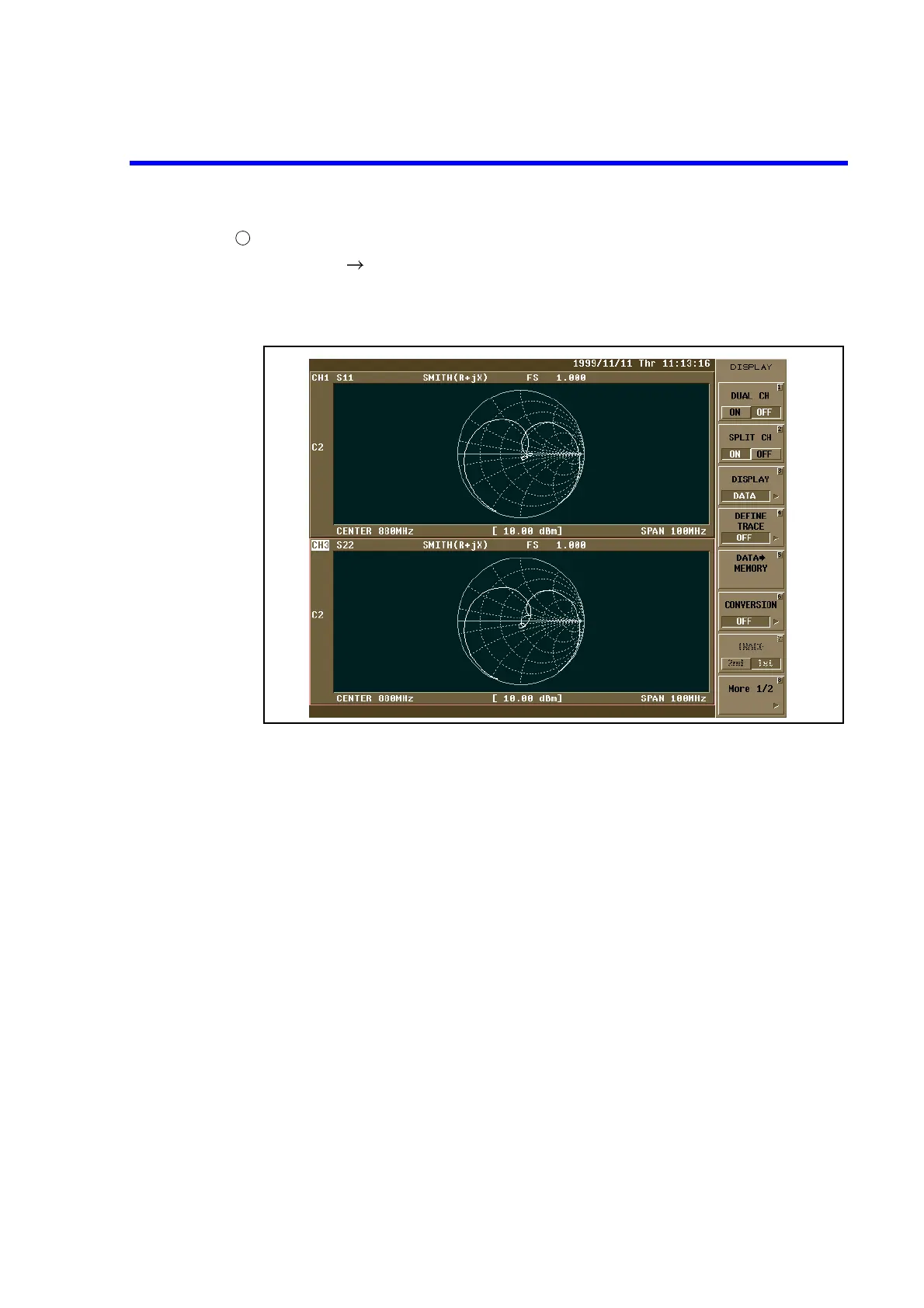

Figure 5-19 4 Screen Display (Split Display of Channel 1 and 3)
