R3765/67G Series Network Analyzer Operation Manual
5.8 GO/NG Measurement Using Limit Line Function
5-45
5.8 GO/NG Measurement Using Limit Line Function
GO/NG of DUT can be judged by using the limit line function of the R3765/67G series.
Besides the judgement of magnitude, GO/NG of Smith chart and Polar coordinates display can be
judged.
• The following shows an example of how the limit line of 880MHz band-pass filter is generated.
Setting procedure
Setup (filter connection) (refer to sub-section 3.5.1) and preset (refer to sub-section
4.4.1).
Press [CH 2] to set the active channel to 2.
Setup start-frequency and stop-frequency.
[CENTER] [8] [8] [0] [MHz]
[SPAN] [1] [0] [0] [MHz]
Calibrate the frequency characteristic.
Remove DUT and connect the through adapter instead.
Normalize in this state.
Following the completion of [CAL] {NORMALIZE (THRU)}, return the connection
to DUT.
Set the measurement format to magnitude (log display).
The display on the screen is as follows.

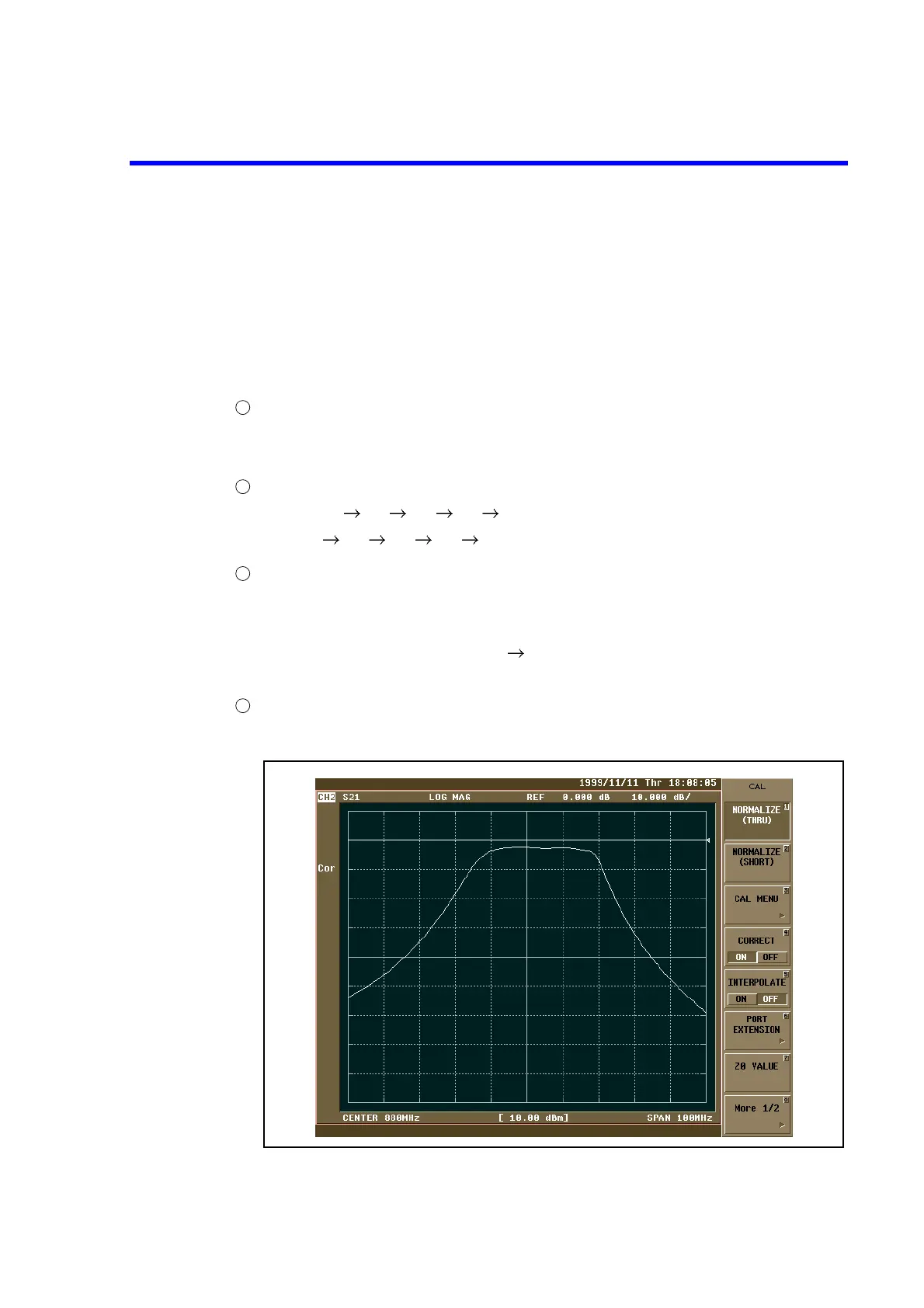

Figure 5-38 Screen before Execution of Limit Line Measurement
