R3765/67G Series Network Analyzer Operation Manual
5.7 High-speed Measurement Using the Program Sweep Function
5-44
In the program sweep, the power level value and IF bandwidth value can be set in each
segment.
Therefore the measurement is possible to improve the analyzer’s dynamic range.
Set IF bandwidth of segment 0 to 1kHz and power level of segment 1 to +5.0dBm,
here.
[MENU] {SWEEP TYPE [ ]} {EDIT PROG SWEEP}
{SEGMENT NUMBER} [0] [X1]
{More 1/2}
{IF RBW} [1] [kHz]
{More 2/2}
{SEGMENT NUMBER} [1] [X1]
{More 1/2}
{SEGMENT POWER} [5] [.] [0] [X1]
{Return}
{PROGRAM SWEEP}
The display on the screen is as follows.

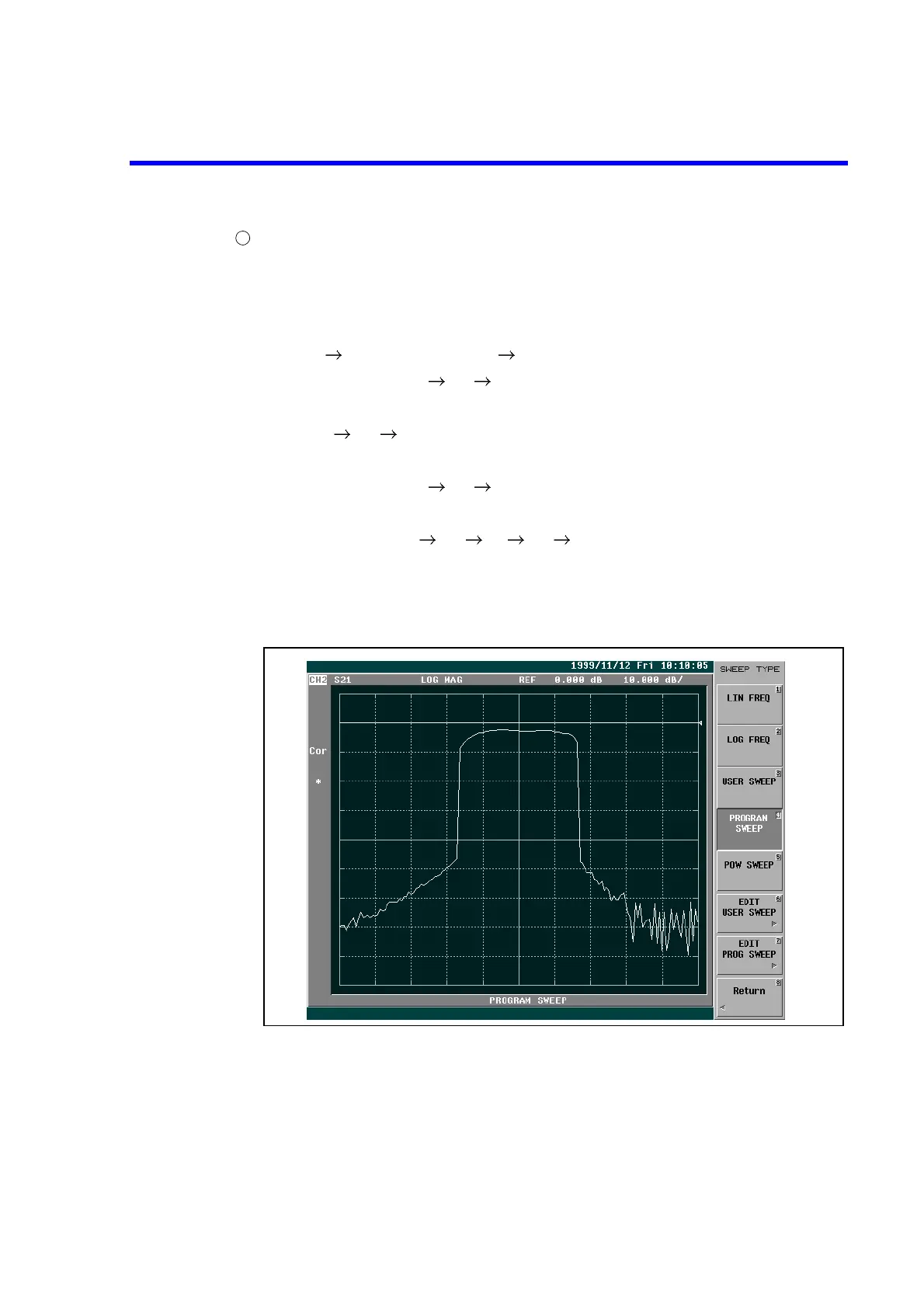

Figure 5-37 Change of the Program Sweep
