R3765/67G Series Network Analyzer Operation Manual

6.1 Output of Measured Data to the Plotter

6-4

The output result of the plotter is as follows.

Note : HP plotter sometimes makes error display such as the error lamp lights with

normal plotting.

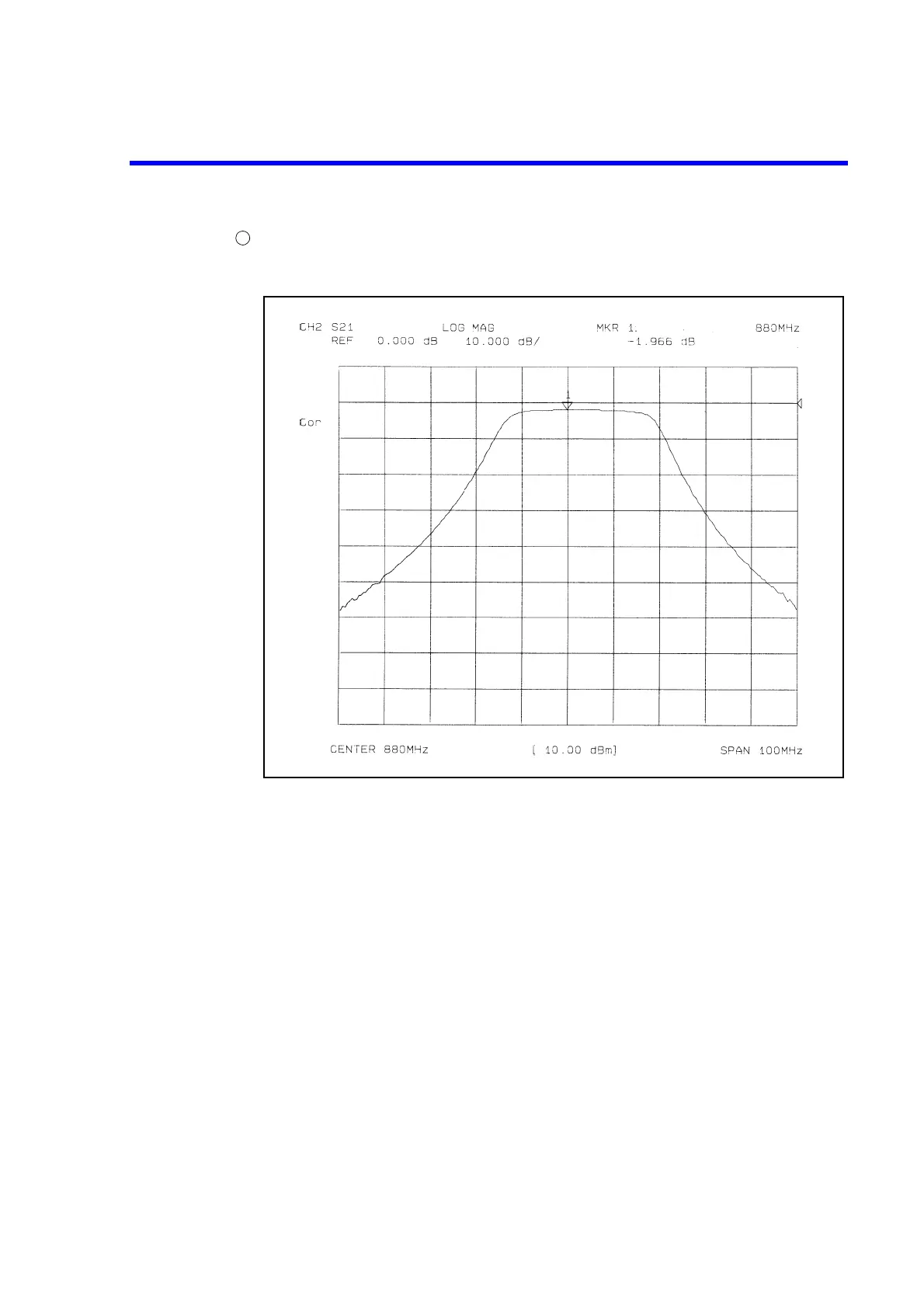

Figure 6-4 Output Result of the Plotter
