R3765/67G Series Network Analyzer Operation Manual
5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-13
Connect the load-standard to the test port 1 and acquire calibration data.
{S11(PORT 1) FWD:LOAD}
The display on the screen is as follows.

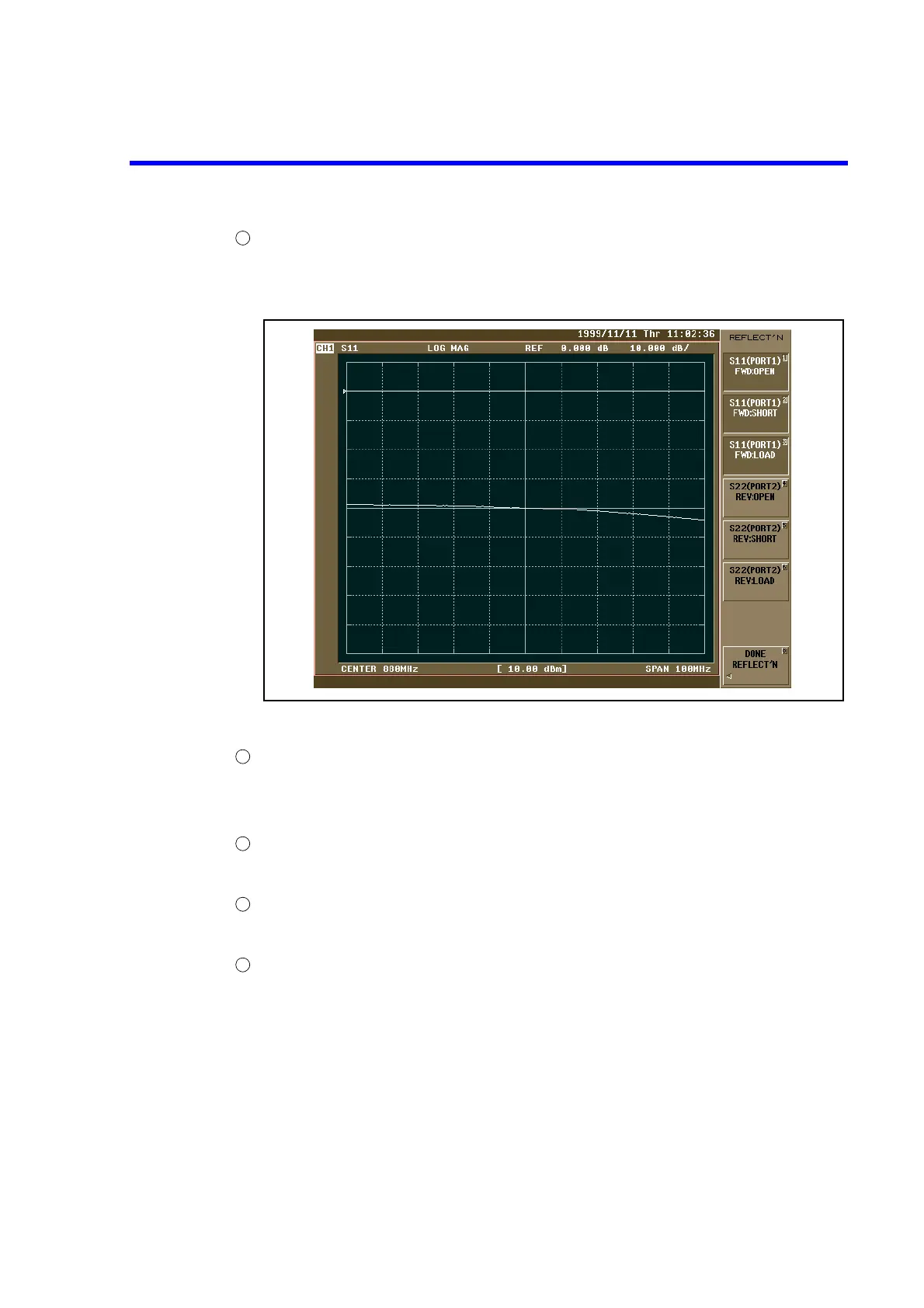

Figure 5-11 Calibration of 2-Port Reflection (Test Port/Load)
Calibrate the test port 2 in the same way as the test port 1.
Connect the open-standard to the test port 2 and acquire calibration data.
{S22(PORT 2) REV:OPEN}
Connect the short-standard to the test port 2 and acquire calibration data.
{S22(PORT 2) REV:SHORT}
Connect the load-standard to the test port 2 and acquire calibration data.
{S22(PORT 2) REV:LOAD}
Execute calibration of the reflection characteristic.
{DONE REFLECT’N}
Calibration data of each calibration standard can be acquired again before this key is
pressed.
Following the completion of the reflection characteristic calibration, returns to 2-port
full calibration menu.
6
7
8
9
10
To Next Page
