R3765/67G Series Network Analyzer Operation Manual
5.7 High-speed Measurement Using the Program Sweep Function
5-43
Calibrate frequency characteristic.
Remove DUT and connect the through adapter instead.
Normalize in this state.
[CAL] {NORMALIZE (THRU)}
Following the completion, return the connection to DUT (filter).

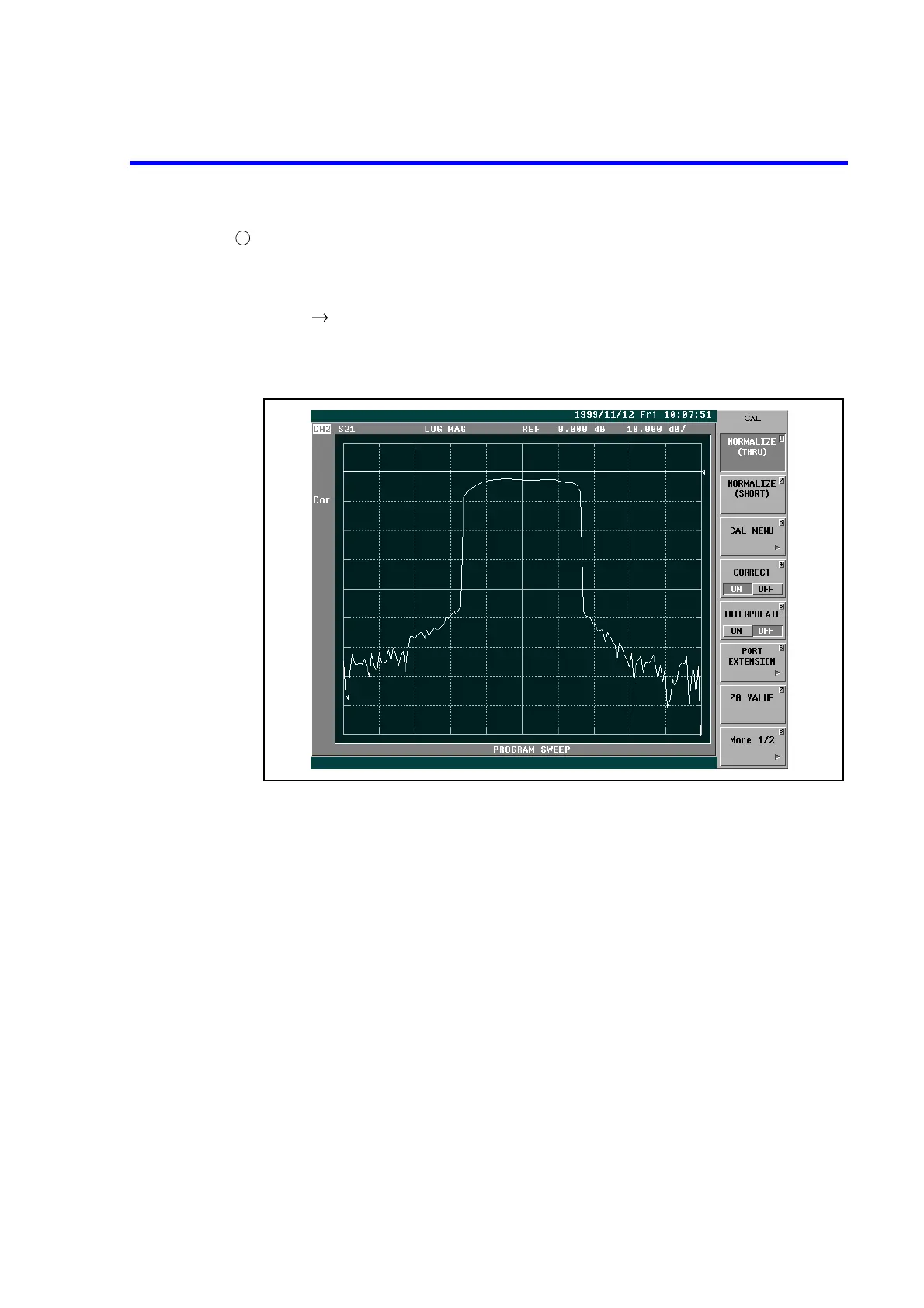

The display on the screen is as follows.
Figure 5-36 Execution of the Program Sweep
