R3765/67G Series Network Analyzer Operation Manual
5.1 Measurement of Transmission Characteristic (2 Trace Display)
5-8
Set channel 2 to the group delay display.
{DELAY} [SCALE] {AUTO SCALE}
The display on the screen is as follows.
This corresponds to the logarithmic magnitude/group delay measurement (overlap
display) of sub-section 5.1.1.

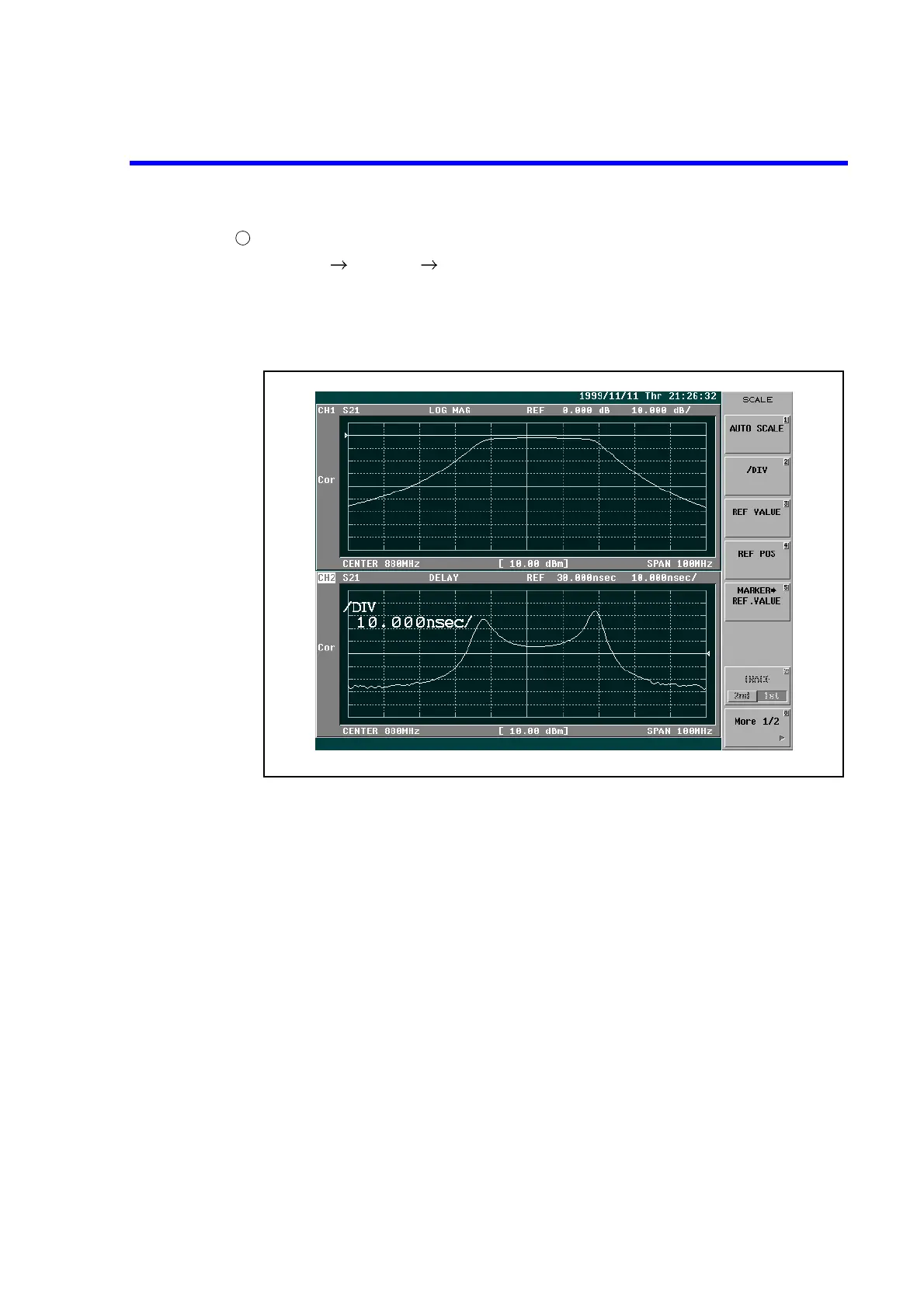

Figure 5-6 Logarithmic Magnitude/Group Delay Measurement (Split Display)
7
