R3765/67G Series Network Analyzer Operation Manual
10.3 Output Level Accuracy and Flatness
10-6
<Check> : Output level accuracy (under the output obtained in Step above at 50
MHz) ( 0.5dB within a temperature range of 23°C to ±5°C)
For OPT 11, OPT 13 or OPT 14 , the above output accuracy is guaran-
teed using TEST PORT 1.
For OPT 12 or OPT 13, add 5.7 dB (of the 50Ω to 75Ω conversion adapter
loss) to the output level.
For BG (OPT 12), -6.7 dBm ±0.5 dB
For CG (OPT 12 or 13), -11.7 dBm ±0.5 dB
10.3.3 Flatness
Preparations for measurements using OPT 12 and OPT 13 (acquiring frequency characteristic
data of the 50Ω to 75Ω converter adapter)

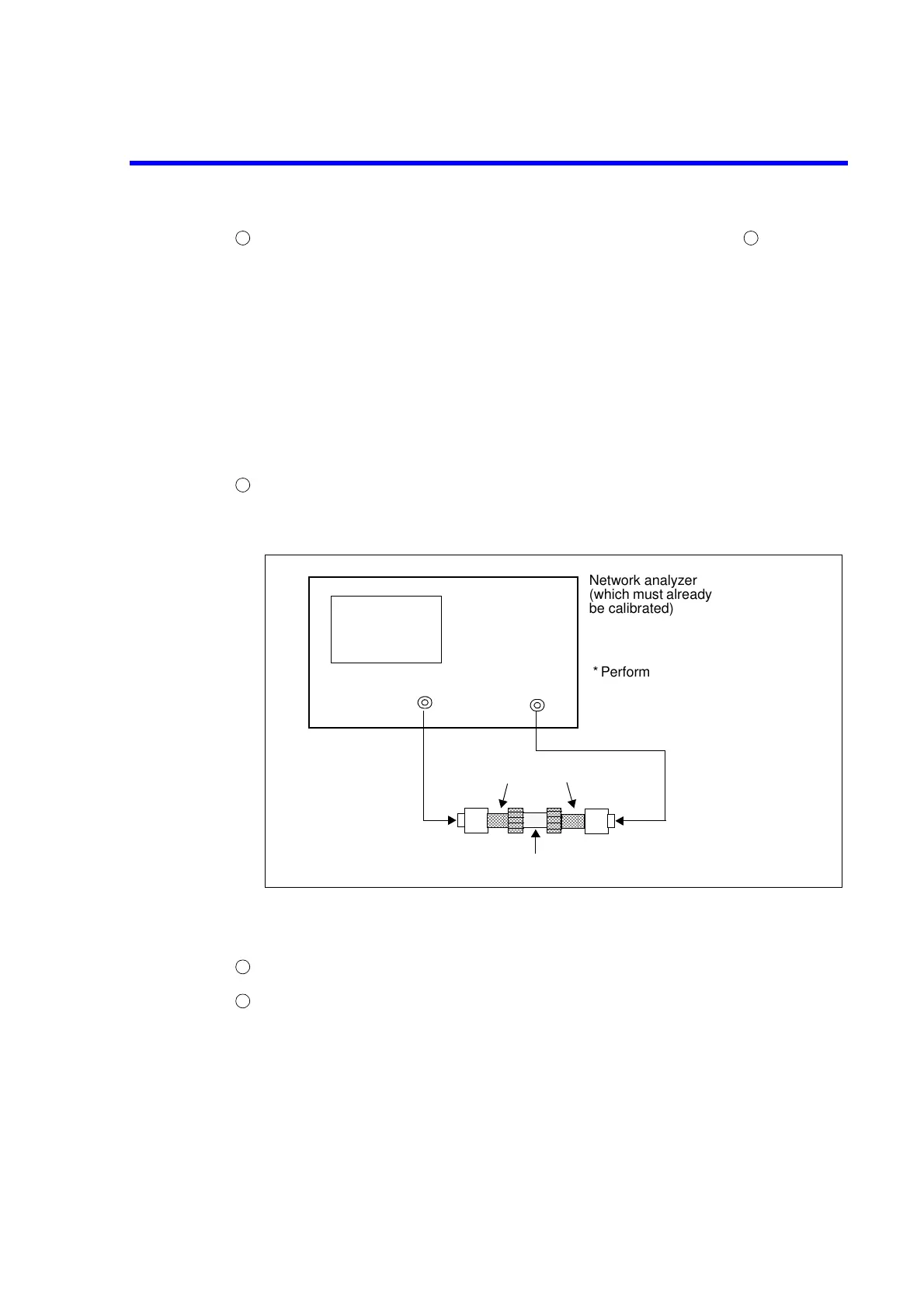

Measure the frequency characteristic of the 50Ω to 75Ω conversion adapter as shown
in Figure 10-3.
Define the peak to peak value of the frequency characteristics as X dB.
Figure 10-3 50Ω to 75Ω Conversion Adapter
Testing procedure
Calibrate the power meter to zero.
Set the R3765/67G series as follows.
Center frequency : 50MHz
Span : 0Hz
Output level : AG type 7 dBm (2 dBm for OPT 10)
BG type -3 dBm (-8 dBm for OPT 10, -1 dBm for OPT 12,
-6 dBm for OPT 10 + OPT 12)
CG type 0 dBm (-5 dBm for OPT 10, OPT 10 + OPT 11 or 14,
-6 dBm for OPT 12 or 13,
-11 dBm for OPT 10 + OPT 12 or 13)
Sweep mode : HOLD
4 2
1








Network analyzer
(which must already
be calibrated)
*Perform a 2 PORT FULL CAL
on the N-type terminal side
of the N-SMA converter
(Frequency range: 300 kHz to 3.8 GHz)
50
Ω
to 75
Ω
converter adapter
N-SMA
converter
N-SMA
converter
75
Ω
n-type through
1
2
