R3765/67G Series Network Analyzer Operation Manual
7.6 Marker Function
7-79
The stimulus and level reference points used to calculate the Q and Shaping factors
are unaffected regardless of the level reference points which are set by the {SEARCH
FROM [ ]} key.
Analysis methods for each setting are described as follows:

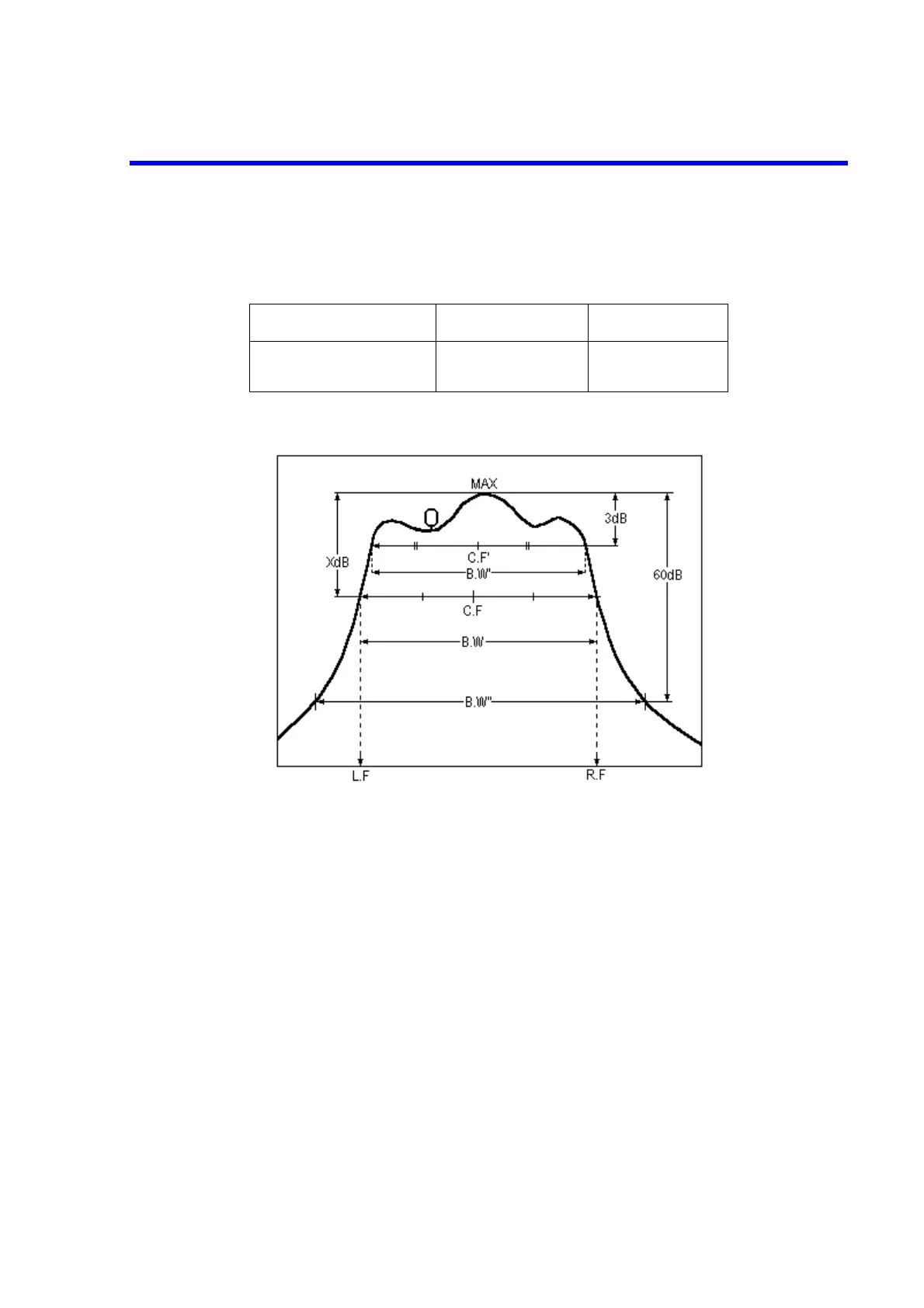

Figure 7-2 Band Pass Filter Analysis/MAX Reference
Stimulus reference Level reference
Band pass filter analysis
Notch filter analysis
MAX
MIN
MAX
MAX
1
