5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-12
Connect the short-standard to the test port 1 and acquire calibration data.
{S11(PORT 1) FWD:SHORT}
The display on the screen is as follows.

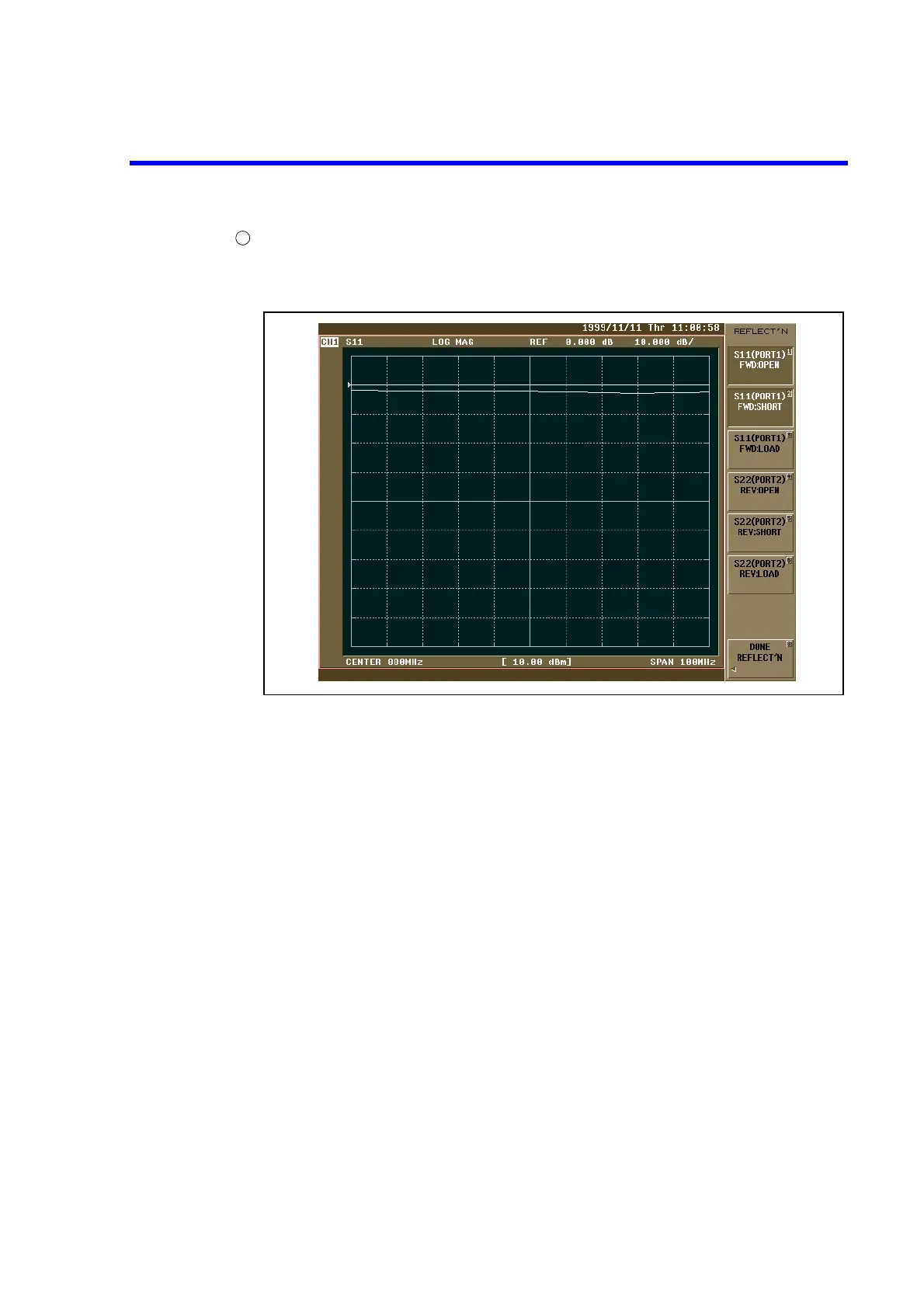

Figure 5-10 Calibration of 2-Port Reflection (Test Port/Short)
