R3765/67G Series Network Analyzer Operation Manual
5.8 GO/NG Measurement Using Limit Line Function
5-51
Change the lower limit values of segment 2 and segment 3 to -20dB.
{EDIT LIMIT LINE}
{SEGMENT} [2] [X1] {EDIT SEGMENT}
{LOWER LIMIT} [-] [1] [5] [X1]
{Return}
{SEGMENT} [3] [X1] {EDIT SEGMENT}
{LOWER LIMIT} [-] [1] [5] [X1]
{Return}
{DONE}

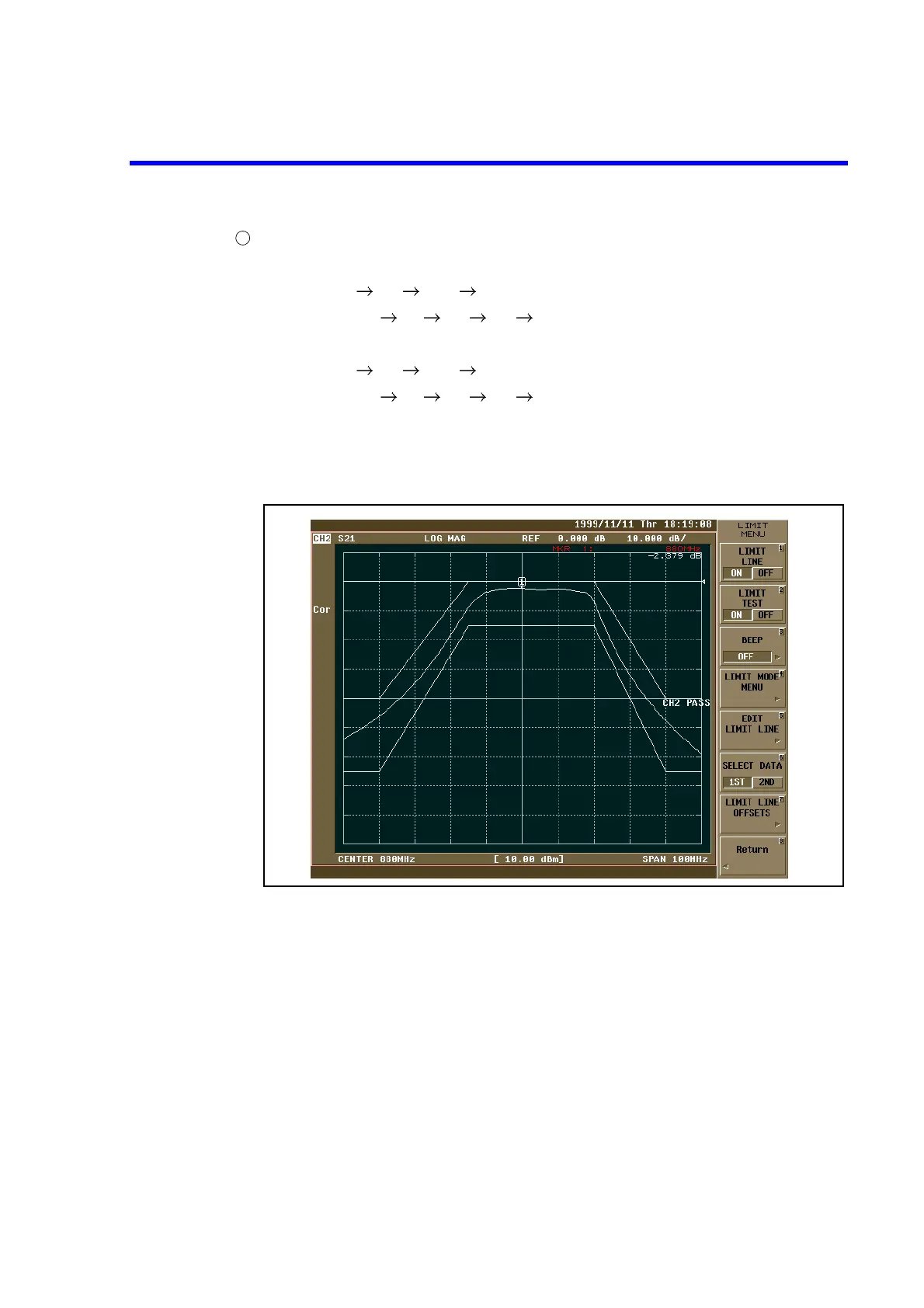

The display on the screen is as follows.
Figure 5-44 Change of Limit Line
