5.8 GO/NG Measurement Using Limit Line Function
5-49
SEGMENT 3 : {ADD SEGMENT}
{STIMULUS VALUE} [9] [0] [0] [MHz]
{UPPER LIMIT} [0] [X1]
{LOWER LIMIT} [-] [2] [0] [X1]
{Return}
SEGMENT 4 : {ADD SEGMENT}
{STIMULUS VALUE} [9] [2] [0] [MHz]
{UPPER LIMIT} [-] [4] [0] [X1]
{LOWER LIMIT} [-] [6] [5] [X1]
{Return}

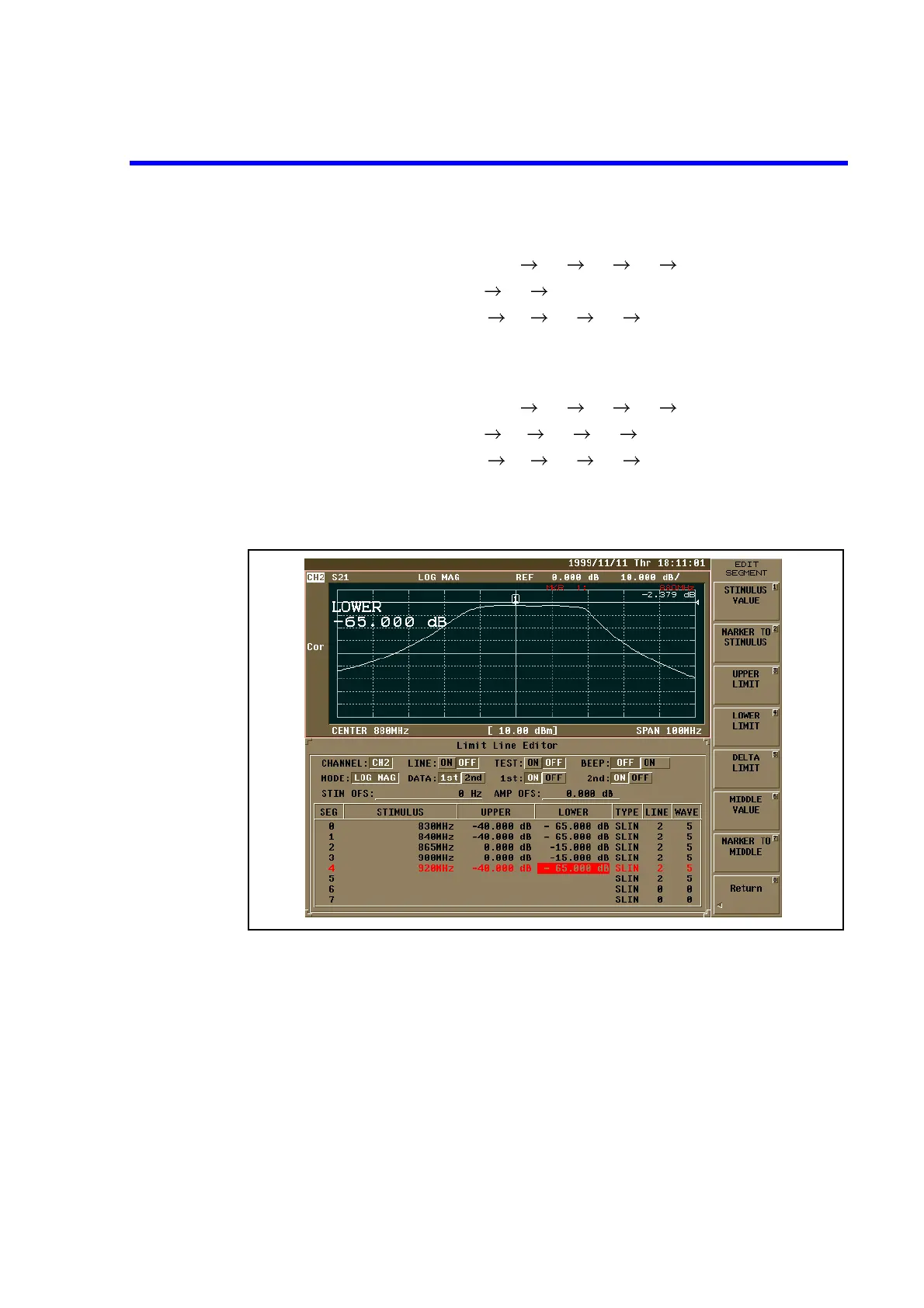

The display on the screen is as follows.
Figure 5-42 Setting of Each Segment
