R3765/67G Series Network Analyzer Operation Manual
10.8 Crosstalk
10-26
10.8.2 When R3765BG/67BG
Testing procedure
Setup the R3765BG/67BG as follows.

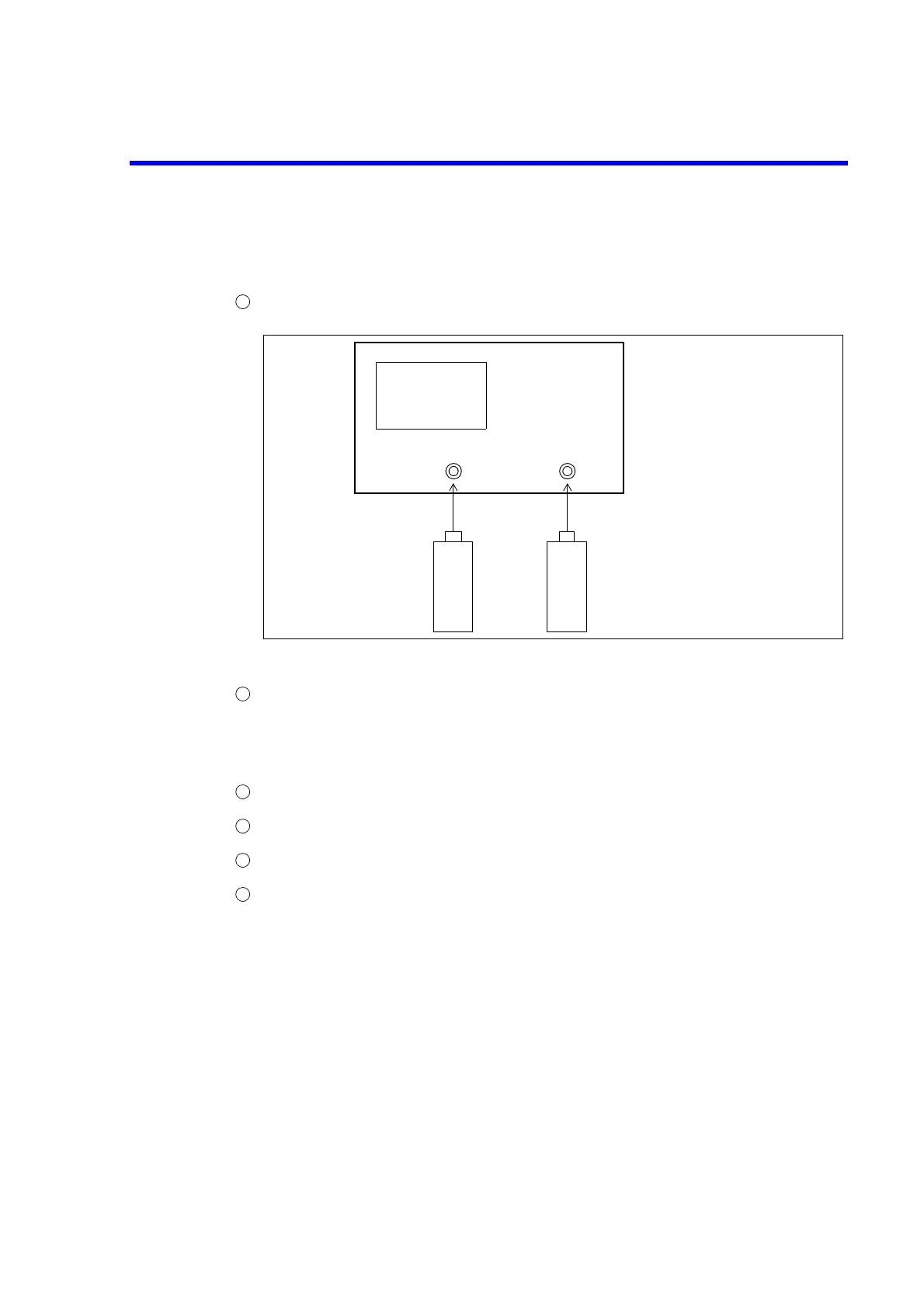

Figure 10-14 Setup (R3765BG/67BG)
Setup the R3765BG/67BG.
MEAS : TRANSMISSION
RBW : 100Hz
Average : 16 times
Connect the short standard to TEST PORT 1.
Connect the load standard to TEST PORT 2.
Read the crosstalk value from the trace data.
<Check> : Crosstalk (only about TEST PORT 2)
300kHz to 40MHz : -90dB or less
40MHz to 2.6GHz : -100dB or less
2.6GHz to 3.8GHz : -90dB or less
3.8GHz to 5.0GHz : -80dB or less (R3767BG only)
5.0GHz to 8.0GHz : -70dB or less (R3767BG only)
OPT 12
300kHz to 40MHz : -85dB or less
40MHz to 3.8GHz : -90dB or less
1
TEST PORT 1 TEST PORT 2
R3765BG/67BG
SHORT standard LOAD standard
2
3
4
5
6
