5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display Mode)
5-10
5.2 Transmission/Reflection Characteristic Measurement (Four Screen Display
Mode)
5.2.1 Setup
Here explains how to measure all S parameters with four screen display.
S parameter measurement is possible only when CG type is used.
Four screen display is possible for either AG type or BG type.
• 880MHz band-pass filter is used as DUT.
Setup.
CG type

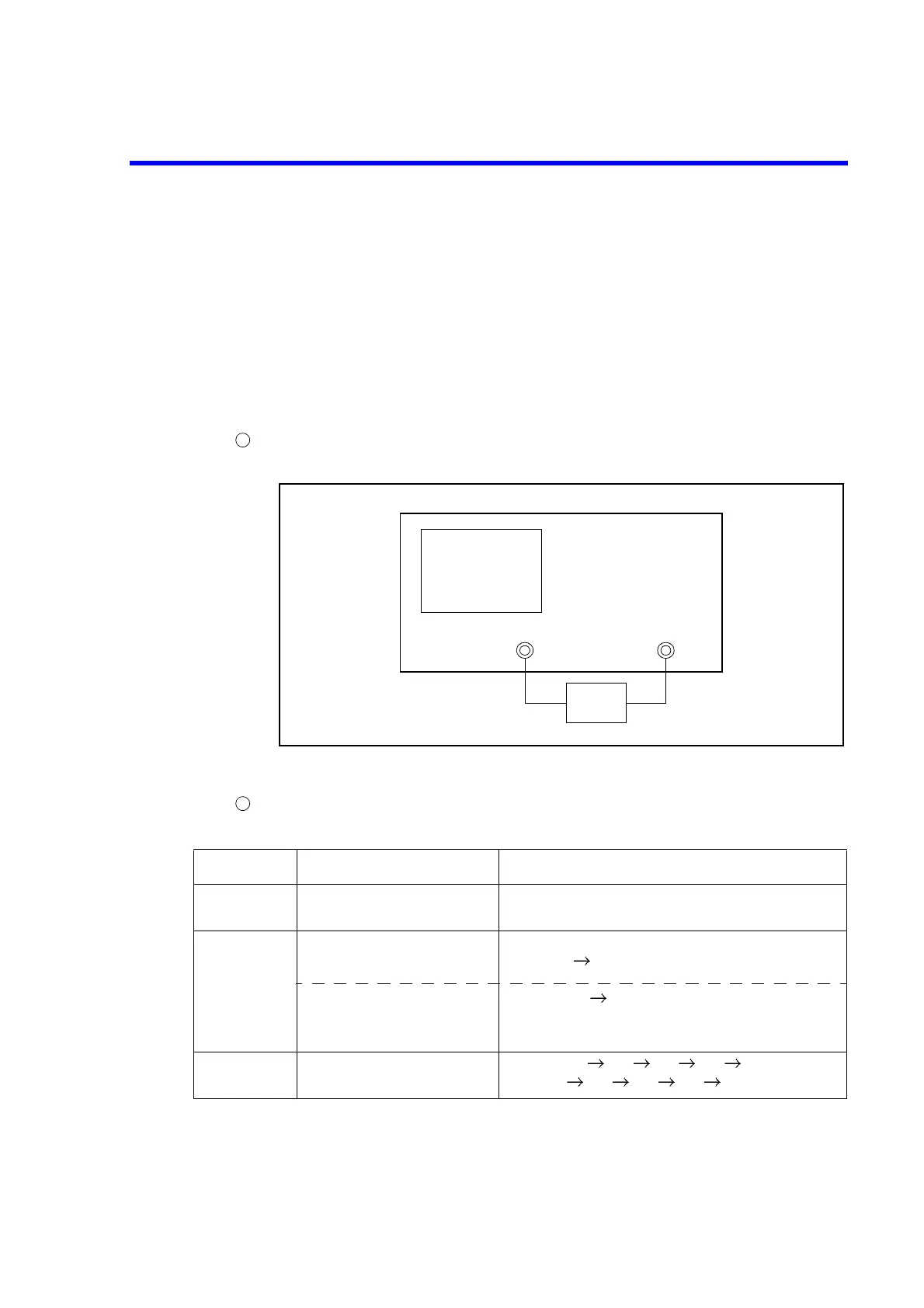

Figure 5-8 Setup of the Reflection Characteristic Measurement
Setup the R3765/67G series as follows.
First, preset by pressing [PRESET].
Note: OPT11 or OPT14 uses a different [MEAS] menu.
For more information, refer to the description on page 7-10.
Block name Setting Key operation
ACTIVE
CHANNEL
Set the channel to 1. [CH 1] (Initial setup)
RESPONSE Select the input port in the
receiver part.
Set the measurement
format to magnitude (log
display).
CG type
[MEAS] {S11 REFL FWD} (Initial setup)
[FORMAT] {LOG MAG} (Initial setup)
STIMULUS Center frequency 880MHz
Span frequency 100MHz
[CENTER] [8] [8] [0] [MHz]
[SPAN] [1] [0] [0] [MHz]
1
TEST PORT 2TEST PORT 1
DUT
R3765CG/67CG
2
