R3765/67G Series Network Analyzer Operation Manual
5.1 Measurement of Transmission Characteristic (2 Trace Display)
5-5
Linear magnitude/phase measurement
Set the format to linear magnitude (the first trace)/phase (the second trace)
measurement.
[FORMAT] {LIN MAG & PHASE}
The scale can be changed in the same way as & .
[SCALE] {AUTO SCALE}
{TRACE 2nd/1st} {AUTO SCALE}
The display on the screen is as follows.

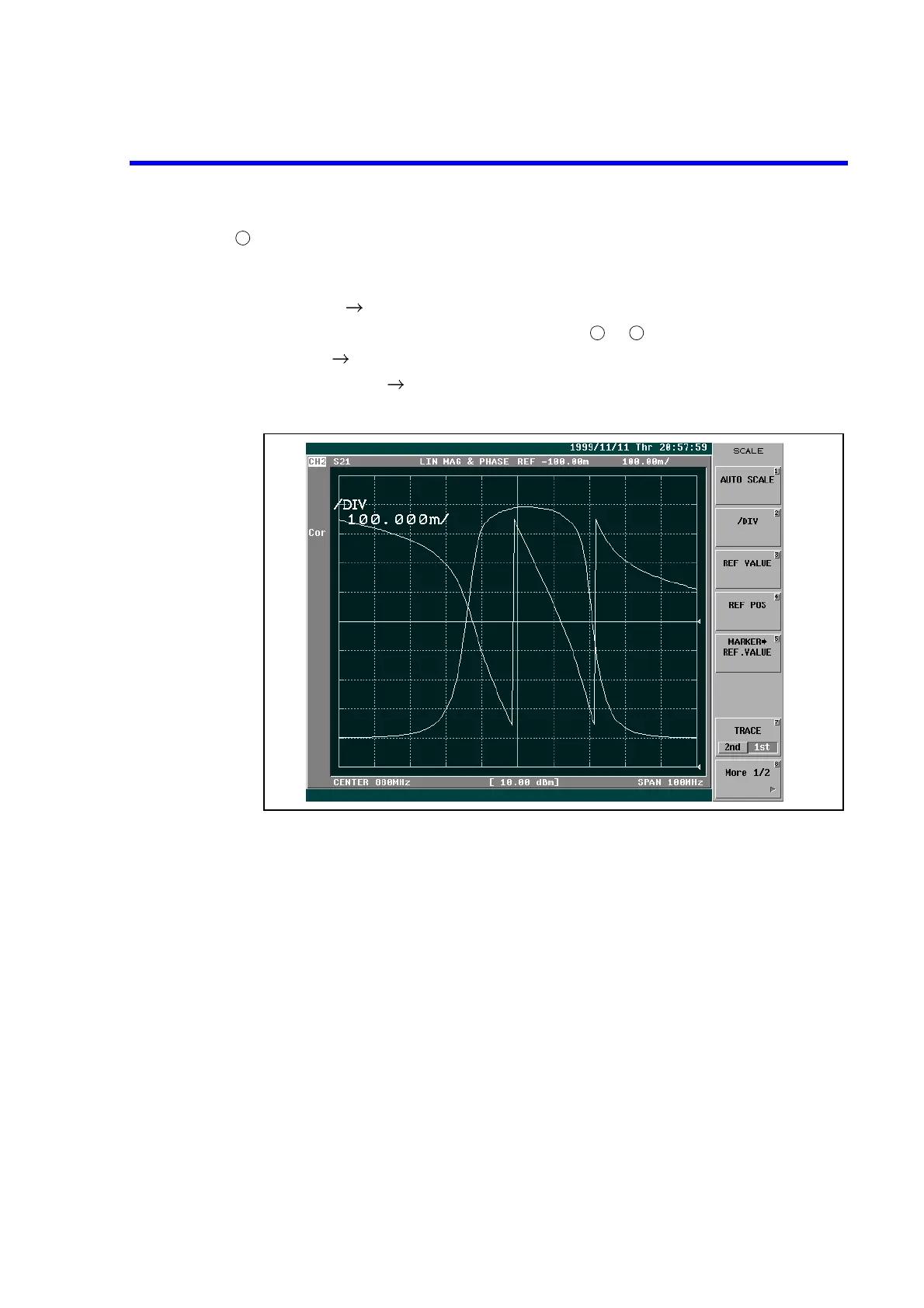

Figure 5-4 Linear Magnitude/Phase Measurement (Overlap Display)
7
4 5
