R3765/67G Series Network Analyzer Operation Manual
3.6 Measurement Samples of Simple Reflection Characteristics
3-20
3.6 Measurement Samples of Simple Reflection Characteristics
3.6.1 Setup
The R3765/67G series is setup as shown in Figure 3-17 and Figure 3-18.
(1) AG type
In order to measure the reflection characteristics with AG type, directive bridge to separate
reflection wave and incident wave from DUT to measure are necessary.

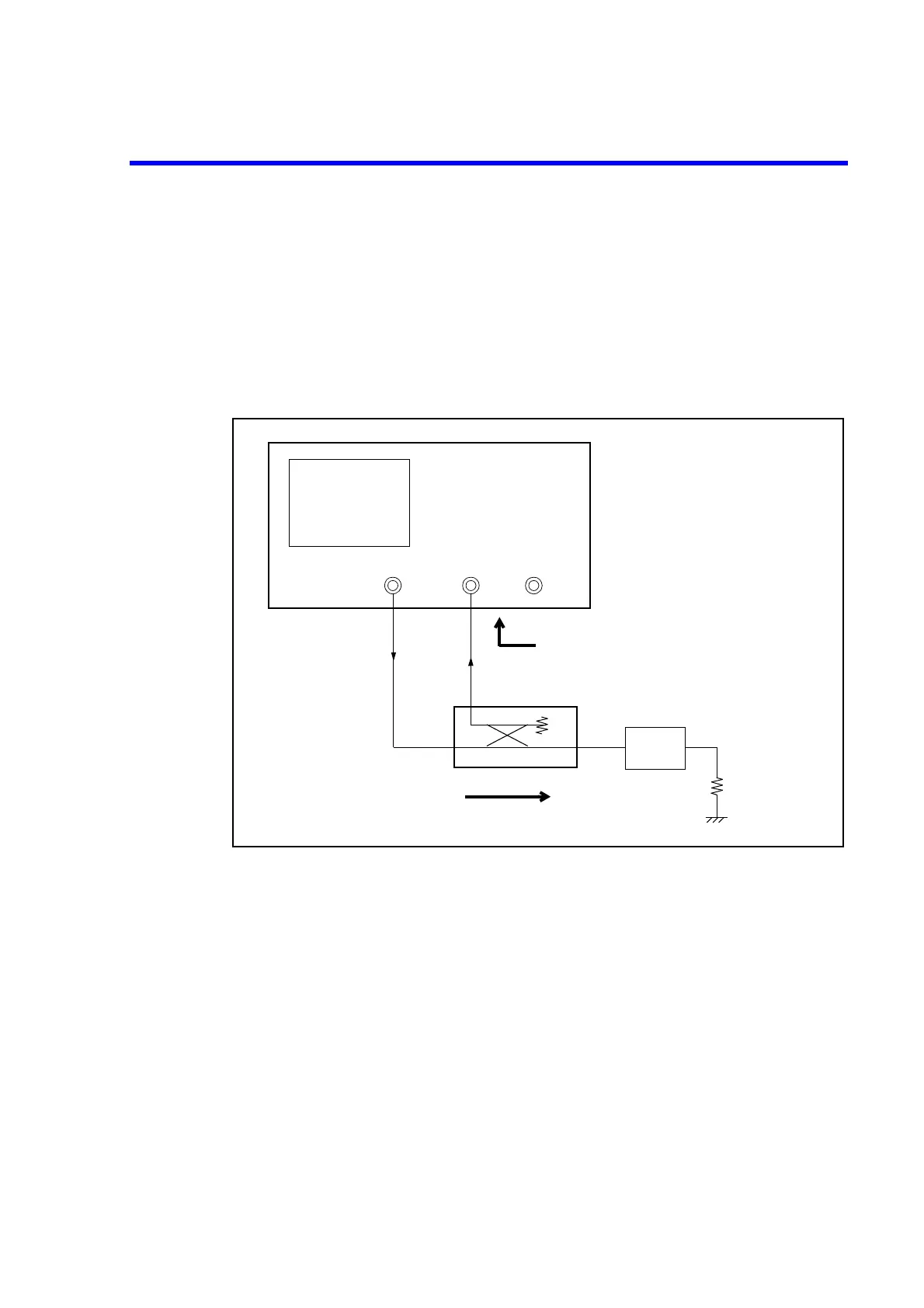

Figure 3-17 Setup for Reflection Characteristic Measurement (AG type)
In addition, transmission or reflection characteristics within a frequency range of 300 kHz
to 3.6 GHz are easily measured using the R3961B S-parameter Test Set.
B PORTSOURCE
DUT
A PORT
Directive bridge
Incident signal
TEST
PORT
50Ω Termination
Reflection signal
R3765AG/67AG
