R3765/67G Series Network Analyzer Operation Manual
3.6 Measurement Samples of Simple Reflection Characteristics
3-29
Impedance (Smith chart setting) measurement
The following operation is performed to make Smith chart.
[FORMAT] {SMITH (R+jX)}

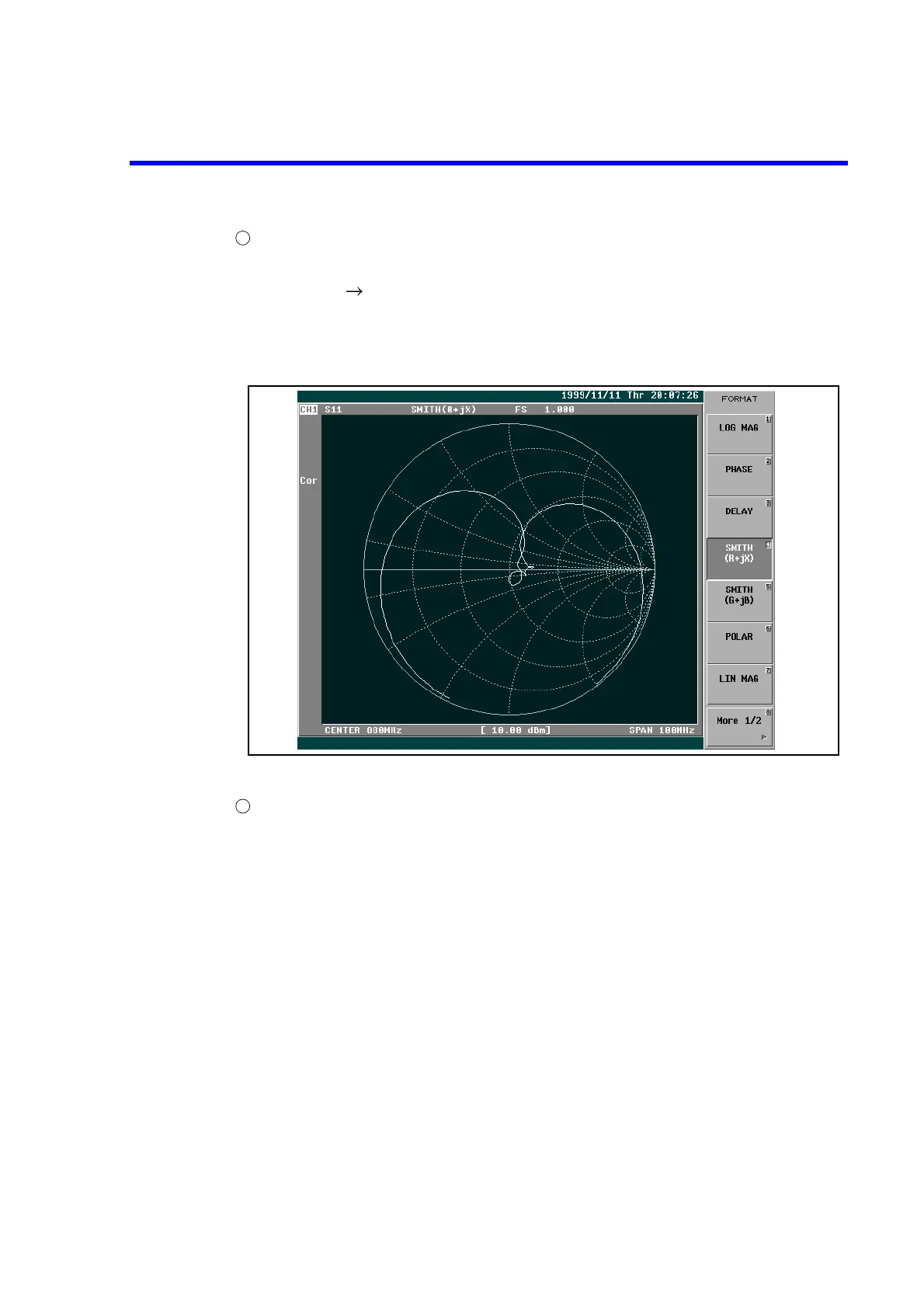

The display on the screen is as follows.
It shows that the impedance is inductive in the upper half circle of Smith chart and it is
capacitive in the lower half circle.
Figure 3-26 Impedance Measurement
The following operation is performed to convert to admittance chart.
Pressing [FORMAT] & {SMITH (G+jB)} displays the converted result.
