R3765/67G Series Network Analyzer Operation Manual
3.3 How to Read the Display Screen
3-7
3.3 How to Read the Display Screen

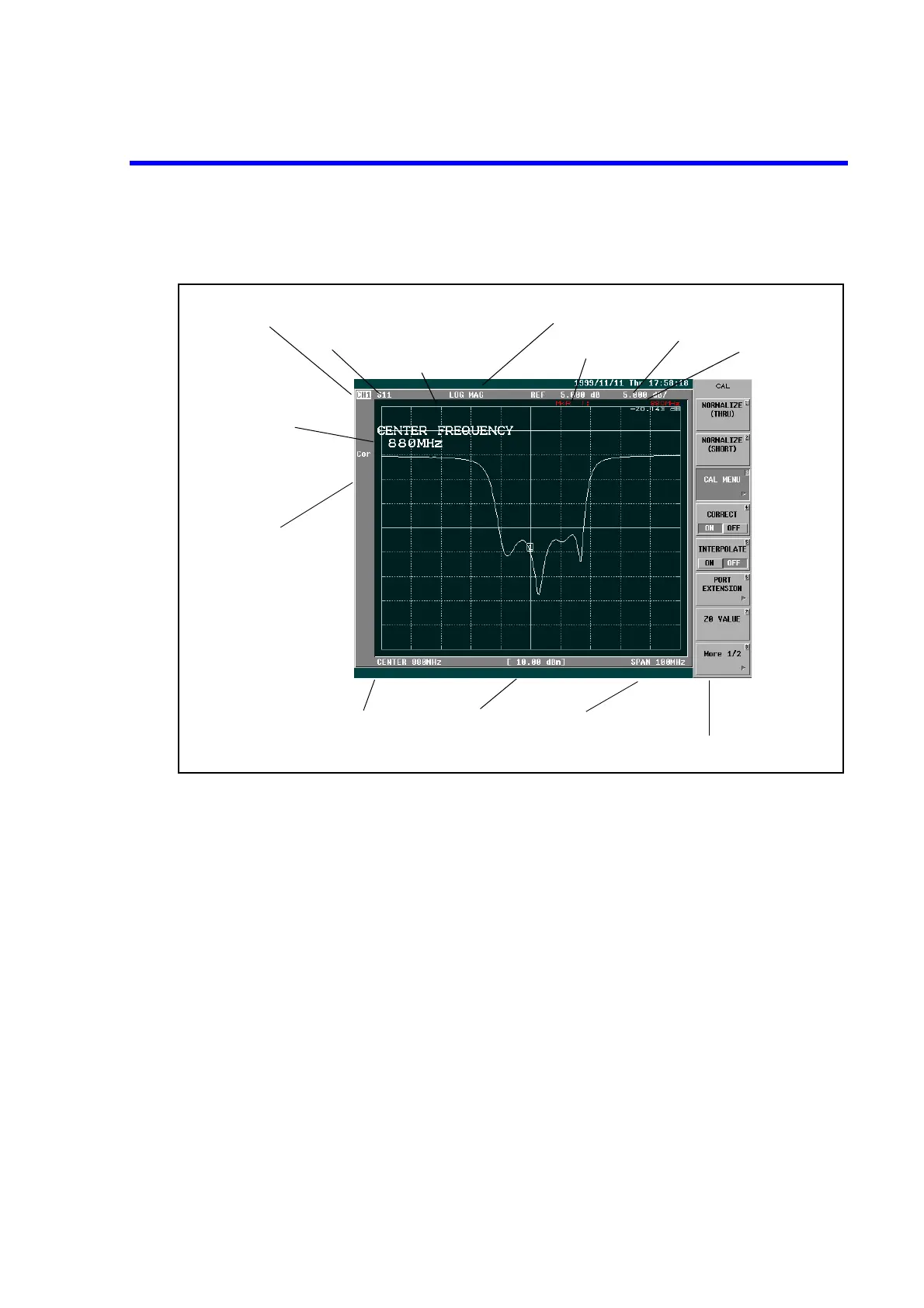

Figure 3-6 Annotation on the Screen (Annotation Character)
Soft key menu
Status area
Scale reference
Stop/Span
Input port
Scale/DIV
Format
Active area
Channel (Active channel is displayed inversely.)
Active marker
Power/CW
Date
Start/Center
