R3765/67G Series Network Analyzer Operation Manual
3.6 Measurement Samples of Simple Reflection Characteristics
3-24
Connect the load standard to the test port and acquire the calibration data.
{LOAD}

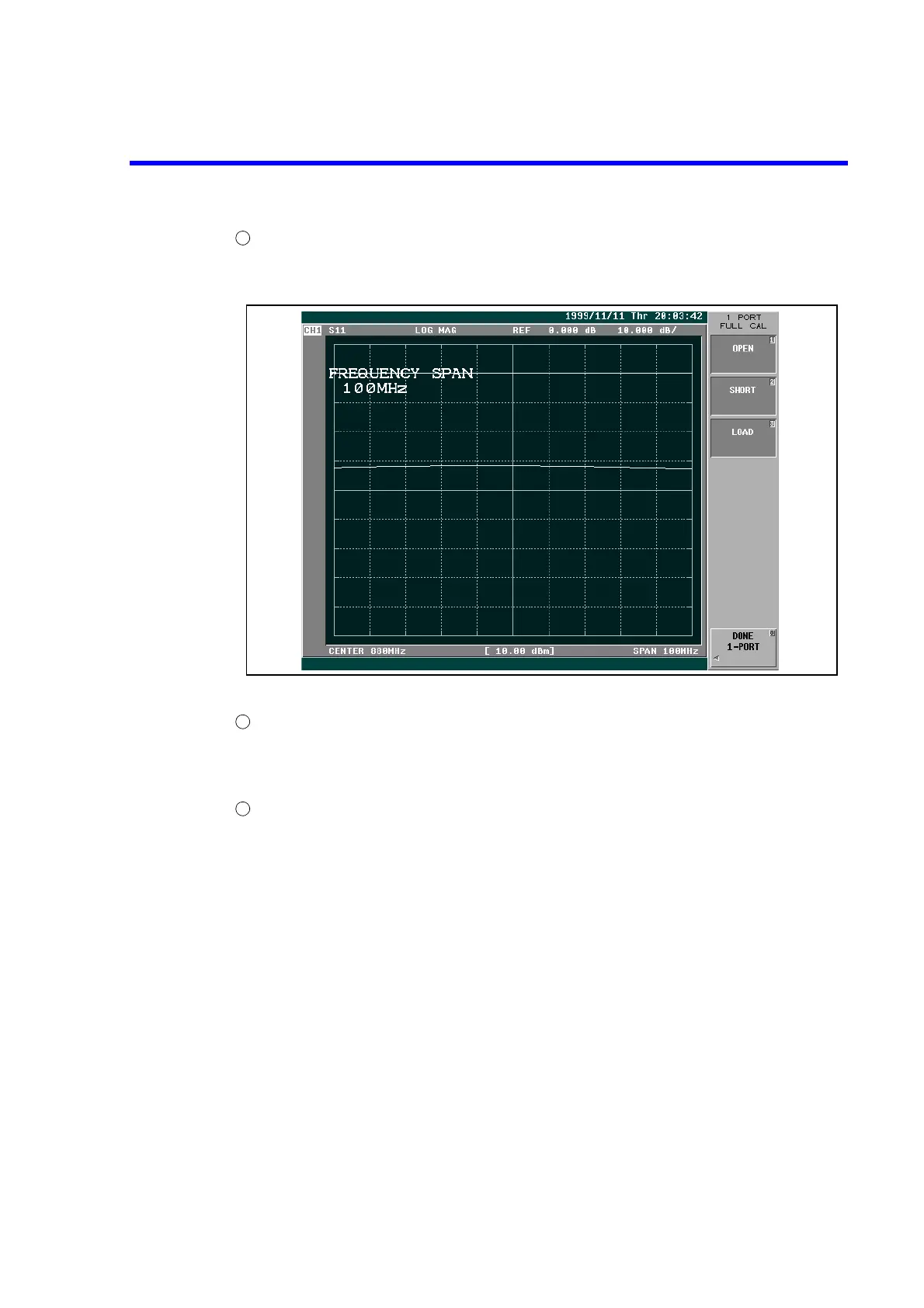

The display on the screen is as follows.
Figure 3-21 1-Port Full Calibration (Load)
Execute the calibration and end.
{DONE 1-PORT}
The calibration data becomes effective automatically.
Following the completion, return the connection to DUT (an example: filter).
