R3765/67G Series Network Analyzer Operation Manual
3.2 Operation Keys
3-5
The soft key corresponding to the blank soft key menu is invalid.
Some soft key menu has more than one page, and some has hierarchy.
• When the soft key menu has more than one page
Pressing {More 1/2} moves the page to the next.
Pressing {More 2/2} returns the page to the previous.
• When the soft key menu has hierarchy
Pressing {Return} returns to the previous hierarchy menu.
• When the menu is of hierarchy of calibration data acquisition
In the case that more than one data acquisition is required for the calibration like 1 port
full calibration.
Pressing {DONE 1-PORT} without acquiring each data can return to the previous
hierarchy menu forcefully.
In order to move it to the top menu from the middle of a series of soft key menu, press
[CAL] key if the menu is of CAL. Ditto for others.
For example, pressing [MENU] key to invoke soft key menu of MENU from the situation
that the soft key menu of CAL is displayed, and continuously pressing [CAL] key
redisplays the same CAL soft key menu as the one before [MENU] key pressed.
(3) Data setting
When a [panel key] and a {soft key} is pressed to set data, the function of the pressed key
and the current set conditions are displayed at upper left on the screen.
This display area is called “active area”. Set data, checking the values displayed in the
active area.

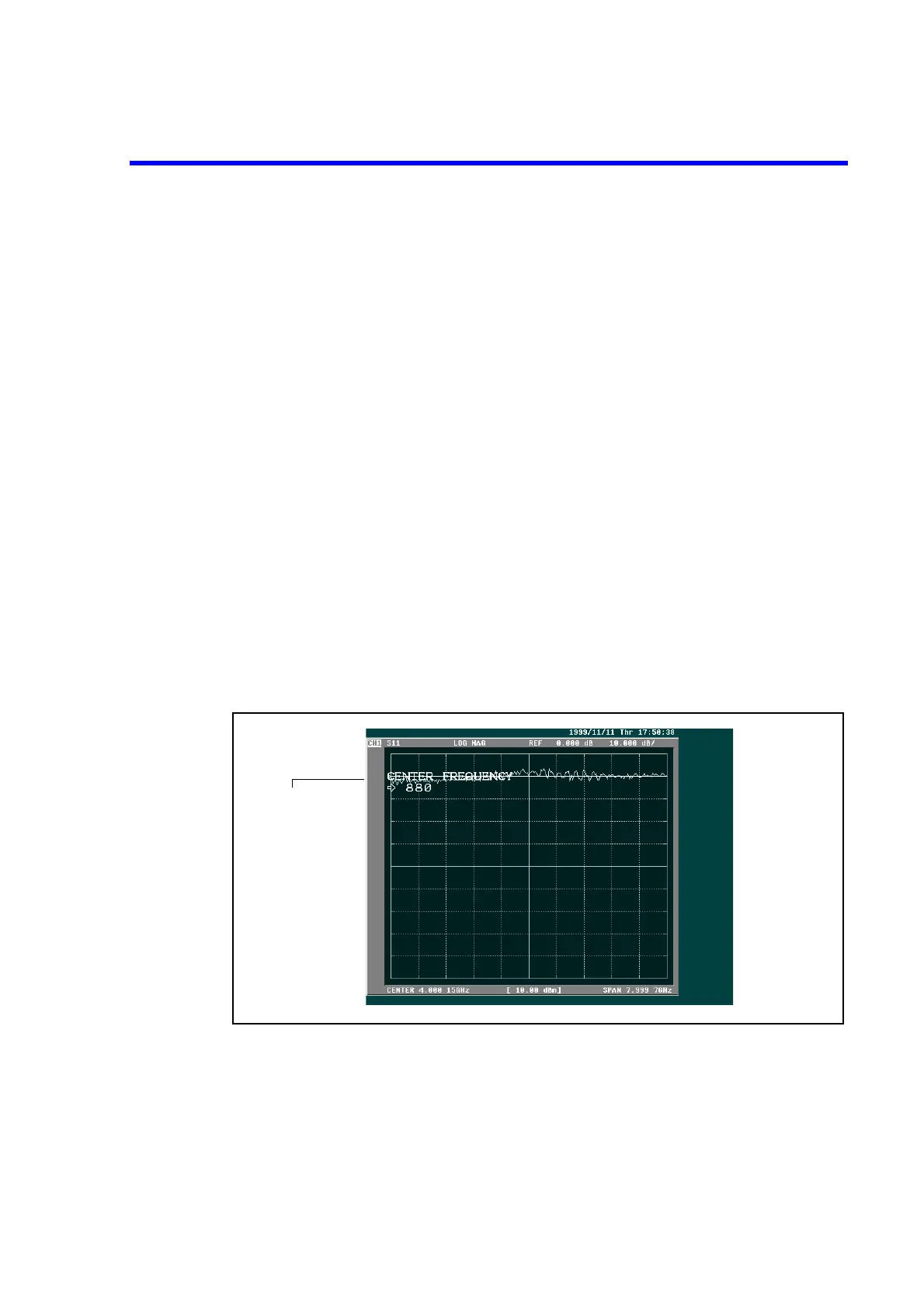

Figure 3-4 Displayed Active Area
Active area
