5.7 High-speed Measurement Using the Program Sweep Function
5-40
5.7 High-speed Measurement Using the Program Sweep Function
Here explains about the program sweeping function that can execute sweeping according to the
list of already specified sweeping segment.
This function is useful to shorten measurement time or to improve dynamic range.
• 880MHz band-pass filter is used as DUT.
Setup (filter connection) (refer to sub-section 3.5.1) and preset (refer to sub-section
4.4.1).
Press [CH 2] to set the active channel to 2.
Set start-frequency and stop-frequency.
[CENTER] [8] [8] [0] [MHz]
[SPAN] [2] [0] [0] [MHz]
Set the measurement format to magnitude (log display).
[FORMAT] {LOG MAG}
Calibration is performed following the completion of program sweeping edition.
The display on the screen is as follows.

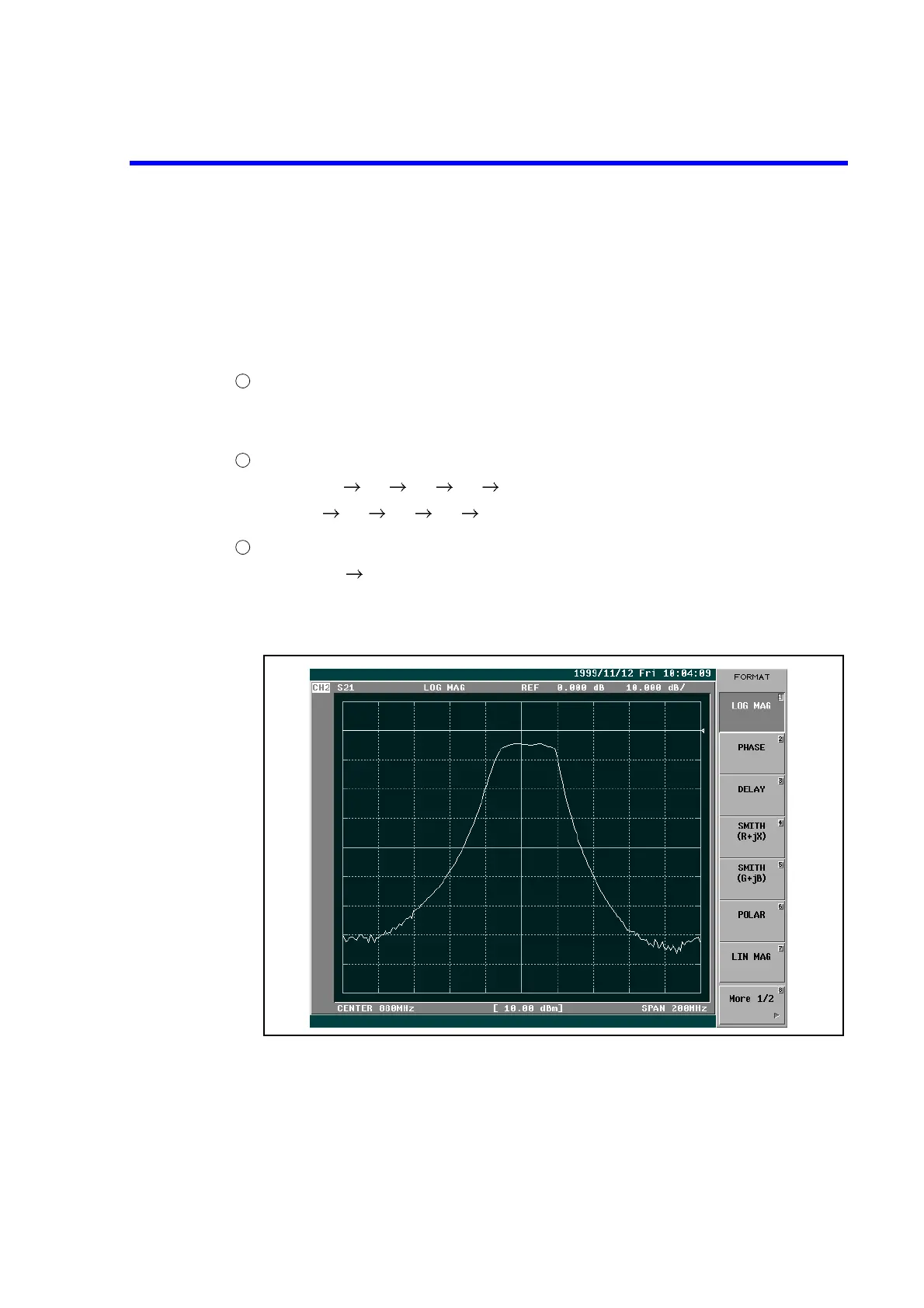

Figure 5-34 Linear Sweeping
1
2
3
