R3765/67G Series Network Analyzer Operation Manual
3.6 Measurement Samples of Simple Reflection Characteristics
3-23
Connect the open standard to the test port and acquire the calibration data.
{OPEN}
The display on the screen is as follows.

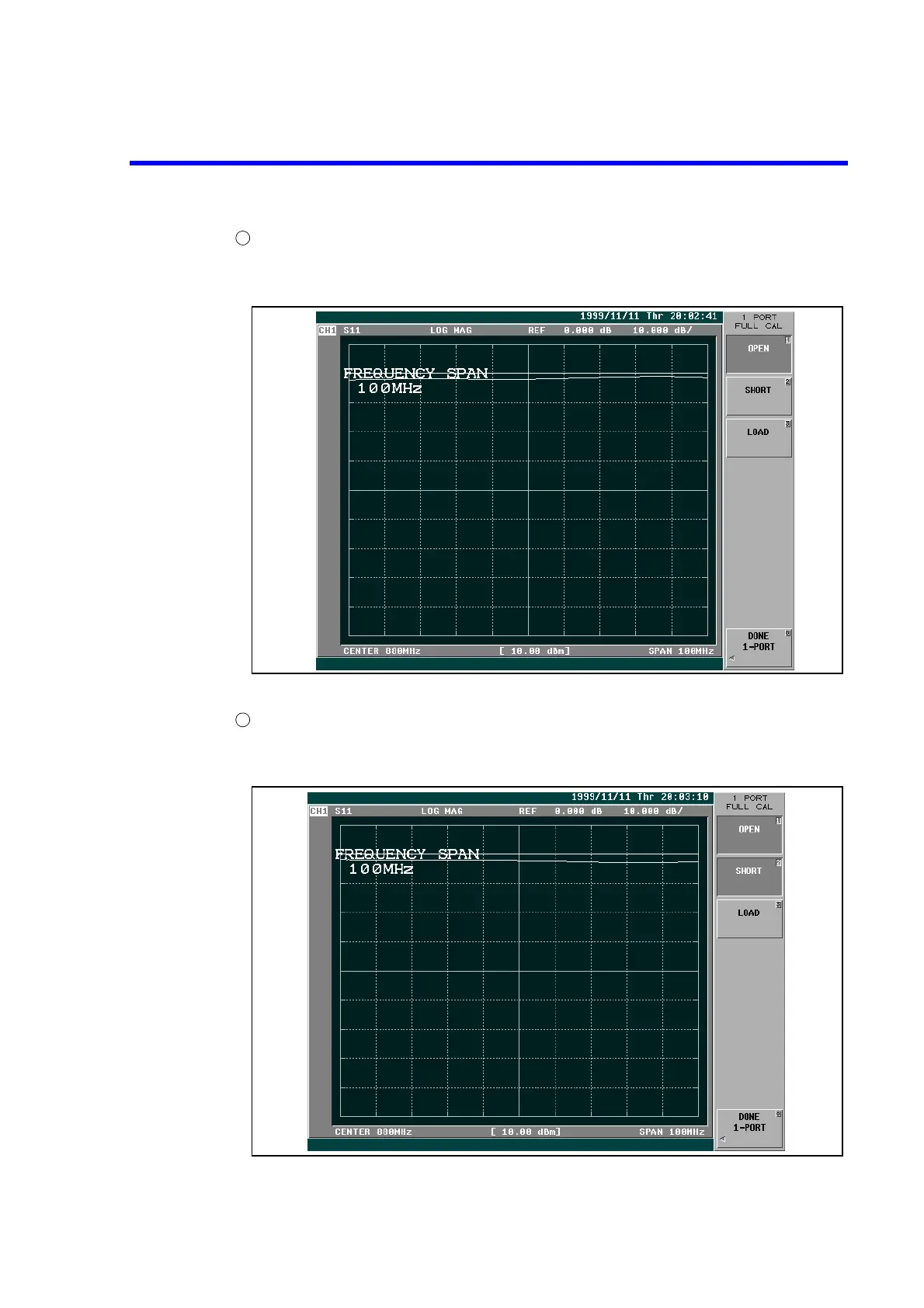

Figure 3-19 1-Port Full Calibration (Open)
Connect the short standard to the test port and acquire the calibration data.
{SHORT}
The display on the screen is as follows.
Figure 3-20 1-Port Full Calibration (Short)
3
4
