5.6 Measurement of Electrical Length
5-37
Change the measurement format.
[FORMAT] {PHASE}
The display on the screen is shown in the Figure 5-31.
Thus the phase characteristic shows that DUT has electrical length, by which the
phase decreases linearly.
The electrical length of this DUT can be measured by correcting the electrical length.

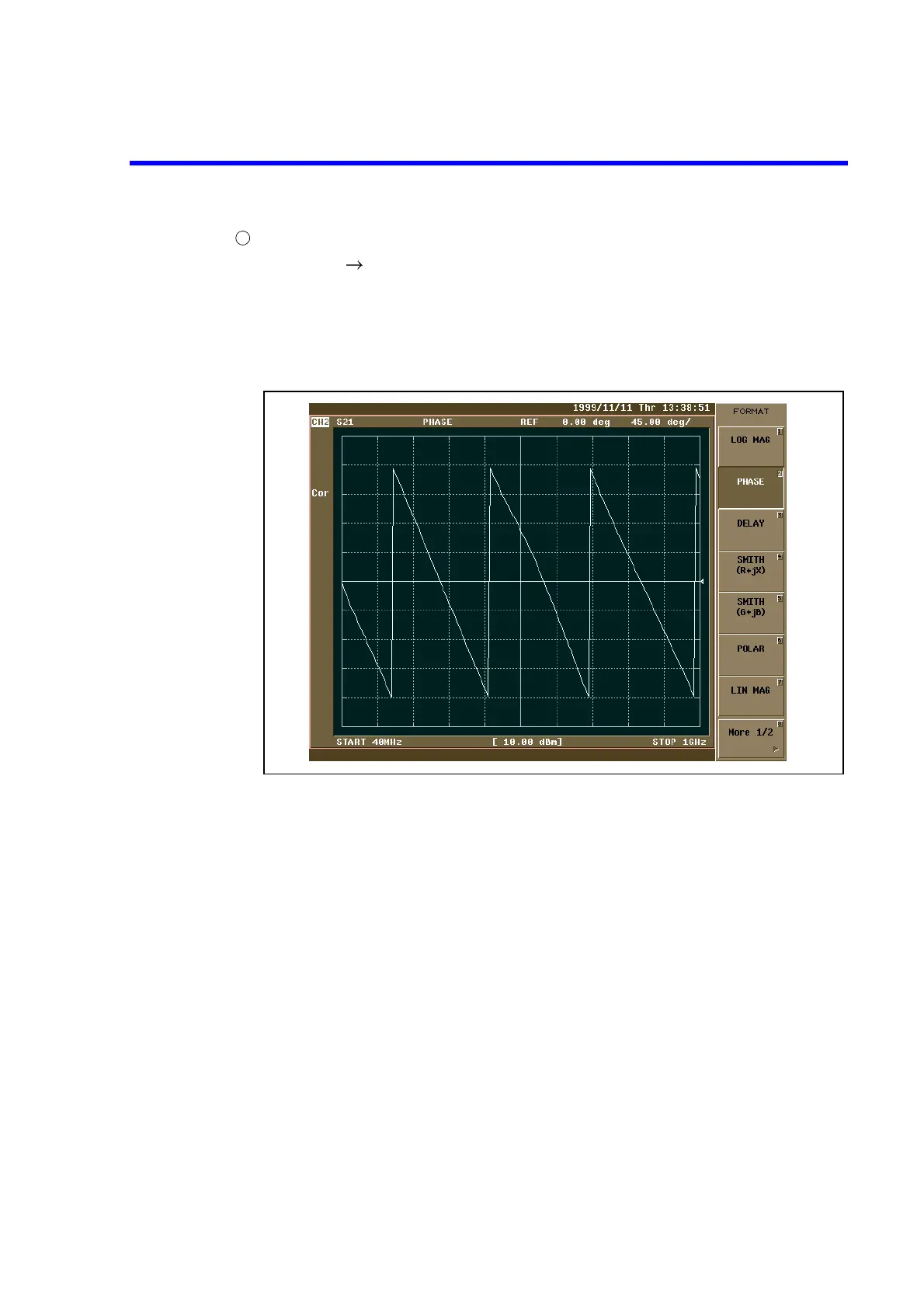

Figure 5-31 Electrical Length of Cable
